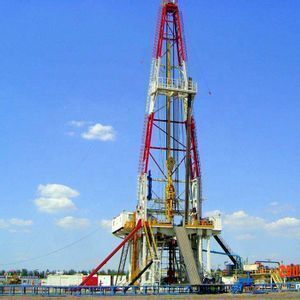

API certification ZJ70/4500LDB skid-mounted electric oil rotary drilling rig details
Nominal drilling depth (114mm DP):4500 (14760)~ 7000 (23000);Applicable Industries:Energy & Mining;
Warranty:1 year;Package Preview:;
Port:China Main Port;Brand Name:JT;
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;Rated power of drawworks kW(hp):1470 (2000);
Type:Rotary Drilling Rig;Dia. of opening on rotary tables mm(in):952.5 (37 1/2);
Max. hook load kN(lbf):4500 (1011,600);Unit power of a drilling pump kW(hp):1180 (1600);
Certification:API;Supply Ability:100 Set/Sets per Year;
Weight:KG;Dimension(L*W*H):Irregular;
Usage:Oil Well;Model Number:ZJ70/4500LDB;
Packaging Detail:standard;Condition:New;
Power Type:Diesel;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dia. of drilling wire lines mm(in):38 (1 1/2);Voltage:380V/460V;
Drill floor height m(ft):9 (30) ; 10.5(35);Place of Origin:Shandong China;

API certification ZJ70/4500LDB ZJ70/4500LDB skid-mounted electric oil rotary drilling rig

Product Description

Brief Introduction

Rigs are used in oil and gas exploration and development.   Products comply with API Spec 4F, 7K, 8A, Models and Basic Parameters of Rigs (SY/T5609-1999) and related standards, and API symbol occupancy permit has been obtained.

Technical Performance & Characteristics

  DC and drive drilling rigs are driven by AC-SCR-DC and AC-DC-AC respectively so as to achieve intelligent control over the rigs. A rig is powered by a diesel generator set, and a drawworks is provided with a hydraulic brake pad and an auxiliary Eaton brake. Winches, drilling pumps, and rotary tables all adopt independent electric drive and stepless speed regulation (rotary tables may also adopt combination drive). The derrick is in K-shaped structure, and the base in swing-up or case block type structure, both of which (if any, the latter shall be of swing up type) are installed at a lower position and hoisted as a whole. The drilling control room imposes centralized control so that rigs are delivered automatically. An AC variable-frequency drilling rig provides dynamic braking.

Technical parameters

Packaging & Shipping

Packaging and shipping detail

1.The spare parts in iron box,
2.The big part will naked packing in the container

3.According the order.
