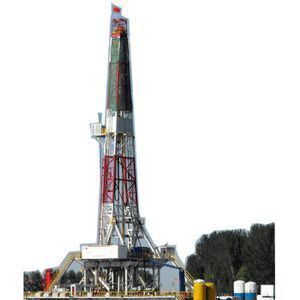

API certification ZJ 30 skid-mounted electric rotary oil drilling rig

Product details

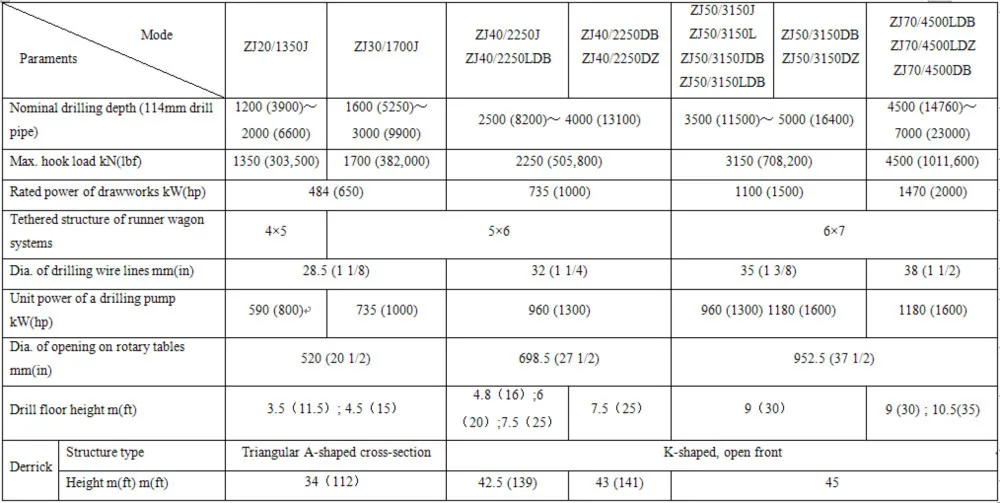

Power Type:Diesel;Voltage:380V/460V;
Dia. of opening on rotary tables mm(in):520 (20 1/2);Dia. of drilling wire lines mm(in):28.5 (1 1/8);
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;Unit power of a drilling pump kW(hp):735 (1000);
Nominal drilling depth (114mm DP):1600 (5250)~ 3000 (9900);Rated power of drawworks kW(hp):484 (650);
Usage:Oil Well;Packaging Detail:standard;
Certification:API;Package Preview:;
Max. hook load kN(lbf):1700 (382,000);Condition:New;
Brand Name:JT;Applicable Industries:Energy & Mining;
Weight:20--100t;Drill floor height m(ft):3.5(11.5), 4.5(15);
Model Number:ZJ30;Supply Ability:10 Set/Sets per Year;
Dimension(L*W*H):Size;Port:China Main Port;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Type:Rotary Drilling Rig;
Warranty:1 year;Place of Origin:Shandong China;

API certification ZJ 30 skid-mounted electric rotary oil drilling rig

Product Description

Brief Introduction

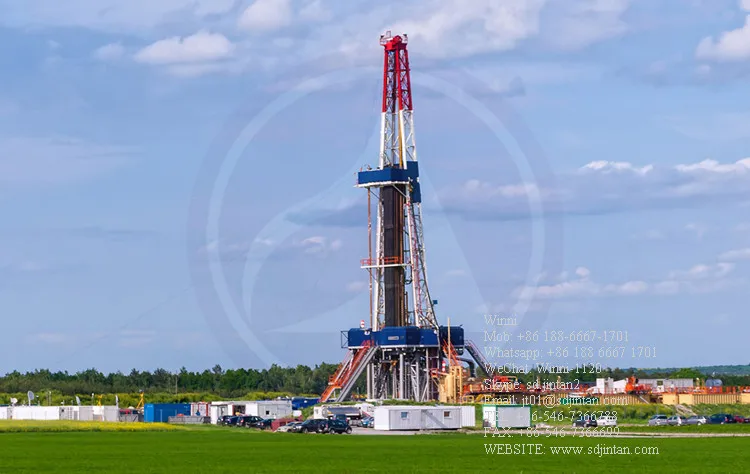

Rigs are used in oil and gas exploration and development. Products comply with API Spec 4F, 7K, 8A, Models and Basic Parameters of Rigs (SY/T5609-1999) and related standards, and API symbol occupancy permit has been obtained.

Technical Performance & Characteristics

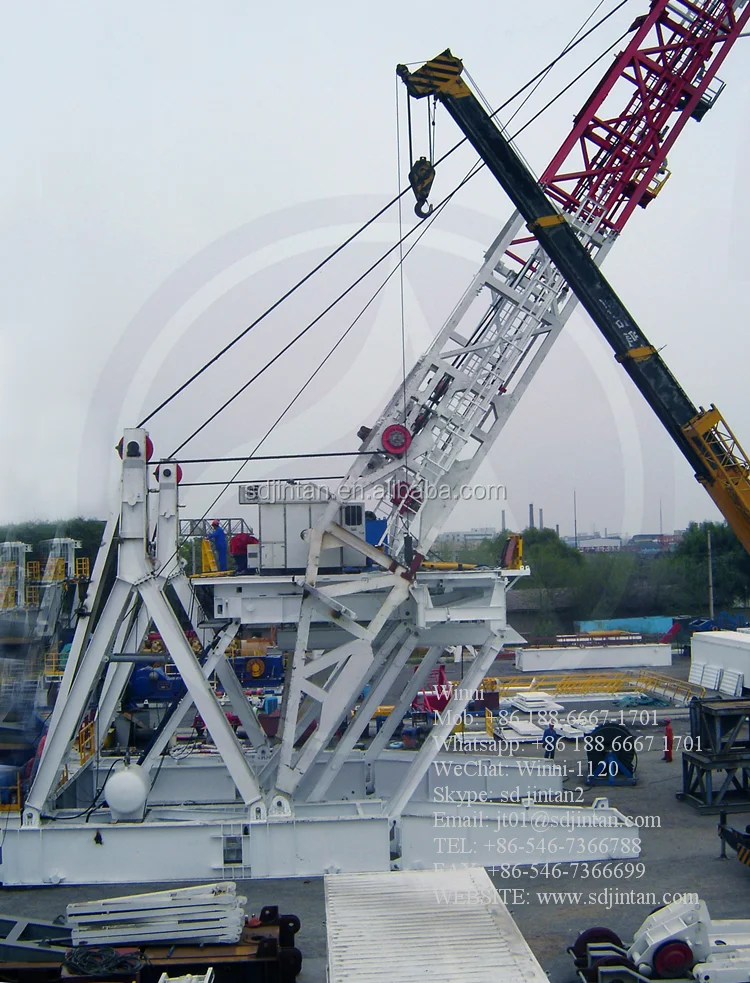

DC and drive drilling rigs are driven by AC-SCR-DC and AC-DC-AC respectively so as to achieve intelligent control over the rigs. A rig is powered by a diesel generator set, and a drawworks is provided with a hydraulic brake pad and an auxiliary Eaton brake. Winches, drilling pumps, and rotary tables all adopt independent electric drive and stepless speed regulation (rotary tables may also adopt combination drive). The derrick is in K-shaped structure, and the base in swing-up or case block type structure, both of which (if any, the latter shall be of swing up type) are installed at a lower position and hoisted as a whole. The drilling control room imposes centralized control so that rigs are delivered automatically. An AC variable-frequency drilling rig provides dynamic braking.

Brief introduction

Packaging & Shipping

Packaging and shipping detail

1.The spare parts in iron box,
2.The big part will naked packing in the container

3.According the order.

Our Services

We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.

It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.

Company Information

Dongying Jintan Petroleum Technology & Equipment Co., Ltd. is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.

In recent years, company vigorously explores its international markets and expands external partnerships. Relying on high product quality, competitive price as well as efficient services, its products have been exported to America, Canada, Columbia, Venezuela, Mexico, UAE, Oman, Iran, India, Kazakhstan, Russia, Indonesia, etc.

For years, Company always sticks to the “Customer-oriented" business philosophy and scientific management concept, and takes the providing of advanced products and quality services as its mission. By strictly following the international trade rules and adhering to the tenet of “Abiding by contracts & Keeping Promises” and the “win-win” purpose, it has established partnerships with internationally renowned enterprises, which provides a solid underpinning for company’s future development.

We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.
