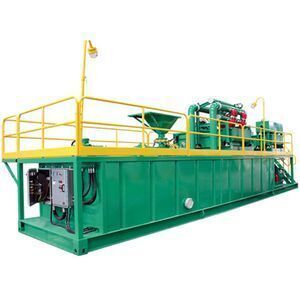

Skid mounted Oilfield solid control 30-80 m3 mud tank

Supplier: Dongying Jintan Petroleum Technology Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Fuhua Ai
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	as per the cusotmer;	Weight:	12 TONS;
wall thickness:	as per the customer;	Production Capacity:	500/month;
Condition:	New;	Model Number:	Drilling Fluid Cycle Tank;
Place of Origin:	Shandong China;	Certification:	ISO;
Port:	Qingdao;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Supply Ability:	500 Set/Sets per Year;	Brand Name:	Jintan;
Features:	Long Screen Life;	Warranty:	12 months;
Power(W):	220kW;	Packaging Detail:	bare packing to the port.;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	460V/380V/600v/660v;
Dimension(LWH):	12500 25002500;

Product Description

Specifications

The tank body has a big capacity, usable capacity is up to 480 m3.

Using the corrugated sheet structure, and with the “five stages purification, control of total access, total Explosion-proof circuit”, the mud circulation tank is well received by the drilling crew.

The main features
♦ With the corrugated sheet structure, the tank body has the advantage of high strength, elegant appearance, and reduce the weight of tank body.
♦ The solids control equipments are rationally distributed, and up to five stages purification(rough screening, degas, desand, desilt and centrifugation),and optimum the performance of the mud.
♦With the zinc-coated steel grating, the tank level is fine-looking, portable, corrosion-resistant, and so on.
♦ The tank body are connected by pneumatic type unions and glass steel tubes, so they have the advantages of fine-looking, installation easily, reliable steel, and so on.
♦ The tank body has a big capacity, usable capacity is up to 480m3.
♦ The water supply is automatic control, and every tank or compartment can be supplied water at the same time.
♦ Used ocean specialized paint for corrosion protection and well materials, the tank has high surface strength, and is fine-looking, wear well.

Technical Parameters of FG mud tank
Model	Total volume	Max. capacity	Mixing capacity	QTY	Dimension
JT60	60m3	80m3/h	100m3/h	2	8.5×2.4×2.5m
JT80	80m3	100m3/h	120m3/h	2	10.5×2.4×2.5m
JT120	120m3	160m3/h	180m3/h	3	10.5×2.4×2.5m
JT160	160m3	200m3/h	200m3/h	4	10.5×2.4×2.5m
JT200	200m3	200m3/h	200m3/h	5	10.5×2.4×2.5m
JT240	240m3	240m3/h	240m3/h	6	10.5×2.4×2.5m
JT300	300m3	240m3/h	240m3/h	7	11.5×2.4×2.5m
JT350	350m3	240m3/h	240m3/h	8	11.5×2.4×2.5m
JT400	400m3	240m3/h	240m3/h	9	11.5×2.4×2.5m

Project Case

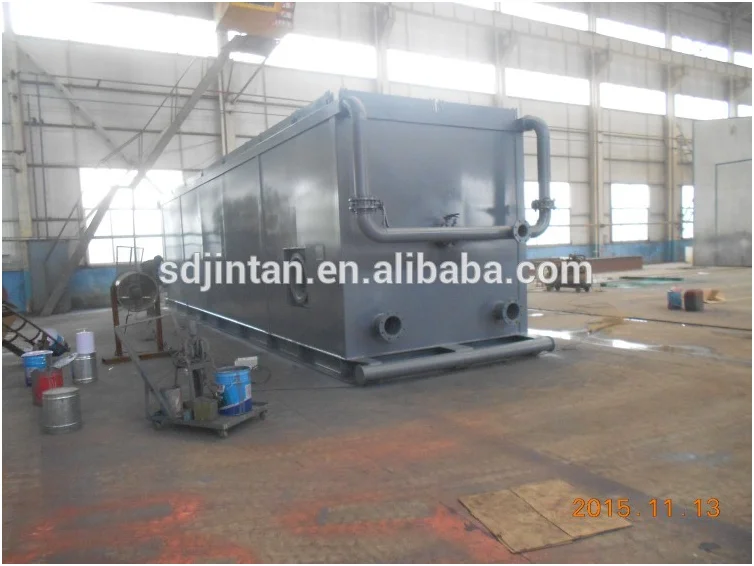

1. Produce as per the customer's drawings. And the quantity is big. The picture shows after all the welding and assemble.

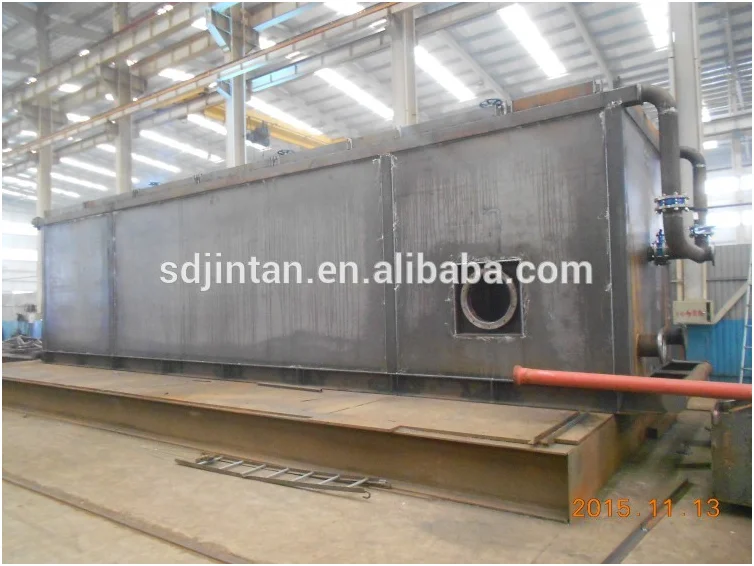

2. After the face paint , will go on the water test.

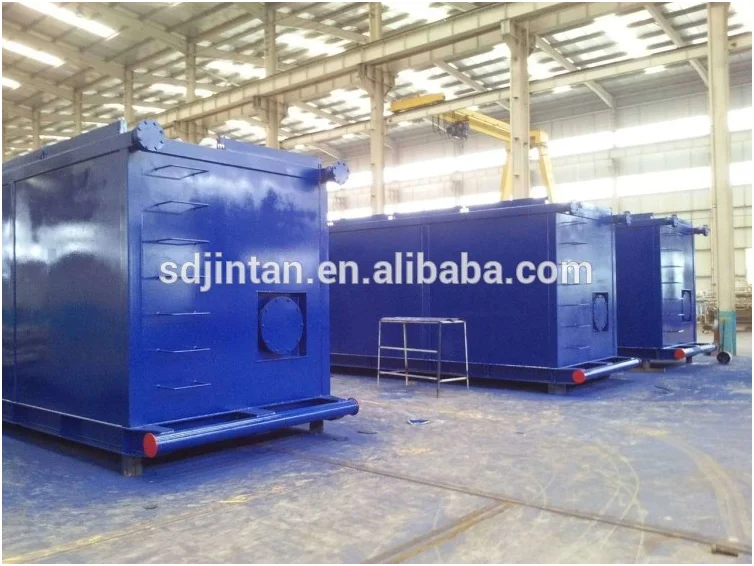

3. After 3 layers' painting.

Our Services

Customer can offer their wanted drawings or designs. We will produce as per the customers' requirements.

Our production capability and workers quantity suitable for big producing project. We have great designer and the technicians,our welding workers are top 1 in our city.

Professional shipping logistic department, if we do the CIF we will guarrantee your cargo safely arrive at your destination port.
