500BBL Oilfield Mobile Storage Fracturing Tank Mud Tank and Tractor

Product details
Dimensions (L*W*H):customer requestbrand:powerful
Showroom location:Spain, ThailandAfter-sales service provided:Engineers can repair machinery overseas
Video external inspection:ifapplication:oilfield
place of origin; place of origin:Shandong Chinaweight:customizable
Warranty:one yearVoltage:460V/380V/600v/660v
Local service location:Kenya, Argentina, KyrgyzstanApplicable industries:Energy and Mining
Marketing Type:normal productSupply capacity:10000 sets per month
Mechanical test report:ifpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
model:FG and ZGCore components:Pump
Core Components Warranty:1 yearCertification:API
port:QingdaoHealth status:new
Packaging Details:packed in crates
Product Description

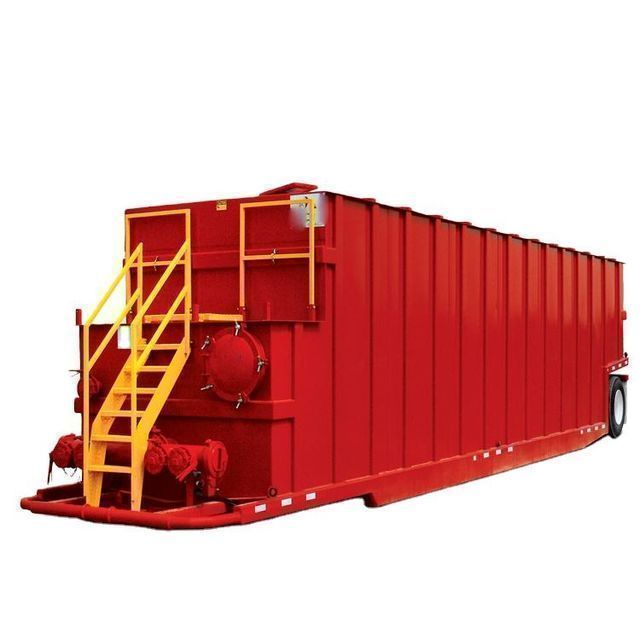

500BBL Oilfield Mobile Storage Fracturing Tank Mud Tank and Tractor

1. Product number:fracturing tank

2. Standard/Code: CCS

3. Design pressure: AMB

4. Operating pressure: AMB

5. Test pressure: AMB

6. Leakage pressure: AMB

7. Full volume: 63m3

8. Effective volume: 63m3

9. Design temperature: -20ºC~+50ºC

10. Storage medium: water

11. External fracturing tank size: 12192mmX2438mmX 2896mm

12. Internal fracturing tank size: 11290mmX 2292mmX 2540mm

13. Empty weight: 11,279kg

14. Max. Payload Weight (Static): 63,000kg

15. Max. Gross Weight (Static): 74,279kg

16. Material: carbon steel

17. Leak test: full water inspection

18. Paint and packaging: Container: White, ≥120um Frame: Blue, ≥120um

19. Do you need wheels: N/A




technical details

220 barrels fracturing tank detailed specifications



Floor: 1/4 PL, 4" V-bottom with integral side channels



Floor Support: 10" Channel Longitudinal Slides with Molding

1/4 PL beam



Wall: 1/4 PL solid welded, corrugated steel, corrugated 15"

In the center



Roof: Flat top, 1/4 PL solid welded, with channel supports on the outside



Front/Rear: 1/4 PL solid welded corrugated steel with 10" vertical outside corner radiusfracturing tank



Drain/Fill: 4" floor drain at rear, 3" intake pipe to roof at rear, 4" suction line to sump at front, 8" flanged front manifold connection, going down to floor . 8" External Manifold with 4 - 4" Fittings and Plugs, Hammer Fitting Fittings, Nuts and End Caps



GEL LINE: Curbside 4" mid-high connection, 4" inner tube, 3/4" hole at 12" center toward floor center, capped at rear end (end near side manhole)



Manholes: Front and side 21" manholes, 3 - unsealed hatch on roof220 barrels of fracturing tank



PICK UP: Standard 5th Wheel Kingpin



Welds: All welds are continuous except for substructure beams

Packaging and Shipping



Packing: FCL & LCL export standard container 20GP/40GP/40HQ.

  • FCL: Mainframe Cyclone Separator Desander Bare Packaging and Bulk Containers, Spare Parts in Wooden Cases or According to Your Special Requirements
  • LCL: The machinery is packaged in a steel frame, and the base and deck are packaged separately.

Shipping:By sea, air or express, it's up to you.



payment terms:

  • T/T or L/C are preferred.
  • T/T: 30% deposit and balance before delivery
  • We will take a picture of your product after completion and show it to you before delivery. Also gives you peace of mind by notifying you before you receive any updates, including shipping

Delivery time: Ship within 15 days after payment
