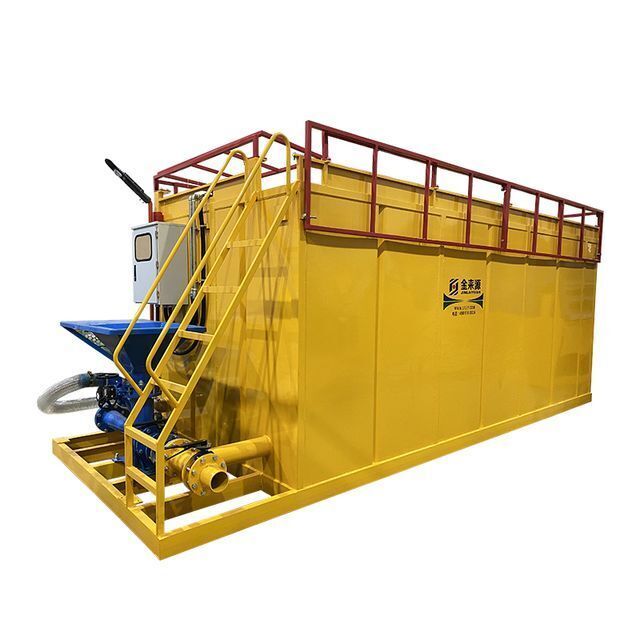

Oilfield Drilling Mud Mixing Tank System Equipment with Agitator and Jet Mud Slurry Mixer for Oil Well Drilling Drilling Fluid
-
Supplier: Langfang Jinlaiyuan Environmental Protection Technology Co., Ltd. -
Region: Hebei, China -
Contact: Ms jinlaiyuan Kim -
Price: $8000.00 /set -
Min. Order: 1 set
Product details
| Packaging Detail: | Wooden Frame; | Jet Capacity: | Refer to table; |
| Condition: | New; | Marketing Type: | Ordinary Product; |
| Warranty of core components: | 1 Year; | Dimension(L*W*H): | Vary by model; |
| Place of Origin: | Hebei, China; | Pressure: | 0.25MPa±20%; |
| Voltage: | As customers' need; | Warranty: | 1 Year; |
| Payment Terms: | L/C,D/P,D/A,T/T; | Tank volume: | Up to 250 bbl; |
| Showroom Location: | None; | Core Components: | Motor,Pump,Agitator,Reducer; |
| Jet Pump: | Refer to table; | Features: | Long service life, high efficiency; |
| Dimension: | Refer to table; | Brand Name: | JIN LAI YUAN; |
| Port: | Tianjin; | Package Preview: | ; |
| Model Number: | JLY-HP; | Feeding Method: | Suction; |
| Video outgoing-inspection: | Provided; | Weight: | Refer to table,4800 KG; |
| Supply Ability: | 40 Sets per Month Support Ocean shipping; | Machinery Test Report: | Provided; |
| Applicable Industries: | Energy & Mining,Other,Oil field,Oil well drilling; | Power: | Refer to table; |
| Production Capacity: | High; | Agitator: | Refer to table; |
Here are variety of volume and configurations of products for your option, besides, we can fulfill your professional demand of customization as well.
We offer technical suggestions and help as long as you need.
| JLY-HP-250322 | JLY-HP-250422 | JLY-HP-250604 | JLY-HP-250855 | JLY-HP-251075 | JLY-HP-N651555 | JLY-HP-N1202075 | JLY-HP-XXX | |
| Tank Volume | 19 bbl | 25 bbl | 38 bbl | 50 bbl | 63 bbl | 94 bbl | 125 bbl | 125 to 250 bbl |
| Jet Capacity (GPM) | 110 | 110 | 110 | 110 | 110 | 286 | 528 | Custom |
| Weight | 900kg | 1200kg | 1400kg | 1900kg | 2100kg | 3500kg | 4350kg | Custom |
| Dimension (L*W*H) |
2050*1850* 1720mm |
2350*1850* 1870mm |
3150*1850* 1880mm |
3450*1900* 2215mm |
3730*2000* 2100mm |
4700*2000* 2450mm |
5800*2200* 2450mm |
Custom |
| Feeding Method | Suction | Suction | Suction | Suction | Suction | Suction | Suction | Suction |
| Pressure | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% | 0.25MPa±20% |
| Power | 6.2kw | 6.2kw | 8kw | 9.5kw | 11.5kw | 29.5kw | 37kw | Custom |
| Agitator | 2.2kw | 2.2kw | 4kw | 5.5kw | 7.5kw | 2 PCs*5.5kw | 2 PCs*7.5kw | Custom |
| Jet Pump | 4kw | 4kw | 4kw | 4kw | 4kw | 18.5kw | 22kw | Custom |
