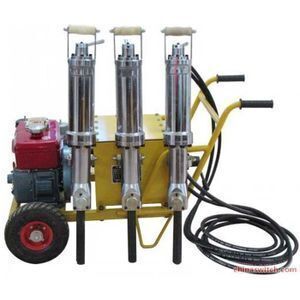

rock splitter,stone splitting wedge,darda hydraulic rock splitter

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Jiang
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	Shipped in 3 days after payment;	work flow:	5m;
Capacity of tank:	25-45L;	Motor Type:	AC Motor;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Model Number:	HW202;
Condition:	New;	After-sales Service Provided:	Overseas third-party support available;
Port:	Qingdao/Tianjin/Shanghai;	Place of Origin:	Shandong China;
Supply Ability:	1000 Set/Sets per Month rock splitter;	Warranty:	3 years;
depth:	300-800mm;	Certification:	CE/SGS;
Power:	5.5KW;	Equiped qty of cylinder hammer:	1-10;
Working Pressure:	55-60Mpa;	Brand Name:	HW;
Packaging Detail:	wooden case;	Dimension(LWH):	450410700MM;
Type:	Rock Splitter,Rock Splitter;	Work Flow:	2-13L/M;
Application:	stone ,concrete,Stone, concrete;	Splitting diameter:	42-45mm;
Working Medium:	46 or 68 anti-wear;

Product Description

Product Application

The Hydraulic Rock & Concrete splitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete,and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.

SPECIFICATIONS FOR ROCK SPLITTER

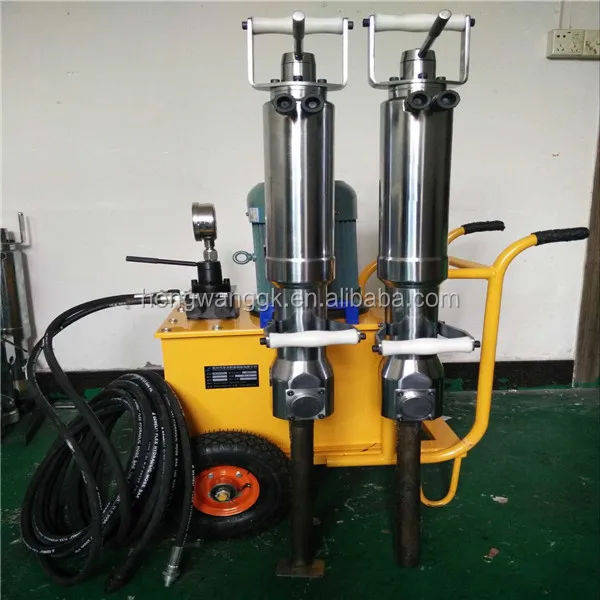

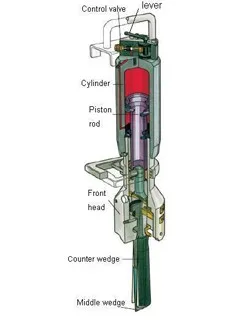

Rock spliter gun
Model	HW80-250	HW80-350	HW80-450	HW90-250	HW90-350	HW90-450
Piston diameter	80mm	80mm	80mm	90mm	90mm	90mm
Drilling diameter	Φ42mm	Φ45mm	Φ50mm	Φ42mm	Φ45mm	Φ50mm
Drilling depth	≧500mm	≧550mm	≧600mm	≧500mm	≧550mm	≧600mm
Cheese block length	250mm	350mm	450mm	250mm	350mm	450mm
Crack width	10～40mm
Splitting time	5～15s
Theory of separatist force	600T	600T	600T	800T	800T	800T
The actul split force	480T

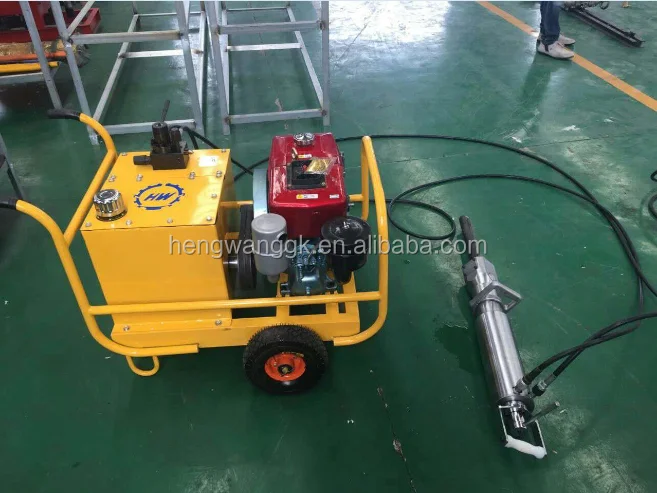

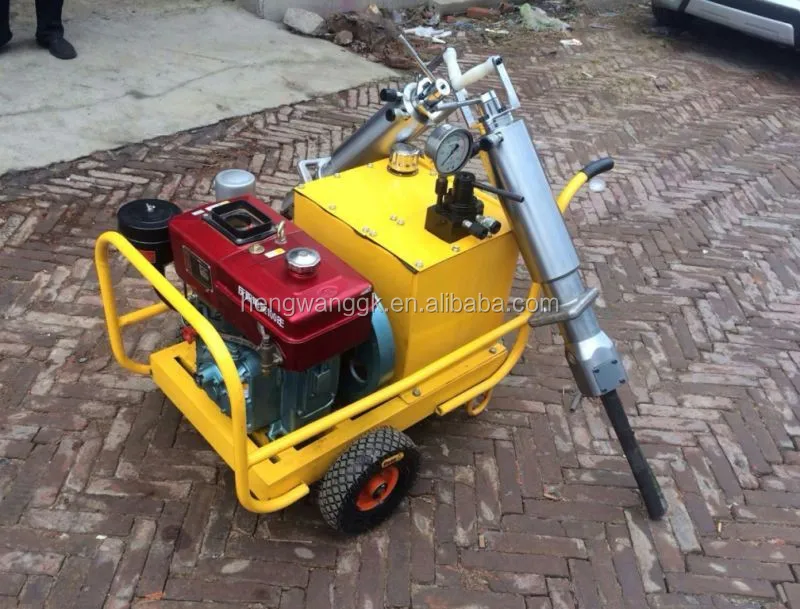

Hydraulic rock splitter pump station
Engine	Electric engine			Diesel engine
Capacity of tank	15L	40L	88L	45L	65L	90L
Motor power	1.5KW	4KW	7.5KW	4HP	7HP	7.5HP
Working pressure(Mpa)	55-60
Working flow(L/min)	2—13

working Pictures

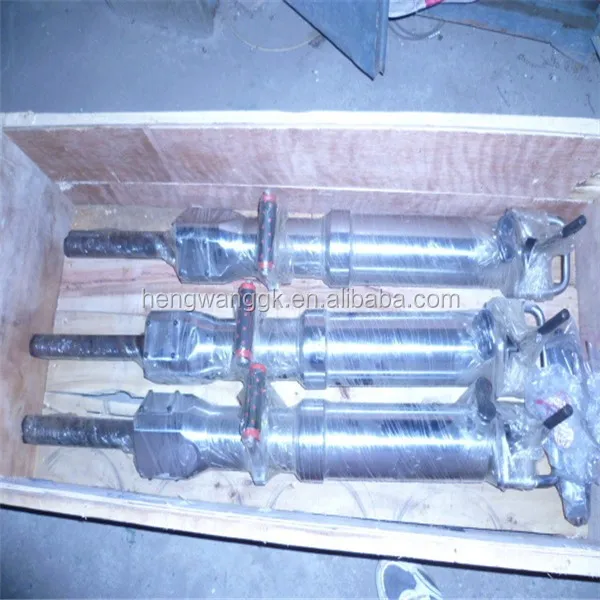

Packing & Delivery

Our Service

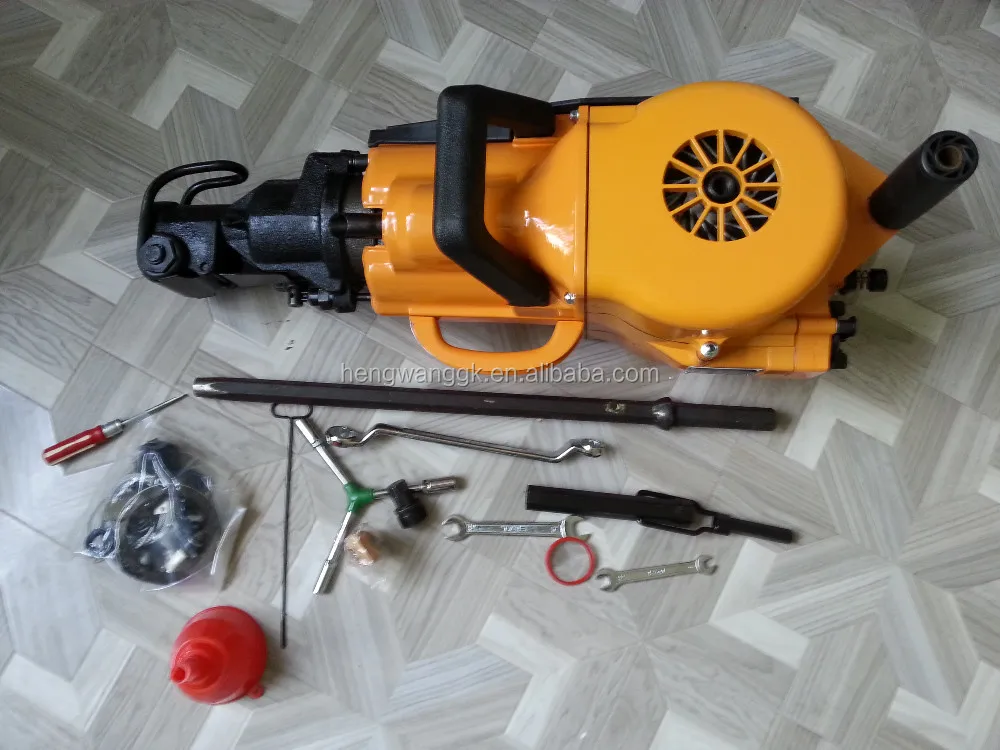

YN27C rock drill
