2019 hengwang Pile Driving Machine/Foundation Construction equipment/ solar pile driver

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Jiang
Price: $21000.00 / 1 - 4 sets
$20599.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Warranty:	1 Year;
Machinery Test Report:	Provided;	Supply Ability:	500 Pieces per Month;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Application:	Pile Driving;
working model:	self-pressure;	Warranty of core components:	2 years;
Showroom Location:	None;	Packaging Detail:	standard export packing hengwang Pile Driving Machine/Foundation Construction equipment/ solar pile driver;
Brand Name:	Hengwang;	Local Service Location:	None;
Drilling diameter:	600-1200mm;	Piling Speed(m/min):	2.7M/min;
Efficiency:	High;	UNIQUE SELLING POINT:	High operating efficiency;
Condition:	New;	Applicable Industries:	Construction works ;
Weight:	6500;	Output torque:	26000;
Marketing Type:	Hot Product 2019;	Core Components:	Engine,Pump;
Name:	solar pile driver;	Engine power:	85Kw;
hydraulic system pressure:	25Mpa;	Rotation Angle:	360 Degree;

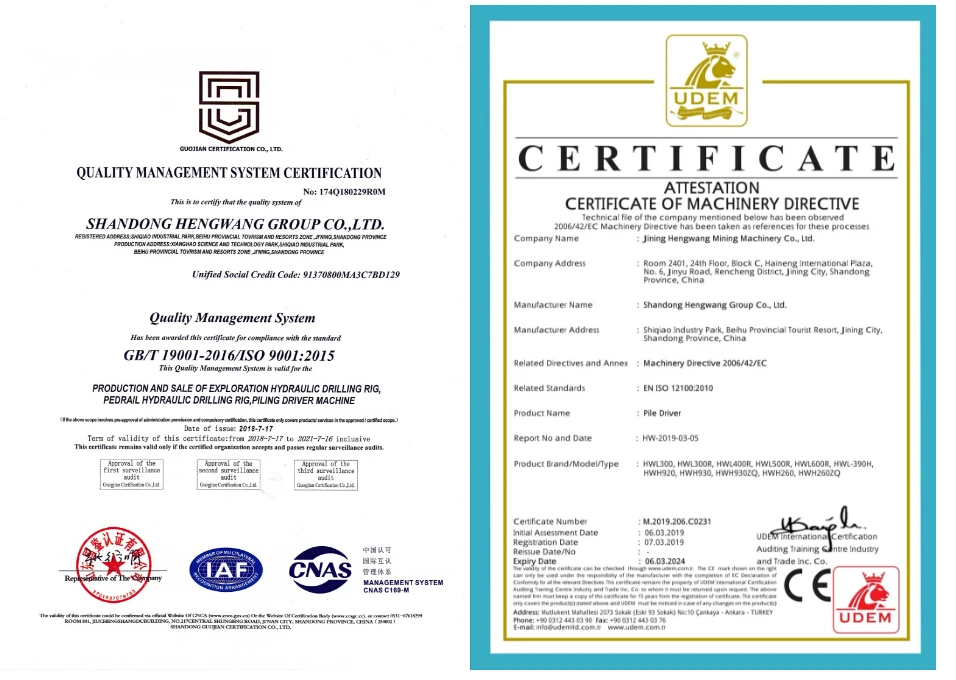

Suitable pile:	solar piles;	Certification:	CE/ISO;
Port:	Qingdao/Tianjin/Shanghai;	Driling Depth:	6m;
Place of Origin:	Shandong, China;	Dimension(LWH):	760021502800mm;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training;

Product Description

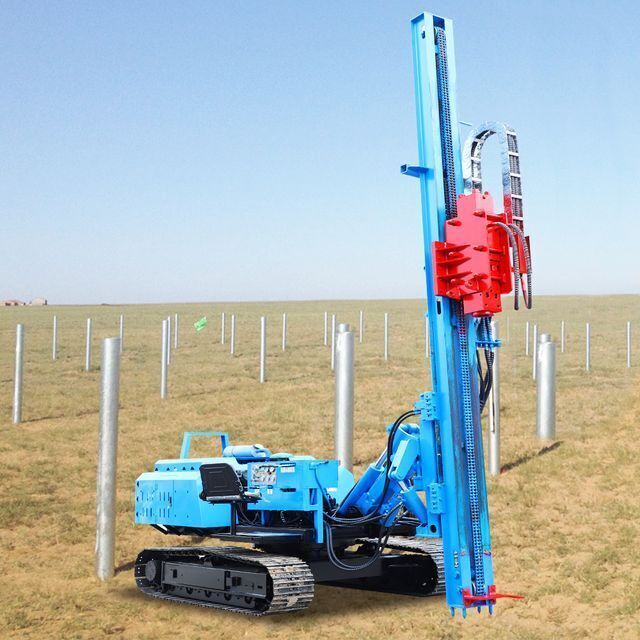

Product Application hengwang Pile Driving Machine/Foundation Construction equipment/ solar pile driver

3m/6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.

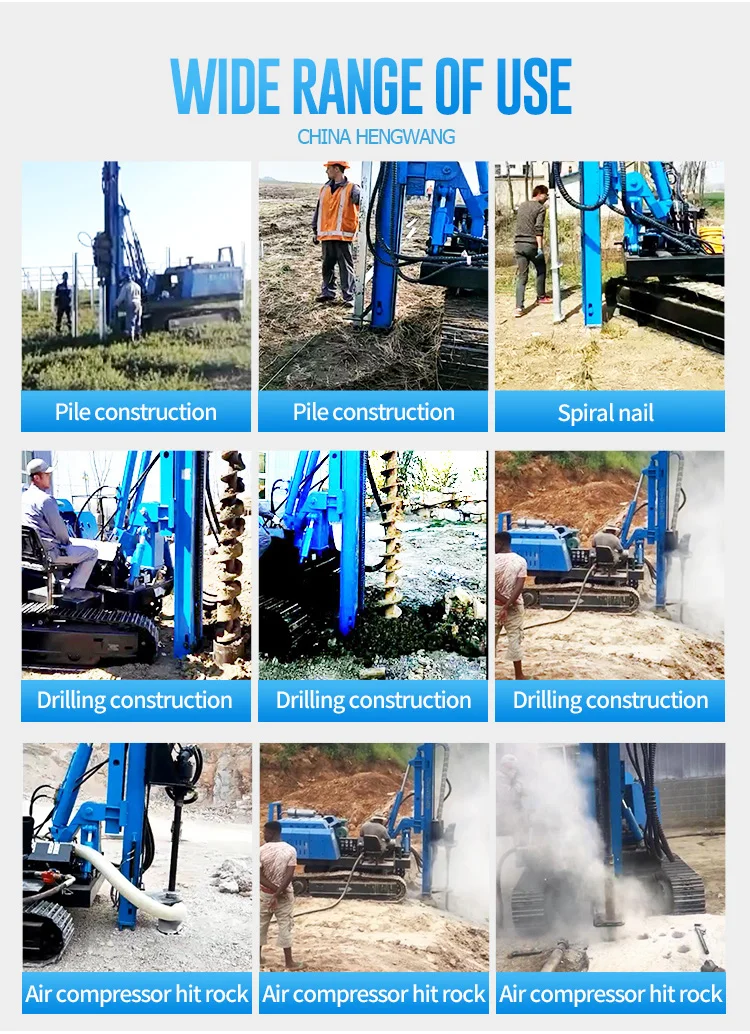

This hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.

Crawler walking,high walking and climbing ability .The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

Specification of Pile driver
Model	HWL600
Pile legnth	0-6m
Duplex gear pump pressure	25Mpa
Duplex gear pump displacement	40/40/25 ml/r
Hydraulic system pressure	20Mpa
Main valve flow	150L/min
Overall machine weight	6500kg
Engine Power	85KW
Rated speed	2400r/min
Starting voltage	24V
Rotation angle	360°
Effective press pile stroke	0-5000mm
Dimension working condition	430021507600mm
Transportation condition	460021502600mm
Track shoe	350mm
Walking motor total displacement	1575 ml/m
Motor head hamming force	1700J
Walking motor rotate speed	50 r/min
Operating speed	1.5m/min
Number of impacts/strokes	900r/min
Max. length of piles to be rammed	6m
Walking speed	5-10 km/h
Gradeability	35°
Oil tank capacity	20L
Daily production on 6m	200 pcs

Main Features

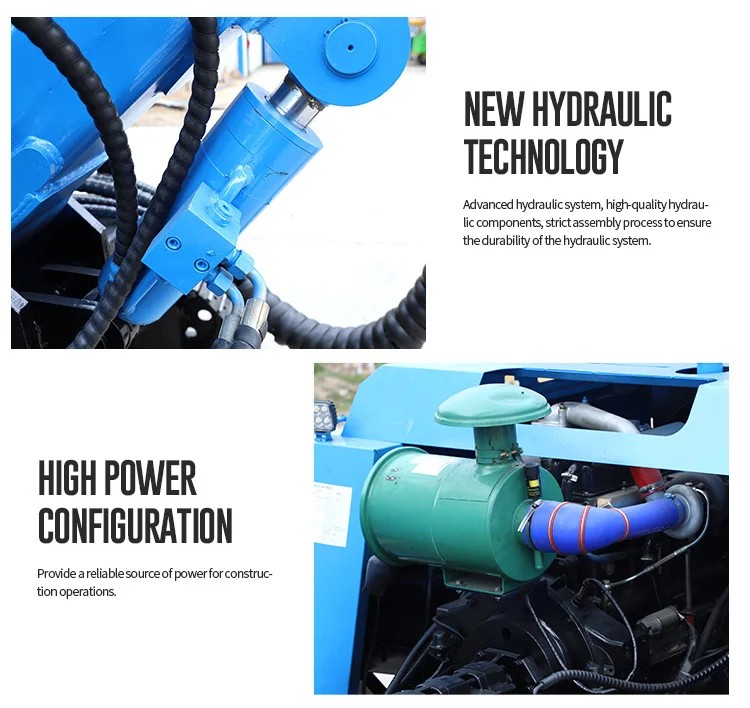

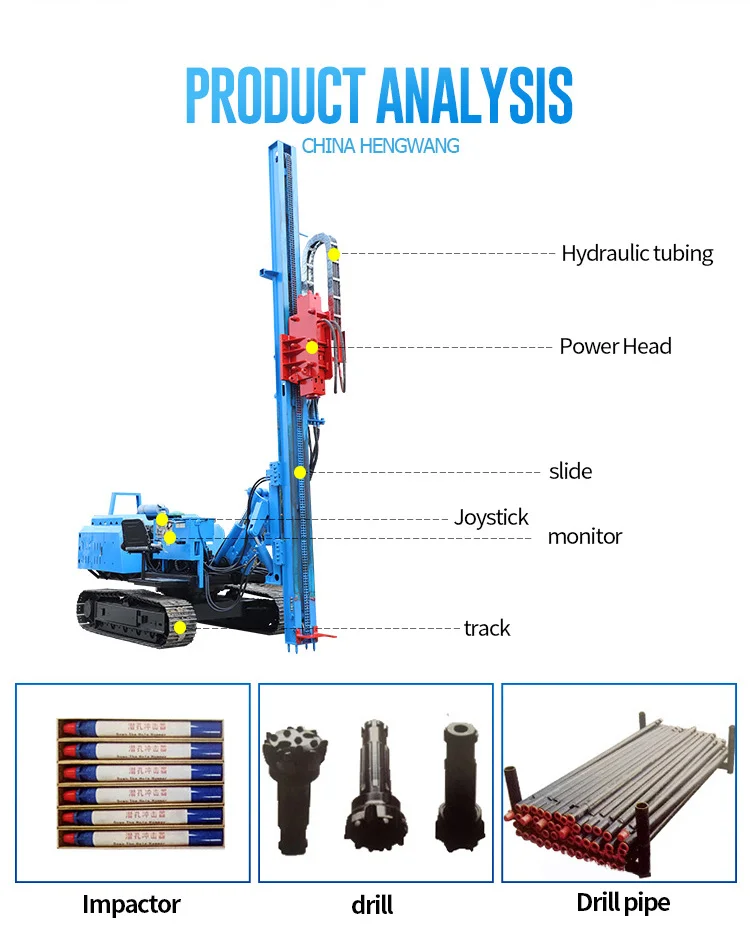

1) Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .

2).Oil province,is a common driver uses around half of a year can be a driver left money for you.

3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

4).Crawler walking,high walking and climbing ability

5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

hengwang Pile Driving Machine/Foundation Construction equipment/ solar pile driver

Detailed Images
