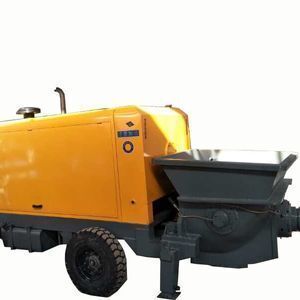

big grain concrete pump hydraulic system concrete pump 40m3/h

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Jiang
Price: $4850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	export stardand package;	Weight:	1580;
color:	yellow;	Port:	qingdao;
After-sales Service Provided:	Engineers available to service machinery overseas;	max grain size:	20mm;
Warranty:	1 year;	Name:	HW70D diesel engine trailer concrete pump pump concrete;
Local Service Location:	None;	UNIQUE SELLING POINT:	High load Moment;
Sale:	hot;	Dimension(LWH):	340013201480;
Certification:	CE,ISO;	Showroom Location:	None;
Condition:	New;	Supply Ability:	10000 Set/Sets per Month CONCRETE PUMP;
Power Type:	Diesel;	Brand Name:	HW;
model:	small concrete pump for sale;	working pressure:	5.3Mpa;
Applicable Industries:	Building Material Shops,Farms,Construction works ;	delivery distance:	200m;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Place of Origin:	Shandong China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;

Product Description

Product introduction of the trailer concrete pump pump concrete

HW high floor cement mortar pump is a small fluid mixture conveying equipment, not only widely used for wet-mixed mortar pumping and wall plastering in high

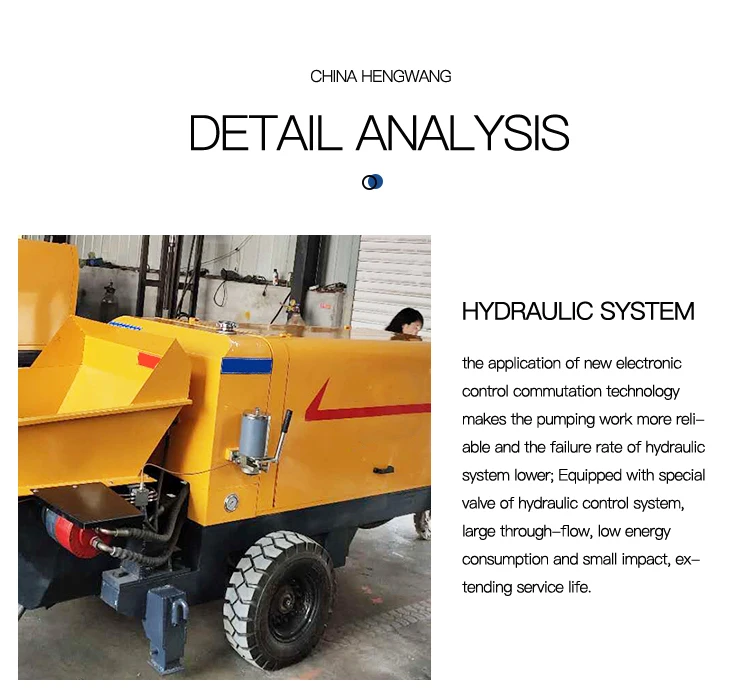

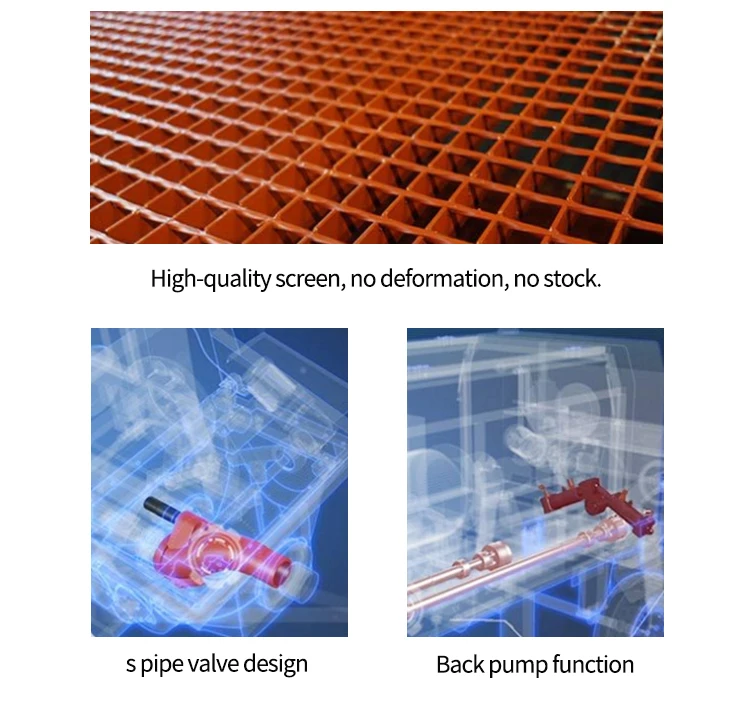

floor buildings construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. HW could pump less than 25mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping. The hydraulicdriven mixing device can play the good role of secondary mixing conducive to pumping. The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant and long service life. The hydraulic system adopts independent three circuit electro-hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure. Its elegant appearance and light weight is easy to transport; Working with batching mixing equipment can achieve continuous pumping construction to improve construction schedule.

technical parameters

The Technical parameters of the trailer concrete pump pump concrete

Model	--	HW15-05-22 (piston)	HW20-08-33 (piston)	HW-04 (squeeze)
Motor power	kw	22	30	4
Maximum theoretical working pressure	Mpa	5.3	8	5
Theoretical displacement	m³/h	15	20	6
Maximum horizontal delivery distance	m	200	350	180
Maximum vertical delivery distance	m	80	140	180
Maximum grain size	mm	≤20	≤25	≤6
Cylinder diameter and stroke	mm	Φ140×800	Φ140×800	Squeeze pipe Φ50×1400
Delivery hose diameter	mm	Φ80, Φ50	Φ100,Φ80	Φ38
Net weight	kg	1580	2000	500
Dimension (L×W×H)	mm	3400×1320×1480	4000×1500×1550	800×1100×1300
