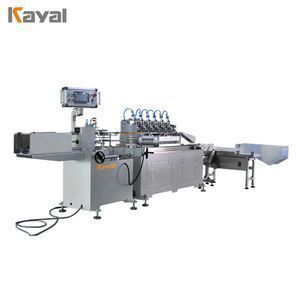

2019 New Products KY1BB5 KY1BB6 KY-1TB5 Flexible paper drinking straw making/manufacturing machine

Click here to contact

Product details

Brand Name:	KAYAL;	Certification:	CE;
Coil speed:	0-45 M / min;	Main engine speed:	1400r/min;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	standard packaging;
Voltage:	380 volts/Three-phase/50Hz;	Supply Ability:	120 Set/Sets per Month;
Paper layer number:	2-3 layers;	Coil thickness:	0.3-1mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Fixed length:	According to encoder;
Place of Origin:	Zhejiang China (Mainland);	Inner diameter of coil:	5-12mm;
Condition:	New;	Warranty:	3 year;
Weight:	1200kgs;	Port:	NINGBO/SHANGHAI;
Power Parameters:	380 volts/Three-phase/50Hz;	Fixed axis method:	flange;
Head:	2 heads and single belt;	Dimension(LWH):	560016001750mm;
Number of Operator:	1-2;	Power(W):	3kw;

Please Attention!

technical parameter
Paper layer number	2-3 layers
Inner diameter of coil	5-12mm
Coil thickness	0.3-1mm
Coil speed	0-45 M / min
Head	2 heads and single belt
Fixed axis method	flange
Cutting system	Numerical Control (Nc) Multi knive (standard 5 knives)
Cutting length	120-850mm
Synchronous tracking and cutting	Servo motor synchronous tracking cutting
Glue way	Double sided (customizable single side)
Fixed length	According to encoder
Number of Operator	43467
speed control system	frequency control
Power Parameters	380 volts/Three-phase/50Hz
Efficiency (production of paper straws per hour)	12000 roots / hour
Machine size and weight
Mainframe size	560016001750mm
Area covered	7000mm6000mm1800mm
weight	1200kgs
drive system
Main motor	3KW
Main engine speed	1400r/min
Hub speed	48r/min
Hub output strength	1000N m
Control system
Electric machinery	Shanghai DEZAI Transmission Machinery Co., Ltd.
human-computer interface	Shenzhen samkoon Automation Technology Co., Ltd.(Schneider)
Frequency converter	4KW (Schneider)
Actuating element	Schneider
Signal element	HuGong
Pneumatic components	Airtac
Electrical components	Schneider
Bearing	Harbin
servo motor	1KW(Schneider)
Moving wire rod	ABBA Taiwan
Moving slider	ABBA Taiwan

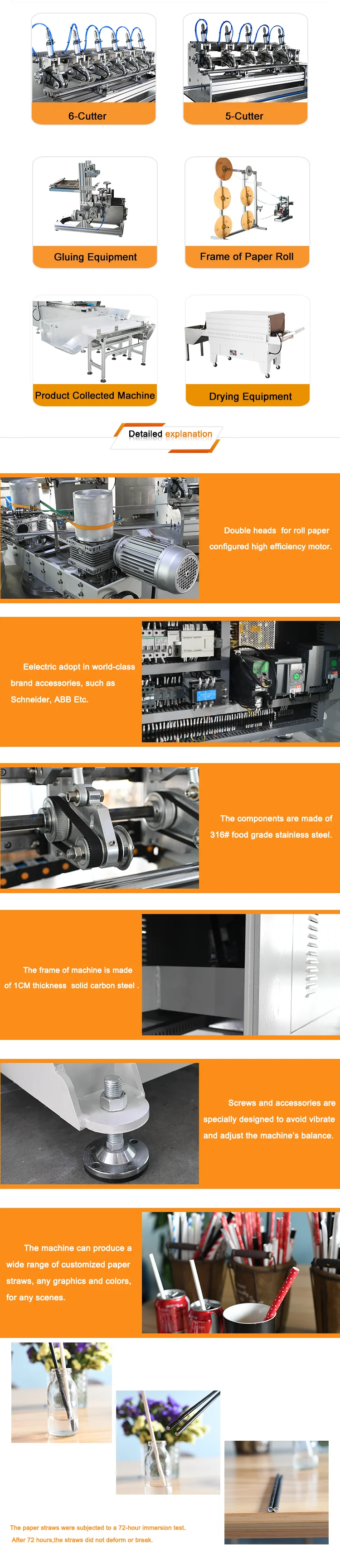

Main configuration
Paper holder	3 layers
Glue holder	3 layer spray type
mandrel	2 sets (size supplied by customers)
Belt	2
Belt adjustment	Manual
gummed paper holder angle adjustment	Manual adjustment
Paper tape lubricant supply	Automatic supply
Complimentary accessories
tool case	1 set
knife	10
