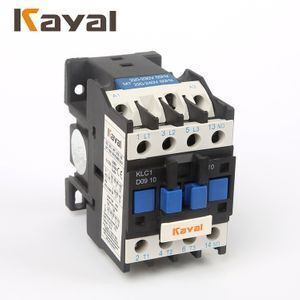

Free sample factory cheap LC1-D0910 9A AC contactor

Supplier: Wenzhou Kayal International Trade Co., Ltd.
Region: Zhejiang, China
Contact: Ms Vincent Cheng
Price: $1.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Frequency:	50Hz/60Hz;	Contact marterial:	sliver;
Phase:	3;	Product Name:	AC contactor;
Electricity Type:	AC;	Place of Origin:	Zhejiang China;
Size:	477682mm;	Port:	Ningbo or Shanghai;
Coil marterial:	Copper;	Main Circuit Rating Current:	9A;
Auxiliary contact:	1NO or 1NC;	Weight:	18Kg/Carton;
Number of Pole:	3;	Main Circuit Rating Voltage:	up to 660v;
Certificate:	CE ISO9001 CCC;	Model Number:	LC1-D0910;
Payment Terms:	L/C,D/P,T/T,Western Union,paypal;	CTN:	50PCS;
Brand Name:	KAYAL;	Packing:	Carton;
Supply Ability:	500000 Piece/Pieces per Month AC contactor;	Packaging Detail:	50PCS/18Kg/Carton 3925.519CM;

Please Attention!

Free sample factory cheap LC1-D0910 9A AC contactor

Product Description

AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & machineinterlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.

Type		KLC1-D09	KLC1-D12	KLC1-D18	KLC1-D25	KLC1-D32
Rated operation corrent(A)	AC-3	9	12	18	25	32
Rated operation corrent(A)	AC-1	3.5	5	7.7	8.5	12
AC3-capacity of phase 3 squirrel -cage motor ac3(kw)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	440V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current(A)		20	20	32	40	50
Electrical life	AC4 10⁴	20	20-15	20-7	15-7	15-7
Electrical life	AC3×10⁶	2	2	2	2	2
Mechanical life × 10⁶		20	20	20	20	20
Number of the contacts		3P+NO
Number of the contacts		3P+NC
