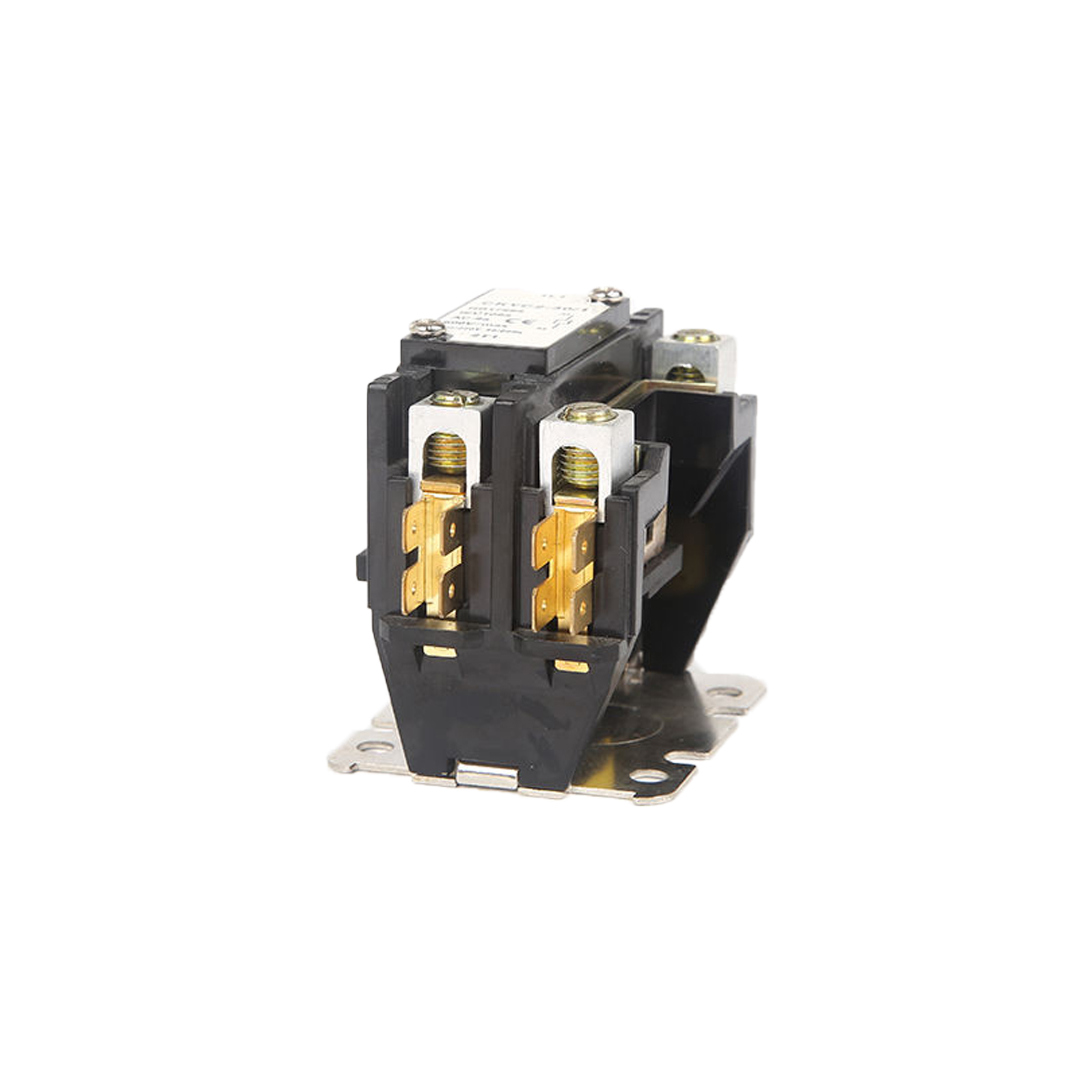

AC air conditioning compressor Magnetic contactor 220v Single phase 2 pole contactor

Supplier: Ningbo Domi Refrigeration Co., Ltd.
Region: Zhejiang, China
Contact: Mr James Liu
Price: $2.02 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Processing:	yes	Main circuit rated voltage:	24V
brand:	domi	port:	Ningbo
Certificate:	CCC certification	frequency:	50/60 Hz
Electrical life:	25,000 times	Main circuit rated current:	100A
model:	contactor	Supply capacity:	100000 pieces per month
Power type:	air conditioner	application:	breaker
Square washer terminal:	yes	Material part:	copper
stage:	3	product name:	AC Magnetic Contactor
Number of poles:	1/2/3	Packaging Details:	carton
place of origin; place of origin:	Zhejiang, China	Key words:	Air-conditioning compressor
payment terms:	L/C, T/T, PayPal	Mechanical life:	10,000,000 times

Part Number	polish	coil voltage	fully loaded amplifier	Part Number	polish	coil voltage	fully loaded amplifier
CON-1/24/30	1	24VAC	30	CON-3/120/50	3	120VAC	50
CON-1/120/30	1	120VAC	30	CON-3/240/50	3	240VAC	50
CON-1/240/30	1	240VAC	30	CON-3/480/50	3	480VAC	50
CON-1/24/40	1	24VAC	40	CON-3/24/60	3	24VAC	60
CON-1/120/40	1	120VAC	40	CON-3/120/60	3	120VAC	60
CON-1/240/40	1	240VAC	40	CON-3/240/60	3	240VAC	60
CON-2/24/30	2	24VAC	30	CON-3/480/60	3	480VAC	60
CON-2/120/30	2	120VAC	30	CON-3/24/75	3	24VAC	75
CON-2/240/30	2	208/240VAC	30	CON-3/120/75	3	120VAC	75
CON-2/24/40	2	24VAC	40	CON-3/240/75	3	240VAC	75
CON-2/120/40	2	120VAC	40	CON-3/480/75	3	480VAC	75
CON-2/240/40	2	208/240VAC	40	CON-3/24/90	3	24VAC	Post-90s
CON-3/24/30	3	24VAC	30	CON-3/120/90	3	120VAC	Post-90s
CON-3/120/30	3	120VAC	30	CON-3/240/90	3	240VAC	Post-90s
CON-3/240/30	3	240VAC	30	CON-3/480/90	3	480VAC	Post-90s
CON-3/24/40	3	24VAC	40	CON-3/24/125	3	24VAC	120
CON-3/120/40	3	120VAC	40	CON-3/120/125	3	120VAC	120
CON-3/240/40	3	240VAC	40	CON-3/240/125	3	240VAC	120
CON-3/480/30	3	480VAC	40	CON-3/480/125	3	480VAC	120
CON-3/24/50	3	24VAC	50

benefit:

1.Low VA coil for cooler operation and longer life2.silent operation3.Universal Mounting Bracket Existing Mounting Holes4.Double detent contacts ensure positive switching5.Screw terminal or pressure connectors and dual 1/4 quick connects6.All models are available for easy installation

Insulation Materials	Contact block and carrier are high electrical grade thermosetting resins
temperature range	-40°F to 150°F
Mechanical life	Meets UL and ARI specifications
Outline	as follows
weight (approximately)	9.5 oz
coil frequency	50/60 Hz
Coil insulation	Class B (130'C)
termination	Pressure Fitting and Dual 1/4 QC
operate	85% of the nominal coil voltage, 110% of the maximum working state
duty cycle	continuous
