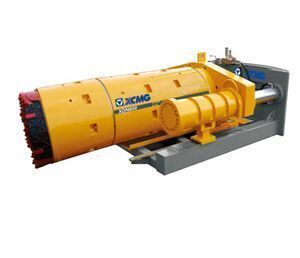

600mm XDN600 Micro Tunnel Boring Machine for Sale

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $107500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Machinery Test Report:	Provided;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Charge pump Motor power:	5.5KW;	Marketing Type:	Ordinary Product;
Single gross weight:	12000.0 KG;	Injection pump Motor power:	4KW;
Video outgoing-inspection:	Provided;	Packaging Detail:	nude;
Place of Origin:	Jiangsu China;	Condition:	New;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Certification:	ISO;	Warranty:	1 YEAR;
Warranty of core components:	1 YEAR;	Torque:	34KN.M;
Selling Units:	Single item;	Single package size:	4360X3560X2100 cm;
Showroom Location:	UNITED KINGDOM,United States,VIET NAM,philippines,brazil,peru,SAUDI ARABIA,indonesia,Mexico,Thailand,Morocco,CHILE,UAE,Colombia,algeria,Sri Lanka,Romania,BANGLADESH,south africa,KAZAKHSTAN,UKRAINE,kyrgyzstan,NIGERIA,uzbekistan,Tajikistan,japan,malaysia,Australia;	Weight:	4100KG;
Discharge pump Motor power:	11KW;	Brand Name:	NEWINDU;
Pipe diameter(ID):	600mm;	Dimension(LWH):	770*3200mm;
Pipe diameter(OD):	750mm;	Core Components:	PLC,engine,Bearing,Gearbox,MOTOR,PRESSURE VESSEL,GEAR,pump;
Local Service Location:	canada,UNITED KINGDOM,United States,GERMANY,VIET NAM,brazil,peru,pakistan,INDIA,Mexico,RUSSIA,spain,malaysia,Australia,Morocco,argentina,CHILE,Colombia,algeria,BANGLADESH,kyrgyzstan,none;

600mm XDN600 Micro Tunnel Boring Machine for Sale

Please Contact

Sales Manager

Aring Zhou

Wechat/Whatsapp: +8615855426352

Product Description

1.High reliability:Hydraulic overload protection system is reliable and safer,and
the water proof is good.
2.Great geology adaptability:Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.
4.Good construction operability:Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a balance of jacking speed and delivery of slurry flow.

Main Parameters

Description		Unit	Parameter value
Pipe diameter	ID	mm	Φ600
Pipe diameter	OD	mm	Φ750
Outer diameter× length		mm	Φ770×3200
Rotation system	Motor power	kW	37
	Torque	kN.m	34
	Revolution	r/min	12
Roll correction system	Force per cylinder	kN	217
	Cylinder number	EA	3
	Steering angle	°	3
slurry line diameter		mm	Φ75
Weight		kg	4100
Jacking system Motor power		kW	15
Jacking cylinders	Thrust	kN	1000
	Number	EA	2
	Stroke	mm	760×2
Launch shaft dimensions		mm	Φ2900
Reception shaft dimensions		mm	Φ1900
Charge pump Motor power		kW	5.5
Discharge pumpMotor power		kW	11
Injection pump Motor power		kW	4
