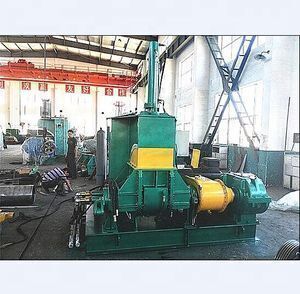

Well sealed rubber kneader / rubber dispersion mixer / internal mixer

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	333026203340mm;	bush:	bearing bush;
Model Number:	X(S)N-75*30;	Packaging Detail:	Standard exported package,FCL container or according to your requirement.;
Weight:	10.5Ton;	Place of Origin:	Shandong;
After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;	Voltage:	220v,240v,380v,400v,415v,440v;
Port:	Qingdao port or any port of China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	Three years;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
the rotors:	chroming carbide alloy,15silk;	Condition:	New;
Certification:	CE/SGS/ISO;	reducer:	hardness tooth surface;
control:	PLC;	the pressure lid:	0.6~0.8MPa;
Power(W):	110kw;	Brand Name:	chaoguangyue;
Supply Ability:	30 Set/Sets per Month;	simple structure:	well sealed ,easy operation;

Well sealed rubber kneader / rubber dispersion mixer / internal mixer

High safety factor,low energy cost, high degree of production sanitation

Brief description

1.Excellent sealing performance(copper sealing ring)
2.No leakage of powder /oil-proof
3.Automatic and manual interaction

4.Rotors:chroming carbide alloy ,15 silk

5.Type of rotors:standard two-wing tangential rotor ,four-wing synchronous rotor ,welded up alloy rotor and cylindrical intermeshing rotor

Laboratory banbury mixer

Mixing chamber:

It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.

Thermal Resistance:

There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.

The rotors:

It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.

Cooling/heating system:

A common piping system is used .Cooling water/steam/medium oil is led in three ways into the cavities of the rotor wings ,the mixing chamber and the ram to cool or heat stock in a circulation way.

Tilting mechanism:

It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc.. It is able to actuate the mixing chamber tilting by 140° around the front rotors.

Dust sealing device:

At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.

The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.

Main driving system:

It is comprised of the main motor,the speed reducer and the connecting gearbox to drive the two rotor shafts rotatingat differential or same speed in oppsite directions.

Pneumatic control system:

The PLC commands the bid-directional cylinder to drive the ram going up and down.In case the mixing is over load,the ram floats up automatically to protect the motor from operation at over load.The ram can be forcibly lifted manually ,if necessary.

Technical parameter:

Model	X(S)N-20*34	X(S)N-35*30	X(S)N-55*30	X(S)N-75*30	X(S)N-110*30
Total Volume (L)	45	75	125	175	250
Working Volume (L)	20	35	55	75	110
Power(KW)	30	55	75	110	185
Tilting Power(KW)	1.5	2.2	2.2	3.0	7.5
Tilting Angle	140°	140°	140°	140°	140°
Rotational Speed (r/min)	40/32	40/32	40/32	40/32	40/32
Size(mm)	310013002450	320019002945	330019002900	376021433135	407527123580

Specifications:

1. The plastic material in airtight plastic pressure under the condition of refining or mixed refine, high production efficiency, low labor strength, stable quality. The two edges rotor shearing type, the production process the plastic materials that can be fully tear make the material shear well reach dispersion and evenness.

2. The edges of the rotor peak surfacing wear-resisting hard alloy, and mixing rubber room and material part of the contact all use hard chromium plating fine polishing processing. Mixed refine chamber adopts clip set of type structure, can be out water/steam/medium oil, have good cooling or heating effect, adapt to all kinds of refined rubber refining technological requirements of the plastic.

3. From the back door charging, mixing rubber room maximum flip 140 ° forward unloading, and according to the customer requirement of process can be arbitrary regulation Angle, facilitate next process of connection.

4. The switch on the "w" type, facilitate materials can be fully mixing rubber or refining.

5. The electric control system the programmable logic controller (PLC), has the alarm, unloading

operation, manual/automatic conversion, chain security protection function.

10L and 20L hydraulic tilting type rubber kneader

(Exported to America)

110L Hydraulic tilting type rubber kneader

(Exported to Poland)

Foam plastics banbury mixer

(Exported to Turkey)

35L Rubber kneader

(Exported to Sri Lanka)

55L Rubber kneader

(Exported To Thailand )

75L Rubber kneader

(Exported to India)

110L Foam rubber mixer

(Exported to Brazil)

Our packing way: Export standard (wooden package ) or according to your requirement.

Our Services :

1. We will design,manufacture,install and test the machines according to customers' requirement. Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.

2. Our service department listen to customers' feedback at any time and provide spare parts timely.

Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires and we will provide detailed information for you. We can also make non-standard machines according to your request.
