Rubber Plastic Lab Two Roll Mill Price

Product details
Temperature accuracy:± 3 ℃;Supply Ability:150 Set/Sets per Month lab two roll mill in stock;
Showroom Location:None;Year:custom;
Dimension(L*W*H):960*550*1150 mm;Roll Ratio(Front/Back):1:1.25;
Port:shenzhen;Weight (KG):380 KG;
Voltage:380V;Roller hardness:HRC 50 ~ 60;
model:Lab Two Roll Mill price For Rubber Plastic;Certification:CE/ISO;
Temperature:room temperature ~ 300 ℃;Power(W):2800W;
Length of Roll(mm):350;Warranty:2 years;
Brand Name:ZL;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Lab Two Roll Mill suitable any payment way;
Key Selling Points:Long Service Life;Packaging Detail:Lab Two Roll Mill price For Rubber Plastic is packed in a polybag, then packed as export safety wooden case;
Condition:New;Power (kW):2.8;
After Warranty Service:Video technical support,Online support;Local Service Location:None;
After-sales Service Provided:Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;Drum revolutions ratio:Standard revolutions ratio 1:1.25;
Warm-up time:room temperature ~ 150 ℃ about 20min;Roller dimensions:diameter 3.9 "* L13.7";
Rotation Speed of Front Roll(rpm):1 - 19;Diameter of Roll(mm):160;
Cooling Mode:Water Cooling ( option);Place of Origin:Guangdong China;
Mixed capacity:0.5-1kgs / 2-3kgs / 5-7 kgs;Package Preview:https://sc01.alicdn.com/kf/HLB1HvsYJAPoK1RjSZKbq6x1IXXaa.jpg_640x640.jpg;
Power source:AC380V, 15A;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,rubber and plastic industry;

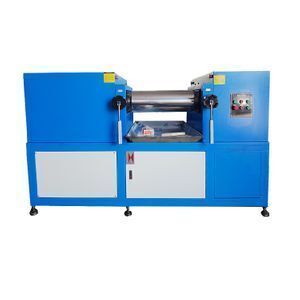

Rubber Plastic Lab Two Roll Mill Price





Product Description



Introduction:

Rubber Plastic Lab Two Roll Mill is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory



Application:

Rubber Plastic Lab Two Roll Mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.



Technical parameters:

Model





ZL-3018-76

ZL-3018-120

Zl-3018-160

ZL-3018-200

Zl-3018-230

Zl-3018-300

ZL-3018-400

Diameter of roll

mm

76

120

160

200

230

300

400

Length of roller face

mm

300

350

350

500

650

650

900

Mixing Capacity

kg

0.002-0.6

0.002-2

0.002-2.8

0.002-5

0.005-10

1-15

5-30

Front roll surface speed

rpm

19

19

19

19

19

19

19

Friction ratio



1:1.30

1:1.35

1:1.35

1:1.35

1:1.27

1:1.27

1:1.27

Roll gap range

mm

0-3

0-6

0-6

0-8

0-12

0-12

0-15

Driving Power

KW

1

1.5

2.2

7.5

11

30

37

Heating Mode

Electricity heating , Oil Heating ( option)

Cooling Mode

Water Cooling ( option)

Roll Temperature

Room temperature -- 300℃

Roll Hardness

HRC 50 ~ 60

Temperature Accuracy

± 2 ℃ (we adopt the high accuracy PID micro computer controller)

Safety device

It have 6 safety buttons and safety guard is option

Machine weight

kg

160

460

660

860

1960

2960

3800

Overall dimension

mm

1100x400x1180

1100x550x1380

1200x650x1380

2200x750x1380

2200x950x1580

2600x950x1580

5295x1789

x170

Power

380V 3 phase 50-60hz



Feature:

1. Construction of mill rolls: drilled roll, bored roll, grooved roll



2. We can design speed ratio as per customers' formula and processing requirements.



3. Frame, frame cap and base are welded and treated by annealing for stress relieving.



4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.



5. Brake and emergency stop device can ensure the safety of personnel and equipment.



6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.



7. Human nature designed controlling system ensure labor safety.



8. Methods of adjusting roll nip: manual or electric



Intelligent control panel and PLC control system:

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.





Related products







 Click here >>>> For 10% discounts!!!

About us

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total 80 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.





 Click here >>>> More Factory Prices and Shipping!!!

FAQ

1. How to choose the most suitable Mechanical Equipment ?

 Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
 At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
 Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
 Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

 Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Iran, Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
 Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
 Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
 The product is shipped with an operating instructions and video of English version.
