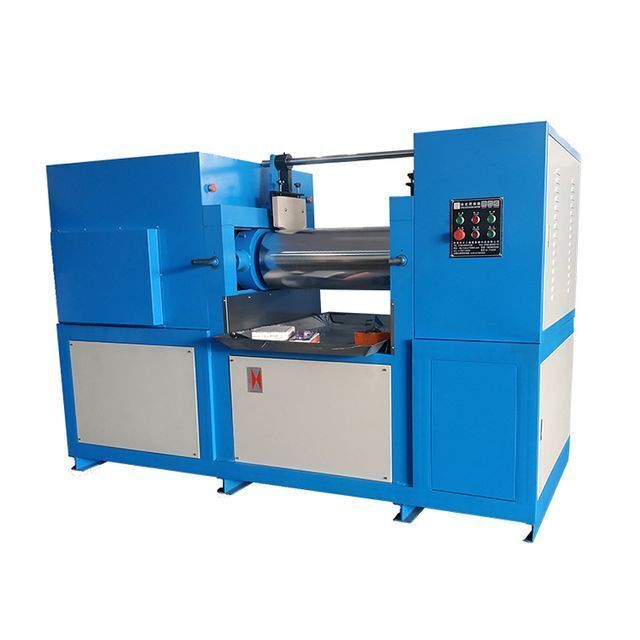

Laboratory Silicone Plastic Granule Process Two Roller Rubber Open Mixing Mill Machine

Supplier: Dongguan Zhongli Instrument Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Cathy Lin
Price: $3100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	2.2;	Key Selling Points:	High Safety Level;
Core Components:	PLC,Engine;	Local Service Location:	None;
Roller hardness:	HRC 50 ~ 60;	Port:	shenzhen;
Packaging Detail:	Laboratory Silicone Plastic Granule Process Two Roller Rubber Open Mixing Mill Machine is packed in a polybag, then packed as export safety wooden case;	Year:	Custom;
Diameter of Roll(mm):	16 mm;	Package Preview:	;
Marketing Type:	New Product 2020;	Dimension(LWH):	9655115cm;
Drum revolutions ratio:	Standard revolutions ratio 1:1.25;	Warm-up time:	room temperature ~ 150 ℃ about 20min;
Brand Name:	ZL;	Cooling Mode:	Water cooling (option);
Video outgoing-inspection:	Provided;	Voltage:	380V;
model:	Plastic Granule Process Two Roller Rubber Open Mixing Mill Machine;	Mixed capacity:	0.5-1kgs / 2-3kgs / 5-7 kgs;
Length of Roll(mm):	35 mm;	Weight (KG):	380 KG;
Applicable Industries:	Manufacturing Plant,Rubber and Plastic Industry;	Warranty:	2 years;
Machinery Test Report:	Provided;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Two Roller Rubber Open Mixing Mill Machine;
Certification:	CE;	Temperature:	room temperature ~ 300 ℃;
Roll Ratio(Front/Back):	1:1.25;	Temperature accuracy:	± 3 ℃;
Showroom Location:	None;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;
Power source:	AC380V, 15A;	Warranty period:	2 years;
Place of Origin:	Guangdong, China;	Supply Ability:	100 Sets per Month Two Roller Rubber Open Mixing Mill Machine;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Rotation Speed of Front Roll(rpm):	1 - 19 rpm;
Roller dimensions:	diameter 3.9 "* L13.7";	Condition:	New;
Warranty of core components:	2 years;

Laboratory Silicone Plastic Granule Process Two Roller Rubber Open Mixing Mill Machine

Product Description

Introduction:

Laboratory PVC Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery

is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory

Application:

Laboratory PVC Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.

Technical parameters:

Model		ZL-3018-76	ZL-3018-120	Zl-3018-160	ZL-3018-200	Zl-3018-230	Zl-3018-300	ZL-3018-400
Diameter of roll	mm	76	120	160	200	230	300	400
Length of roller face	mm	300	350	350	500	650	650	900
Mixing Capacity	kg	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed	rpm	19	19	19	19	19	19	19
Friction ratio		1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range	mm	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power	KW	1	1.5	2.2	7.5	11	30	37
Heating Mode	Electricity heating , Oil Heating ( option)
Cooling Mode	Water Cooling ( option)
Roll Temperature	Room temperature -- 300℃
Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device	It have 6 safety buttons and safety guard is option
Machine weight	kg	160	460	660	860	1960	2960	3800
Overall dimension	mm	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789 x170
Power	380V 3 phase 50-60hz

Feature:

1. Construction of mill rolls: drilled roll, bored roll, grooved roll

2. We can design speed ratio as per customers' formula and processing requirements.

3. Frame, frame cap and base are welded and treated by annealing for stress relieving.

4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.

5. Brake and emergency stop device can ensure the safety of personnel and equipment.

6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.

7. Human nature designed controlling system ensure labor safety.

8. Methods of adjusting roll nip: manual or electric

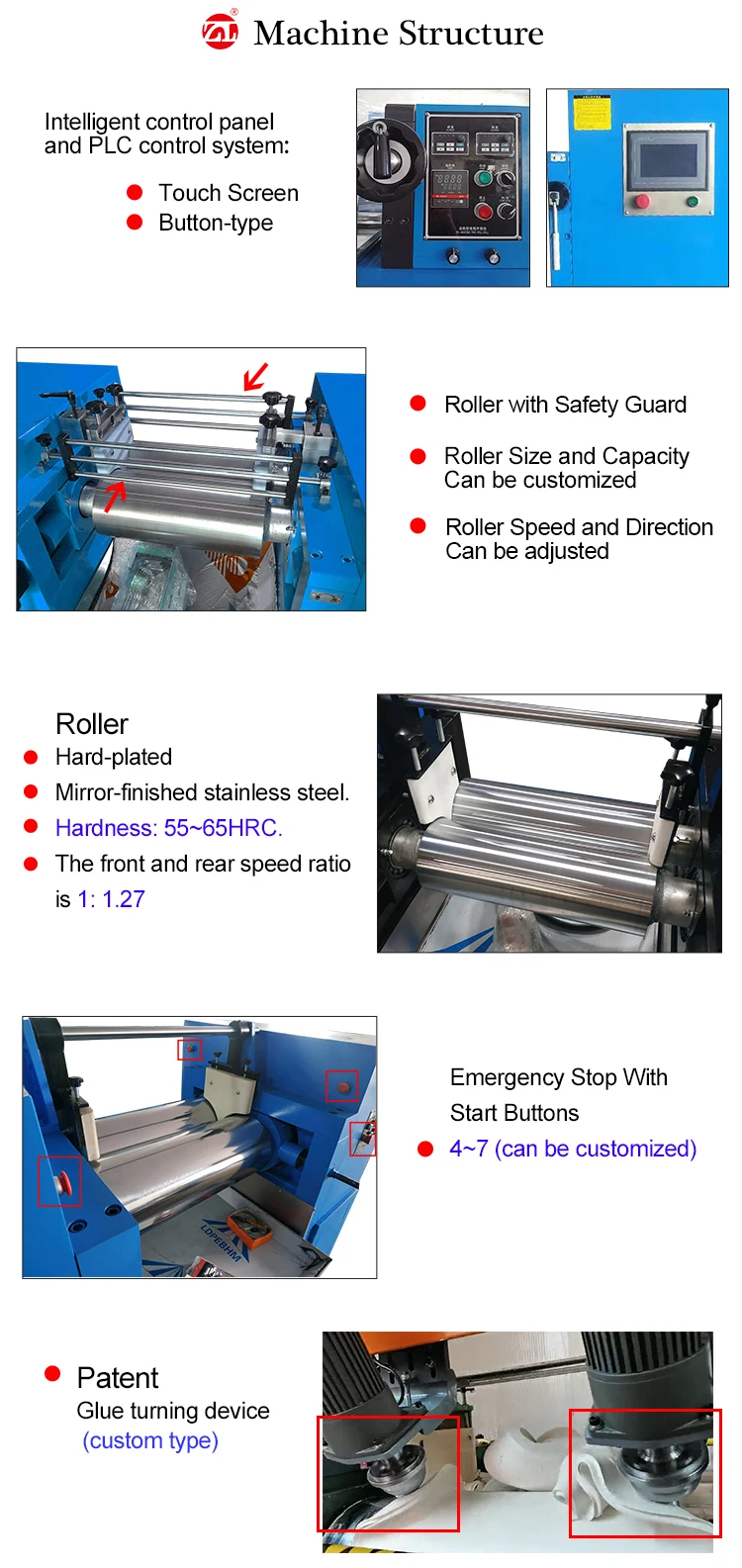

Intelligent control panel and PLC control system:

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Click here >>>> More Factory Prices and Shipping!!!

Related products

Click here >>>> For 10% discounts!!!

About us

ABOUT US

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 90 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.

Click here >>>> More Factory Prices and Shipping !!!

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
