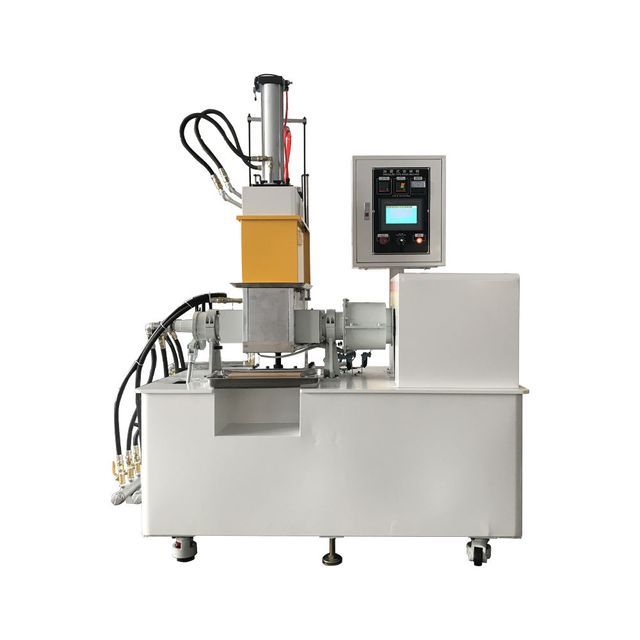

3L Internal Laboratory Rubber Plastic Products Dispersion Kneader Mixer
- 4000.00 set
| Supply capacity: | 100 sets per month Universal Colored Pencil Powder Banbury Rubber Internal Mixer | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Universal Colored Pencil Powder Banbury Rubber Internal Mixer |
| port: | Shenzhen | Air compressor: | 2.2 kW |
| Applicable industries: | Manufacturing plant, rubber and plastic industry | Warranty: | 2 years |
| Voltage: | 380V | Packaging Details: | Laboratory Universal Colored Pencil Powder Banbury Rubber Internal Mixer Manufacturer Packed In Plastic Bag And Then Packed In Export Safe Wooden Box |
| Year: | custom | Batch time (times/hour): | 8 times/hour |
| Mechanical test report: | if | motor: | 3.75 kW |
| Weight (kg): | 800 kg | Water cooling: | 0.2-0.4Mpa |
| Showroom location: | not any | Main selling points: | High security level |
| Power (kW): | 3.75 kW | Warranty: | 2 years |
| model: | ZL-3011 | brand: | ZL |
| volume: | 0.5L~50L or can be customized | Rotary motor: | 0.2KW |
| Origin: | Guangdong, China | Video outbound inspection: | if |
| Model: | Laboratory Banbury Rubber Internal Mixer Manufacturers | weight: | 800 kg |
| Package preview: | Steering angle: | 110° | |
| Total capacity (liter): | 5 liters | Serve: | OEM service |
| Core component warranty: | 2 years | Health status: | new |
| Core components: | engine | Dimensions (L*W*H): | 1.6*0.9*1.9m |
3L Internal Laboratory Rubber Plastic Products Dispersion Kneader Mixer
Equipment overview:
The plastic rubber Banbury internal mixer adopts Taiwan's technical drawings, domestic advanced technology, and imported core components. It has the characteristics of environmental protection, high efficiency, good dispersion effect, humanized design, easy loading and cleaning, etc. It has been approved for formulation research and small-scale production in factory laboratories, universities and R&D institutions. It can also be used for mixing and plasticizing rubber, plastic, and chemical production in industries such as wires, cables, electronics, shoe soles, sports equipment, and auto parts.
Product details:
plastic rubber banbury mixerSuitable for rubber, plastic, chemical and other industries. Most suitable kneading applications: EVA, rubber, TPR, shoe soles, rubber rollers, hoses, belts, sponges, vibration isolators, elastic cords, sealing materials, tires, tapes, masterbatches, pigments, inks, electric rubber parts, Chemical compounds.
Technical Parameters:
|
Model |
unit |
ZL-3011 -0.5 |
ZL-3011-1 |
ZL-3011-3 |
ZL-3011-5 |
ZL-3011-10 |
ZL-3011-15 |
ZL-3011-20 |
|
volume |
L |
0.5 |
1 |
3 |
5 |
10 |
15 |
20 |
|
motor |
kilowatt |
1 |
2.2 |
5.5 |
7.5 |
15 |
twenty two |
30 |
|
rotary motor |
kilowatt |
0.2 |
0.2 |
0.4 |
0.4 |
0.75 |
1 |
1.5 |
|
turning angle |
|
110 |
110 |
110 |
110 |
110 |
110 |
110 |
|
Air compressor |
kilowatt |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
5.5 |
5.5 |
|
water cooling |
MPa |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
|
electro-thermal |
kilowatt |
0.8 |
0.8 |
1.2 |
1.8 |
1.9 |
2.1 |
4 |
|
weight |
Kilogram |
500 |
800 |
1000 |
1200 |
2300 |
2800 |
4500 |
|
Note: electric heating, water cooling (optional) |
||||||||
Features of Dispersing Kneader:
1. Automatic temperature and time control system, providing 100% mixing effect.
2. Easy to clean the cavity and change the color.
3. The output of 6~10 minutes/batch is equivalent to 2 open mills.
4. Pressurized and sealed mixing chamber provides high mixing performance and prevents environmental pollution.
5. Easy installation, operation and maintenance, low operating cost.
