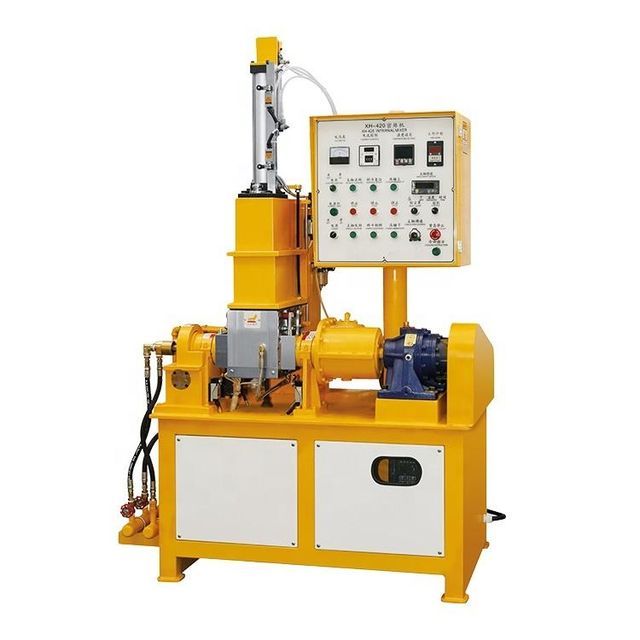

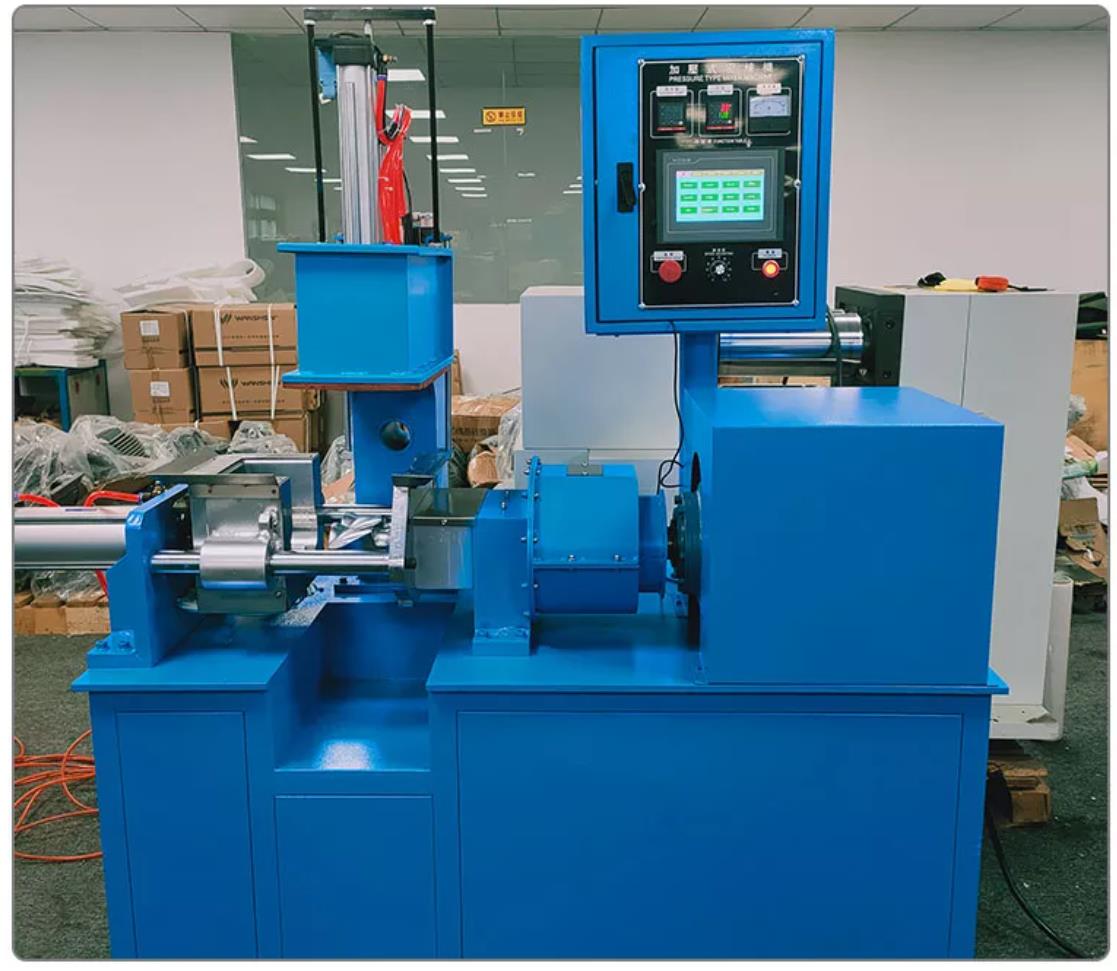

1L 3L 5L 10L Rubber Laboratory Banbury Internal Mixer Rubber Kneader Mixer Laboratory Powder Rubber Processing Test Machine

Supplier: Guangdong Newgoer Instrument Co., Ltd.
Region: Guangdong, China
Contact: Ms Eva H
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key words:	internal mixer	Core components:	Programmable controller, motor
Drive bearing:	Japan Seiko Co., Ltd.	Showroom location:	not any
Total capacity (liter):	5 liters	Rotation angle:	110°
Power (kW):	7.5 kW	motor:	Taiwan Sibikang
OEM and ODM:	support	Voltage:	380V
application:	rubber, plastic, chemical	Origin:	Guangdong, China
Marketing Type:	normal product	Pressurized cylinder:	Taiwan AirTAC
Dimensions (LWH):	1.60.91.94	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	Warranty:	1 year
Package preview:		Applicable industries:	manufacturing plant
model:	NG-ML	Tilt motor:	Taiwanese consumer goods
Rotor speed:	40/31 rpm (adjustable)	Health status:	new
Core component warranty:	2 years	Year:	custom
Batch time (times/hour):	8 times/hour	Supply capacity:	1000 sets per month
port:	Shenzhen/Guangzhou	Weight (kg):	500 kg
Main selling points:	flexible manufacturing	product name:	Kneading internal mixer
Mechanical test report:	if	brand:	Newgor
Packaging Details:	Standard Export Safe

Product Description

1L 3L 5L 10L Rubber Laboratory Banbury Internal Mixer Rubber Kneader Mixer Laboratory Powder Rubber Processing Test Machine

Summary:

The laboratory internal mixer adopts high-tech drawings, domestic advanced technology, and imported core components. It has the characteristics of environmental protection, high efficiency, good dispersion effect, humanized design, easy loading and cleaning, etc. It has been approved for formulation research and small-scale production in factory laboratories, universities and R&D institutions. It can also be used for mixing and plasticizing rubber, plastic and chemical production in industries such as wires, cables, electronics, shoe soles, sports equipment, and auto parts.

Working Standards:

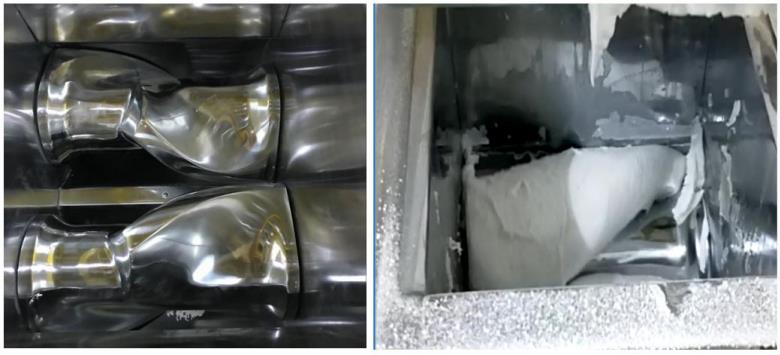

The two rotors in the mixing chamber rotate at a certain speed ratio, and the material from the feed port is clamped into the nip and squeezed and sheared by the rotors. After passing through the roll gap, it hits the "W"-shaped sharp edge of the mixing chamber and is divided into two parts. The material returns to the top along the gap between the front chamber wall and the rear chamber wall and the rotor respectively. The materials are sheared and mixed under a certain pressure and temperature in a closed mixing chamber, so that the formula materials are fully dispersed and plasticized, so that the formula can exert the best effect.

Specification:

Model	ML1/MLP1	ML3/MLP3	ML5/MLP5	ML10 / MLP10
mixed ability	1 Litre	3 liters	5 liters	10 liters
motor (Taiwan Sibikang)	3.75 kW	5.5 kW	7.5 kW	11 kW
tilt motor (Taiwan FMCG)	0.75 kW	0.75 kW	0.75 kW	0.75 kW
control method	NG-ML series: key control / NG-MLP series: PLC touch screen control
Rotation angle	110°
drive bearing	Japan Seiko Co., Ltd.
booster cylinder	Taiwan AirTAC
Rotor speed	40/31 rpm (adjustable)
heating method	Electric heating
cooling system	water cooling
temperature	NG-ML series: RT~250℃ / NG-MLP series: RT~300℃
air pressure	0.5~0.8MPa
Control System	Taiwan brand and Japan Olon, the machine is equipped with a safety interlock function.
Material	High-quality carbon steel, hard chrome plated and wear-resistant
color	yellow/blue (or customized)
strength	Three-phase AC380V 50HZ
