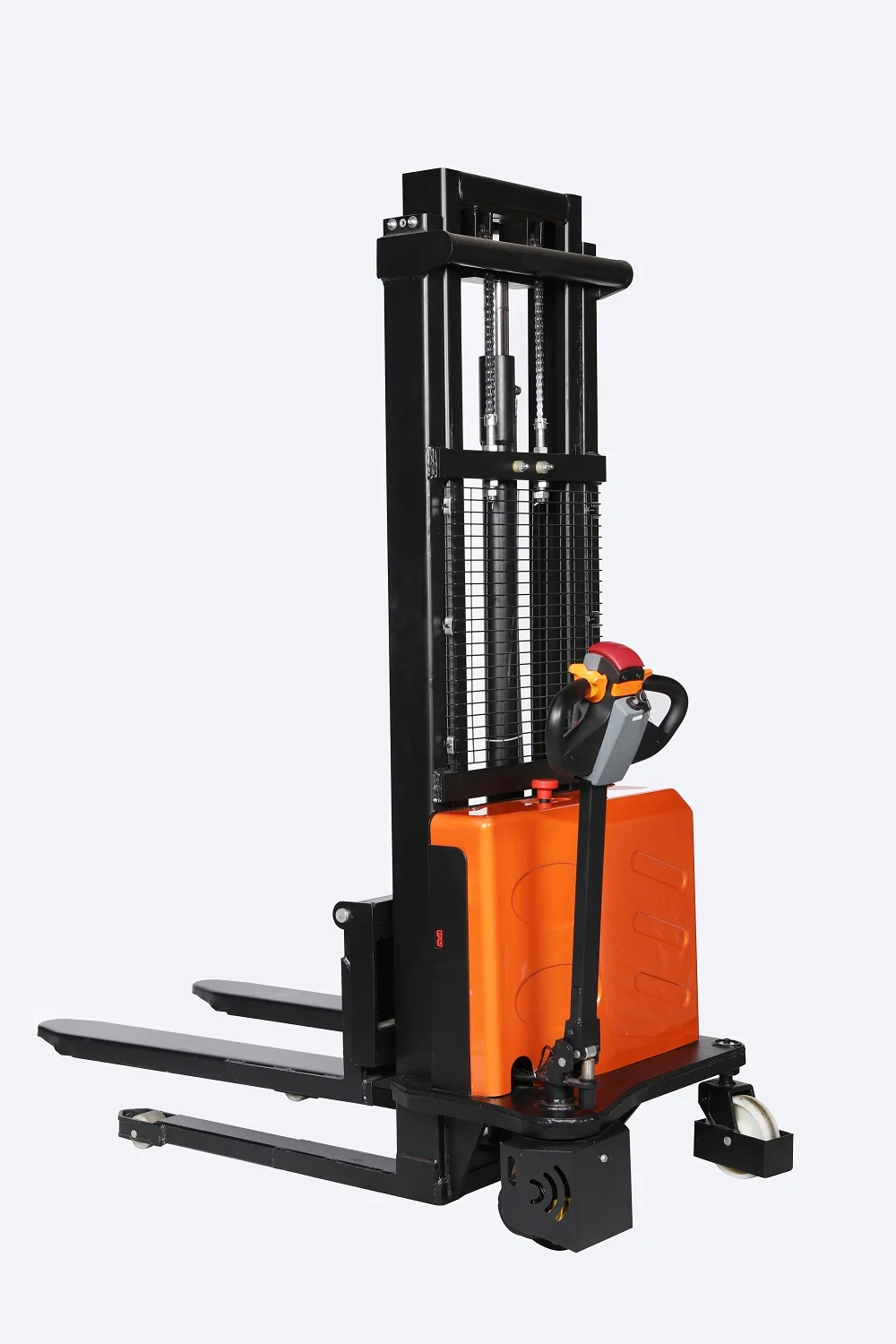

Full Electric Stacker 3300lbs Capacity 118 " Lifting Height

Supplier: Jinhua Ryder Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Andy Chen
Price: $1620.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden pallet packing;	Model Number:	CES.A1530;
Warranty:	1 year;	lower height of forks:	85mm;
lifting height:	3000mm;	Place of Origin:	Zhejiang China;
Supply Ability:	2000 Set/Sets per Month;	Loading Capacity:	1500kg;
the height of frame retraction:	2920mm;	overall dimension:	L1780xW805xH2085mm;
Port:	ningbo/shanghai;	Dimension(LWH):	L1780xW805xH2085mm;
Certification:	CE;	Condition:	New;
After-sales Service Provided:	Video technical support;	Brand Name:	HEAMI;
fork width:	690mm;	Payment Terms:	L/C,T/T;
fork length:	1150mm;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ;
Power type:	battery powered;	Product Name:	full electric stacker;

Item/Model	CES.A1530
capacity	1500kg/3300lbs
load center distance	450mm
lower height of forks	85mm
the max. height of frame	2085mm
Lifting height	3000mm
Overall dimension	L1780xW805xH2085mm
fork length	1150mm
fork width	690mm
turning radius	1334mm
max. lifting speed(unloaded/loaded)	110mm/170mm
drive motor	0.75kw
lifting motor	2.2kw
battery capacity	2x12V/85Ah
charger type	24V10A

+

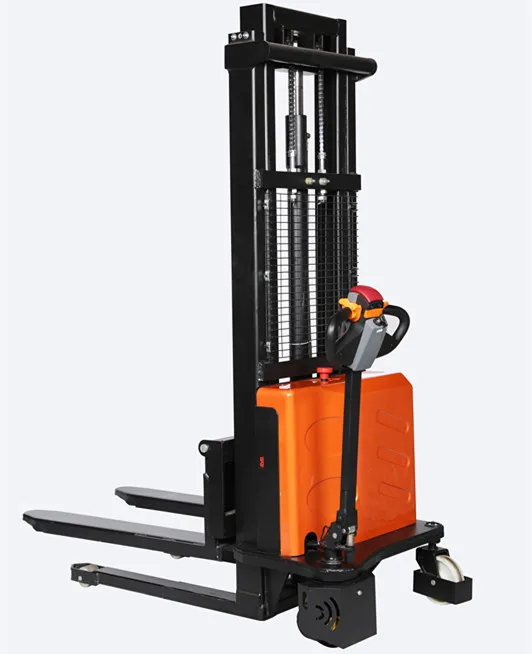

Full Electric Stacker 3300lbs Capacity 118 " Lifting Height

Features:

Capacity 1500 kgs max, Lift height 3000mm
Efficient 2.2 kW lift motor
Flexible and easily maneuverable
The perfect choice for high productivity requirements in confined spaces
Service-friendly assembly of hydraulics, electrics and batteries.
Fast lifting/fast lowering of loads

+

HM6	HM7	LNA	WTC

SLC500	HT2A	EHT	CES.A

Certifications

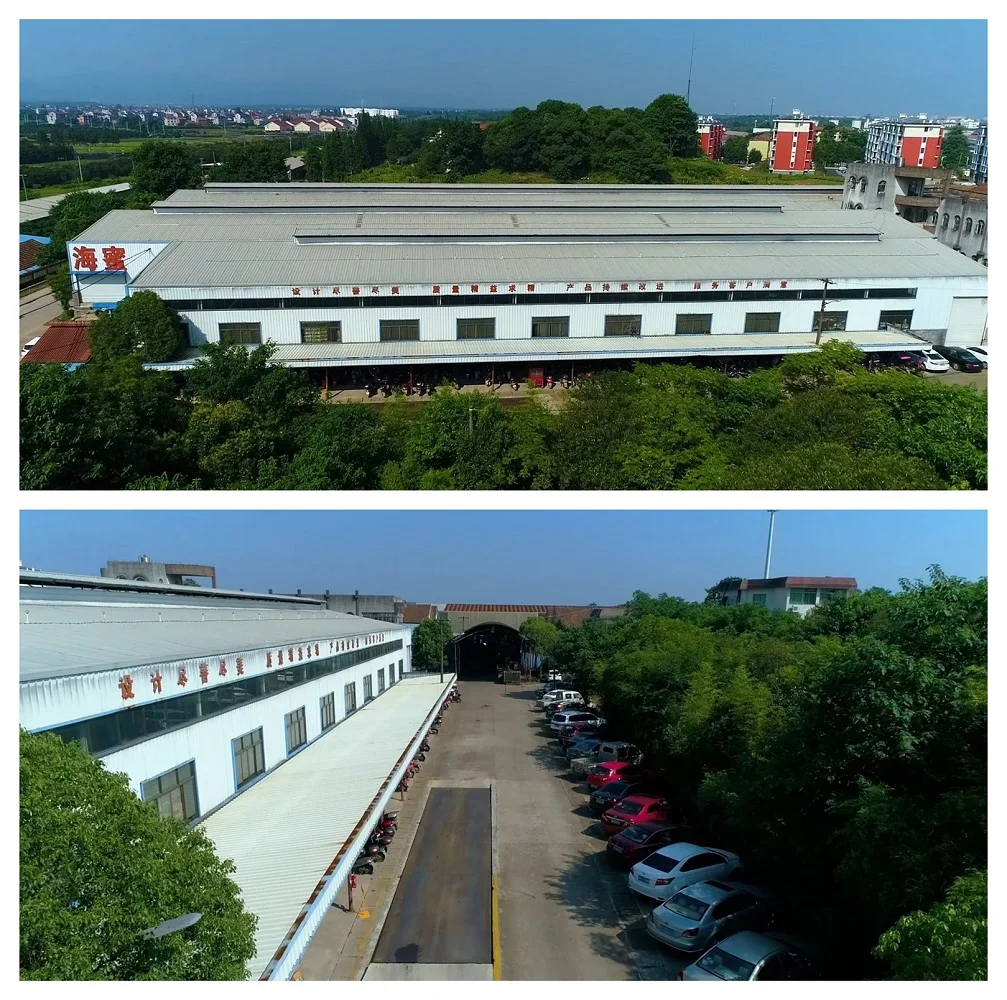

Company Information

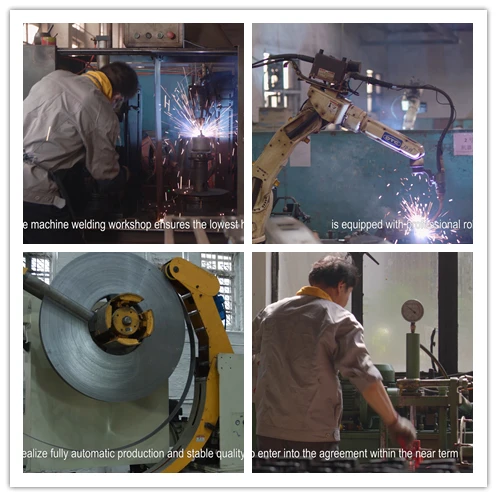

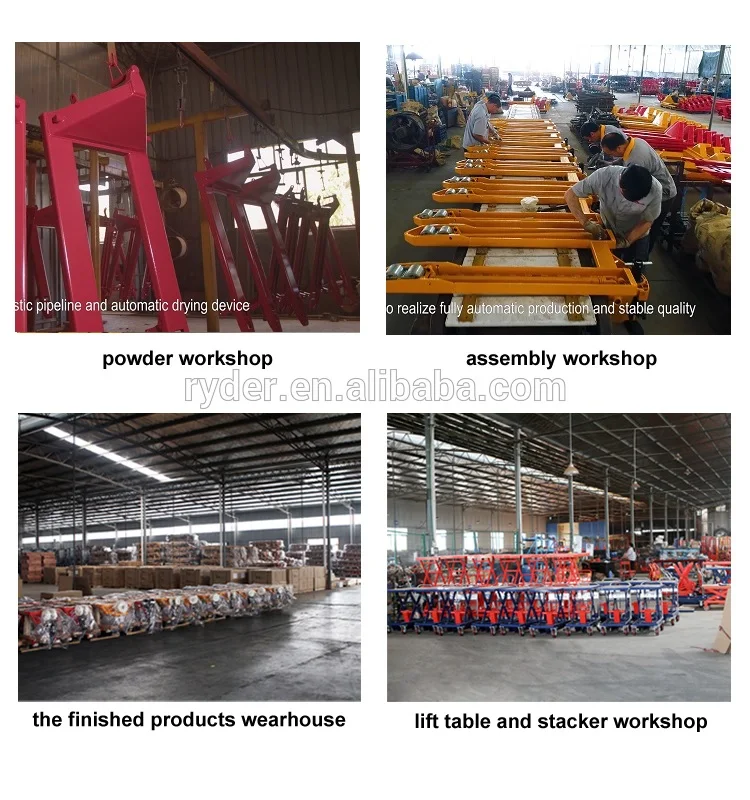

We devote to the material handling equipment since 1989

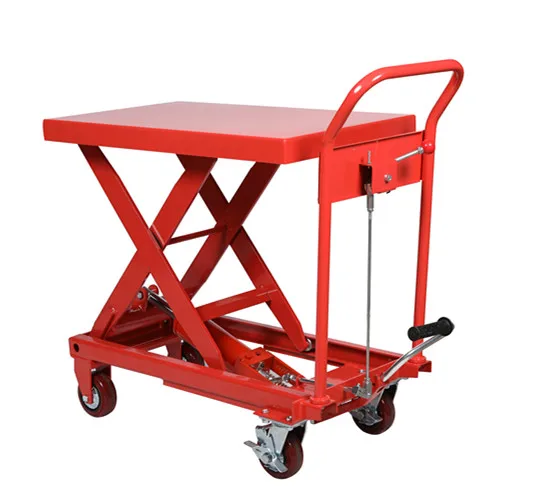

Warehouse of Tools New Hydraulic Foot Operated Double Scissor Lift Table Cart Hand Truck

Attending exhibitions worldwide

VIEW MORE

You may like

Other Products

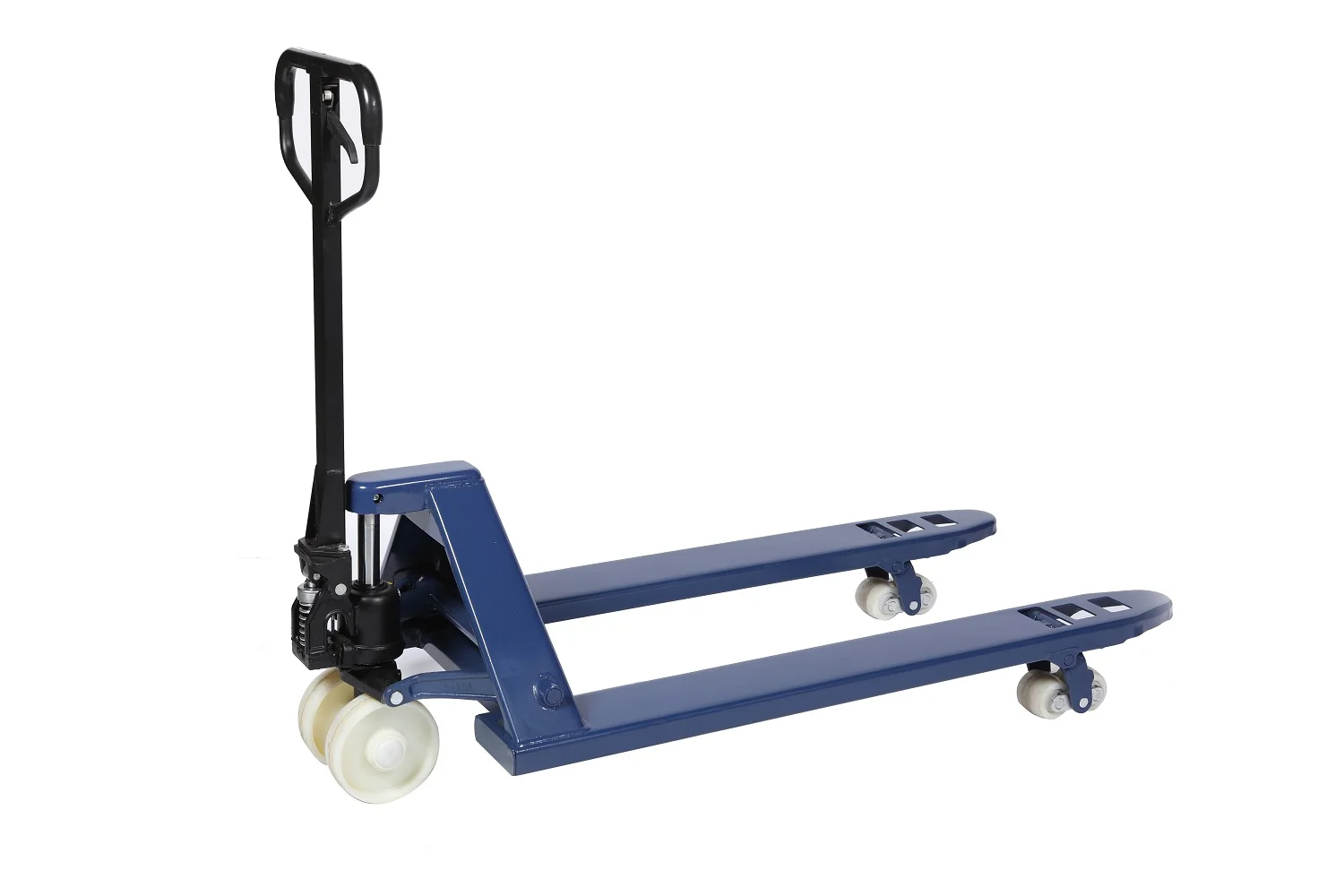

hot sale hydraulic 2.5 ton hand pallet truck pallet jacks

$125.00 / set

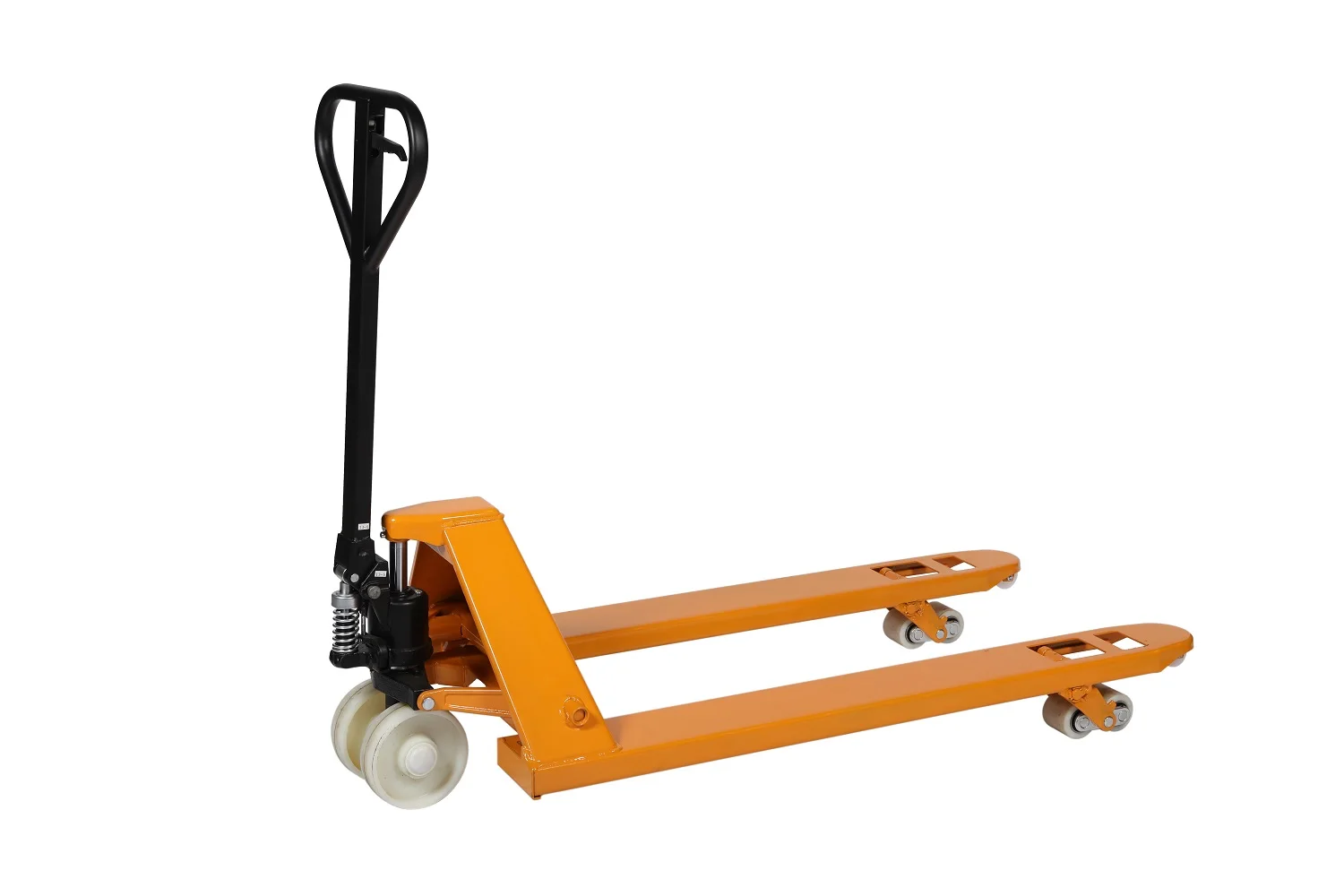

PT2 HYDRAULIC HAND PALLET TRUCK OF 2000KG / 2500KG/3000KG

$120.00 / unit

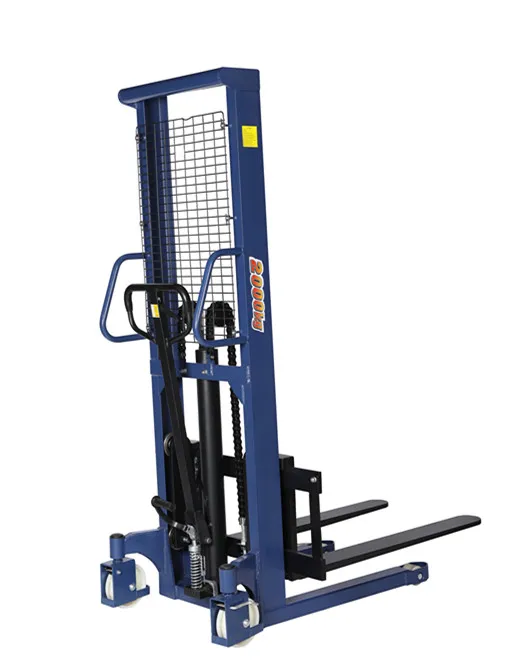

SMALL FORKLIFT PALLET STACKER HAND LIFT 2TON 1TON 1600METERS MANUAL HYDRAULIC MANUAL STACKER
