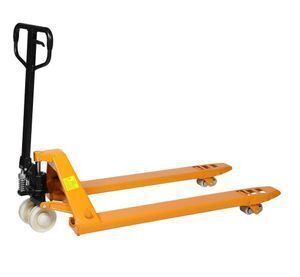

WTC HYDRAULIC HAND PALLET TRUCK OF 2500KG/3000KG

Product details
Supply Ability:8000 Unit/Units per Month pallet truck tuv;Packing:6PCS/ export wooden pallet;
Material:4mm steel;Color:optional;
Packaging Detail:pallet truck tuv: 6pcs/wooden pallet (Packing size:224x73x70cm; 144/180pcs for 1*20' container);Lift Drive / Actuation:Hand;
Delivery time:15days;Net weight:75kg;
Pump:produce by ourself;Port:Ningbo;
Place of Origin:Zhejiang China;Wheels:PU/NYLON wheel;
Model Number:HM-WTC;Factory:JINHUA RYDER FACTORY;
Rod:round solid rod;Product name:High power lift hydraulic hand pallet truck tuv;
Brand Name:HEAMI;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
2019

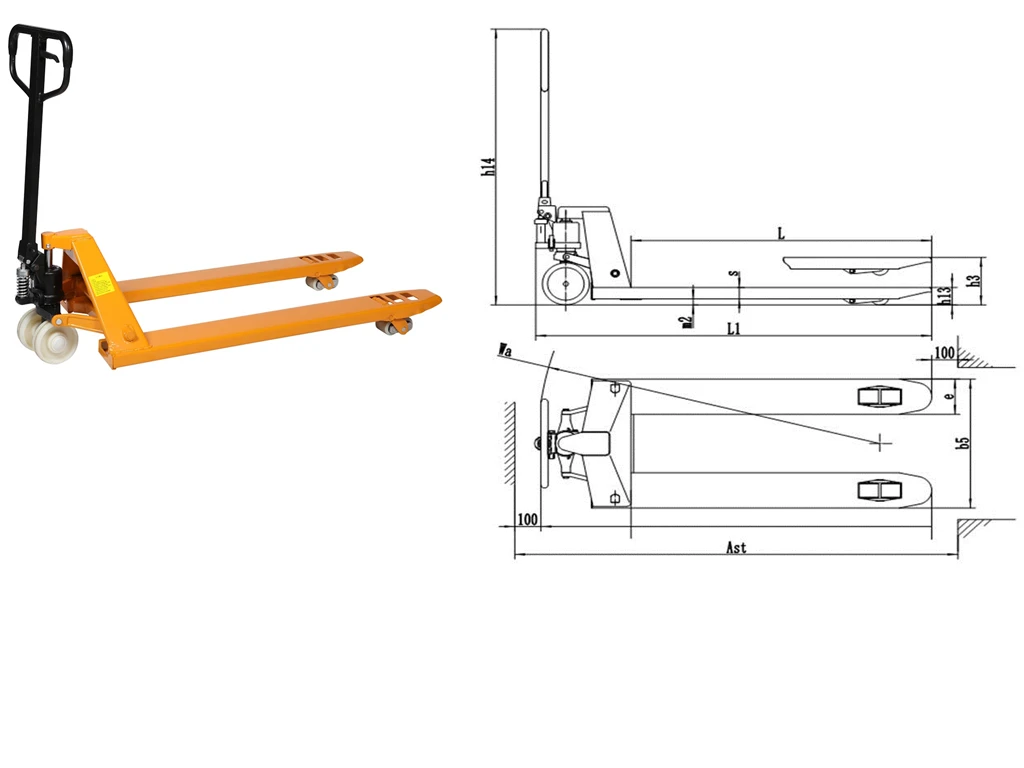

Item/ModelWTC
Rated load 2500/3000KG
The maximum height 198MM
Minimum height 83MM
Steering wheel180*50/180*70MM
Load wheel 80*60/80*70MM
WheelPU/NYLON/RUBBER
Fork width550/685MM
Fork length1150/1220MM
Single fork150MM
Gross weight75-80KG



+
WTC HYDRAULIC HAND PALLET TRUCK OF 2500KG/3000KG
Code:  WTC HAND PALLET TRUCK
  • • Exceptionally strong but light weight steel construction.
    •  With welded joints and reinforced fork tips for most durability in the toughest applications.
    • Number of pump strokes 12 times, lift height per stroke 11mm.
    • Reliable oil leak-proof hydraulic system.
    • Fork Lowering speed is controllable, operated by hand control
    • Equipped with overload valve, to prevent pump damages when goods exceed weight limit, low routine maintenance
    • Handle seat has a finger hole, more convenient for installation of control chain.



HM6HM7LNAWTC
LHT300HL350EHTCES
