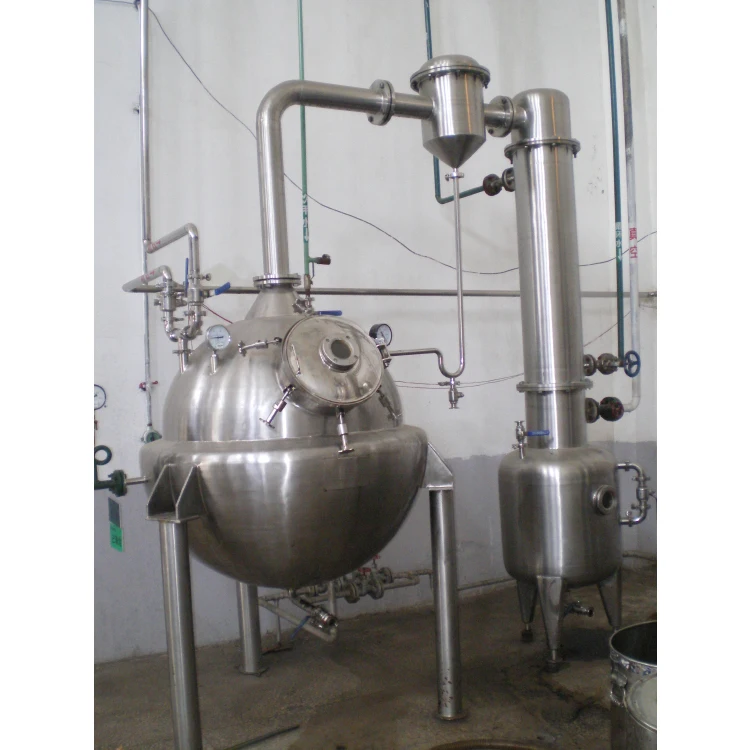

Ball vacuum evaporating concentrator for system the medicine, spherical food evaporative concentrator

Product details
Processing:Concentrator;Warranty:1 year;
Weight:custom made;Payment Terms:L/C,D/P,T/T;
Certification:custom made;Brand Name:Bingyu;
Supply Ability:30 Set/Sets per Month;After-sales Service Provided:Online support;
Dimension(L*W*H):custom made;Port:Shanghai;
Voltage:custom made;Condition:New;
Material:Stainless Steel 304/316L;Processing Types:Juice;
Power(W):custom made;Place of Origin:China;
Packaging Detail:Plastic film wrapping, cotton fixing and wooden box packing.;Applicable Industries:Food & Beverage Factory,Pharmaceutical, chemical engineering;

Ball vacuum evaporating concentrator for system the medicine, spherical food evaporative concentrator

Product Description

Application:

The spherical concentrator is mainly suitable for the concentration and distillation of heat sensitive materials and the concentrated concentration extraction of organic solvents (such as alcohol) in Chinese and Western medicine, starch sugar, dairy food, bio-pharmaceutical, chemical and other industries, which can effectively reduce the active ingredients of heat sensitive materials. damage.

Characteristics:

Concentrator totally contain beautiful material manufacturing of all adoption stainless steels of five specification parts concentration tank, condensator, gas-liquid separator, cooler and liquid receiving barrel. Concentration tank is of cilp sleeve structure. The condensator is of line pipe typr and the cooler is of tray pipe type, which can descend the adoption to mix blend to mix with such as the higher circumstance of concentrated degree or the development withdraw, and its result is better.

NO.QN-300QN-500QN-700QN-1000
Evaporation Capacity(Kg/h) 70 120145 195
Voulume(L)  300500 700 1000
Pressure of jacket(Mpa)  0.09
Vaccum Degree(mmHg)  500-620
Heating area (sq.m) 1.3 1.82.22.8
Condensing area (sq.m) 568

Weight (kg)

 380450630950
Dimension (L*W*H mm)  1900*1100*23002030*1200*2500 2100*1300*2600 2335*1520*2760
The actual technical parameters of the equipment will be changed due to the needs of the equipment. The specific technical solutions we provide for you will prevail.
