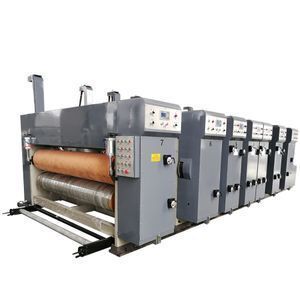

4 color flexo printing rotary die cutter boxes machine for sale

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1.5 years;	Showroom Location:	None;
Area of valid printing:	1470*1700-2300mm;	Printing speed:	80 pieces/min;
Brand Name:	KSPACK;	Supply Ability:	20 Set/Sets per Month;
Working width:	1800-3200mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Roller diameter:	480mm;	Machine:	rotary die cutter for sale;
After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;	Local Service Location:	None;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Condition:	New;
Product name:	4 color flexo printing rotary die cutter boxes machine for sale;	Has been exporting country:	European / United States / Africa/ South-east Asia etc;
Name:	flexo rotary die cutter;	Feeding way:	Vacuum Suction;
Type:	Carton box forming machine;	Port:	All the china port;
Packaging Detail:	carton wooden or according to customer need 4 color flexo printing rotary die cutter boxes machine for sale;	After Warranty Service:	Video technical support,Online support;
Applicable Industries:	carton box packing machine;	Key Selling Points:	Easy to Operate;

4 color flexo printing rotary die cutter boxes machine for sale

Product Description

Function and characteristics :

1.The machine absorb the characteristics of similar foreign models to heavy-duty as a wide concept,and strictly in accordance with mechanical standards,increase the selection of various parts of delivery systems,focusing on tone version,Chuan-ink,transmission structure of the reorganization.

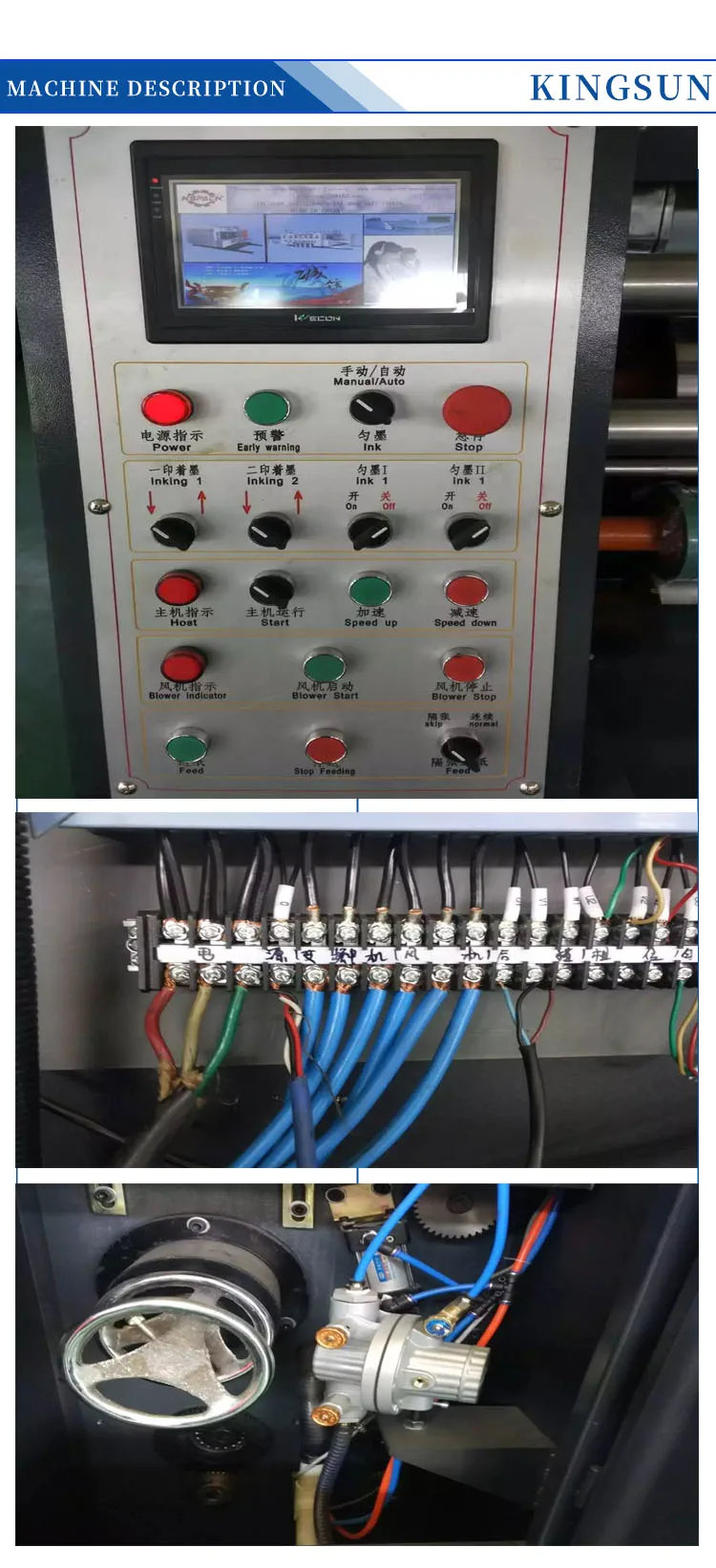

2.Control system,using the latest design concept of mechatronics,computer-phase with the planetary weeks to tune the combination version of the system to achieve non-stop adjustment,the control accuracy of 0.10 millimeters.

3.Delivery system,the transmission shaft and gear with free bond connecting ring and the cross slider drive mechanism to achieve seamless gear machine operation,greatly improved accuracy of the printing chromatography

4.Chuan-ink system that uses high-precision network transmission ink roller and rubber roller,and the other an independent motor drive,beyond the clutch to ensure the shutdown stop ink,the ink pneumatic diaphragm pumps,pneumatic lift version.

5.Cut-off machine,automatic locking,power walking,cluth protection

6.Drive gear,made use of alloy steel forging(HRC58-62),lubricating oil pump spray,extend gear life and ensure long-term printing chromatic precision.

7.Front the good luck send a paper way

8.The choice install rotary die -cutter machine

Technical parameter :

Size	2200mm(width)		2400		2600		2800
Roller diameter	480mm (roller)	480	400	480	400	480	400	480
Max feeder paper size	2100*1200	2100*1470	2300*1200	2300*1470	2500*1200	2500*1470	2700*1200	2700*1470
Min feeder paper size	320*560	350*560	320*560	350*560	320*560	350*560	320*560	350*560
Max printing area	1900*1200	1900*1500	2100*1200	2100*1500	2300*1200	2300*1500	2500*1200	2500*1500
Skip feed size	2100*1400	2100*1700	2300*1400	2300*1700	2500*2400	2500*1700	2700*1400	2700*1700
Design speed (pcs/min )	100		100		100		100
Economic speed ( pcs/min )	80		80		80		80
Standard printing block thickness	6mm		6mm		6mm		6mm
Power	18kw		18kw		18kw		18kw
Weight	13T		13.5T		14T		14.5T
Main motor	7.5kw		7.5kw		7.5kw		7.5kw
Air pump power	7.5kw		7.5kw		7.5kw		7.5kw
