Corrugated Cardboard Slotting Machine RS4 Corrugated Box Slotting Die Cutting Machine

Supplier: Dongguang A-Pack Machinery Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr andy wang
Price: $7500.00 / 1 - 1 sets
$7000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	3500 kg	After-sales service provided:	On-site service of overseas engineers, free spare parts, on-site maintenance and repair services, on-site installation and commissioning and training, video technical support, online support
Keyword one:	Box making machine	Name:	Corrugated cardboard rotary slotting machine RS4
Core component warranty:	1 year	Health status:	new
Local service location:	Egypt, Italy, Colombia	Mechanical test report:	if
Video shipment inspection:	if	Applicable industries:	Manufacturing plants, machine repair shops, retail, construction, advertising agencies
Keyword two:	cardboard cutting machine	Core components:	Gearboxes, gears, bearings
Main function:	slotting, chamfering, creasing	Function:	Corrugated Cardboard Cutting Machine

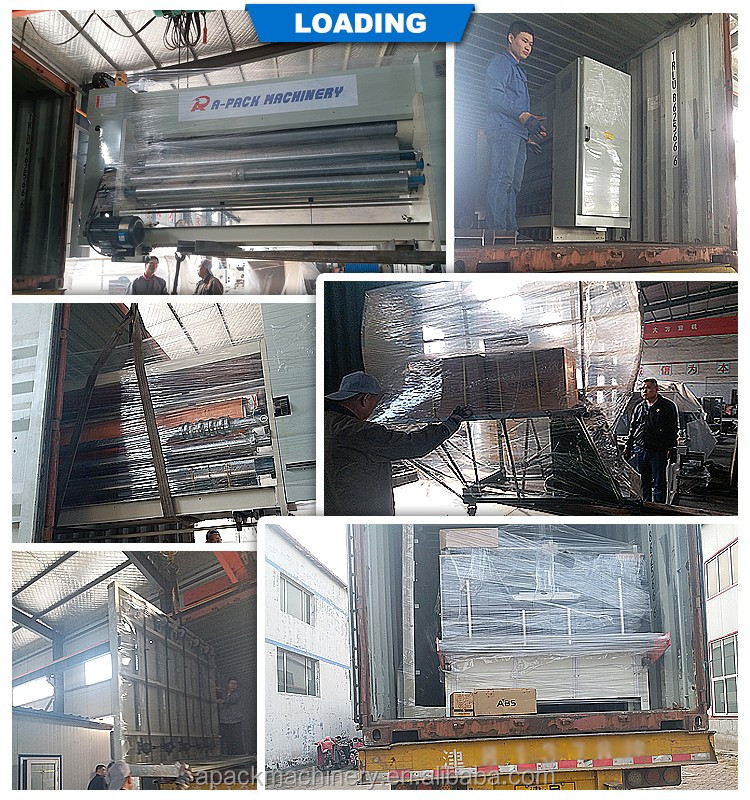

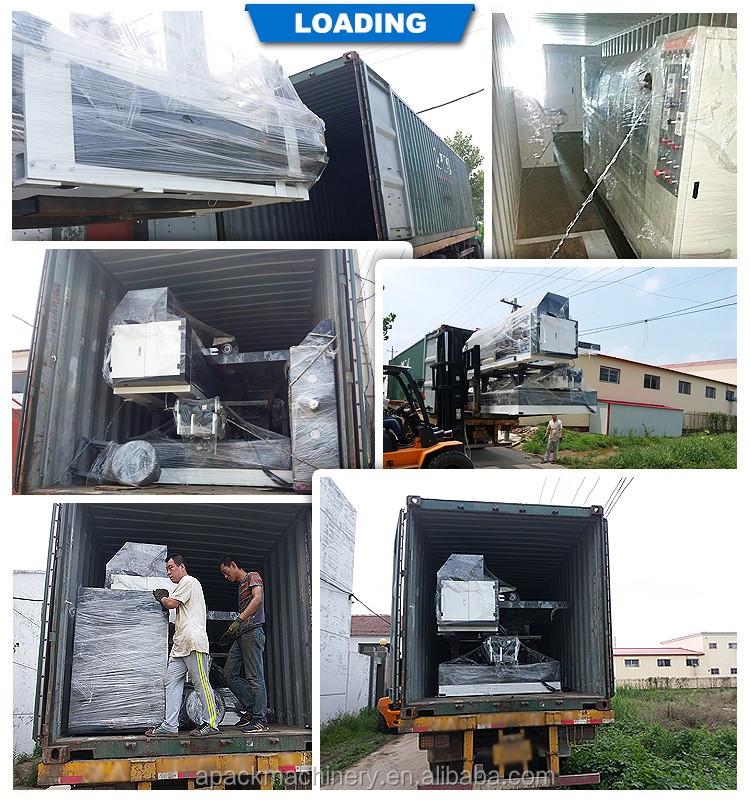

Packaging Details:	The packing box machine is wrapped with plastic film and fixed in the container with strong steel wire.	Packing speed:	0-60 tablets/min
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Packaging Materials:	corrugated cardboard
brand:	apcak	Type of machine:	Economical manual carton machine
Warranty:	1 year, 1 year	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Showroom location:	Egypt, South Korea	Marketing Type:	New Products 2020
Main selling points:	high productivity	port:	Tianjin
Supply capacity:	20 sets per month

product display

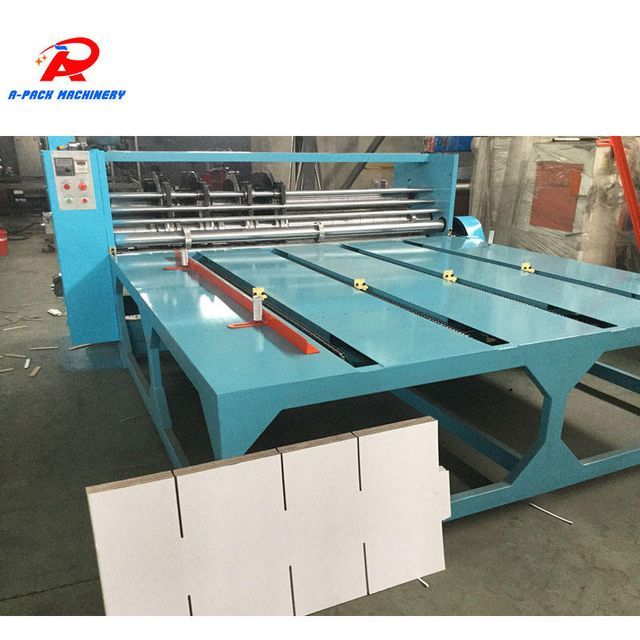

rotary slotting machine with chain feeder, creasing slotting machine,

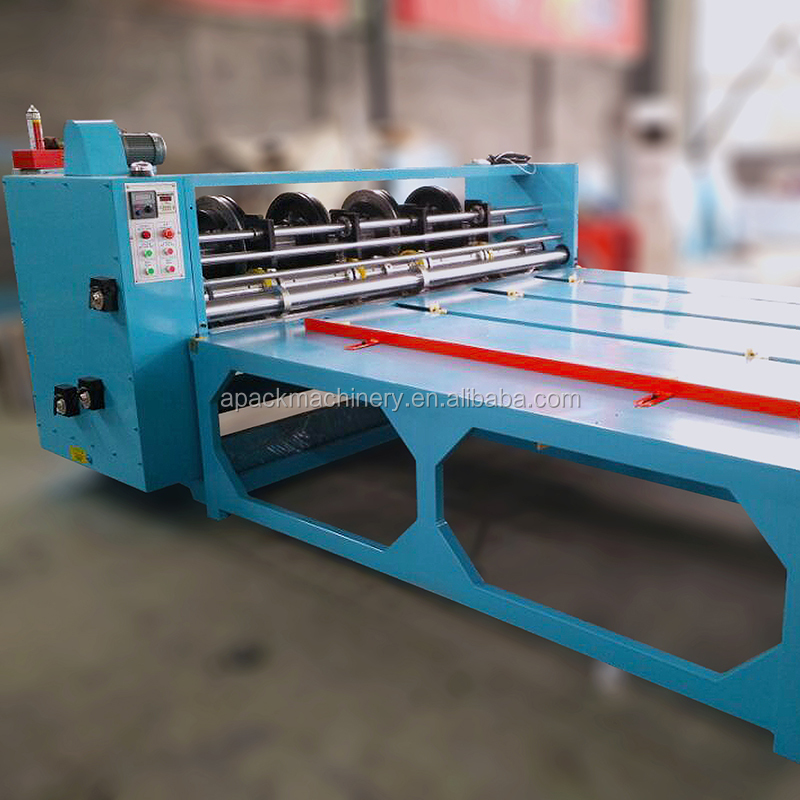

Corrugated cardboard slotting machine

scope:

Model	unit	Diameter 400	Diameter 480	Diameter 535	Diameter 600	Diameter 735
Maximum speed	pieces/minute	60	60	60	60	60
Maximum paper size	mm	1220*2400/2600/2800	1450*2600/2800/3000	1600*2600/2800/3000	1800*2600/2800/3000	2280*2600/2800/3000
Minimum paper size	mm	350*600	400*600	420*600	420*600	500*600
Slot width*depth	mm	7*300	7*350	7*400	7*450	7*550
phase adjustment		Electric 360	Electric 360	Electric 360	Electric 360	Electric 360

Main functions and features:

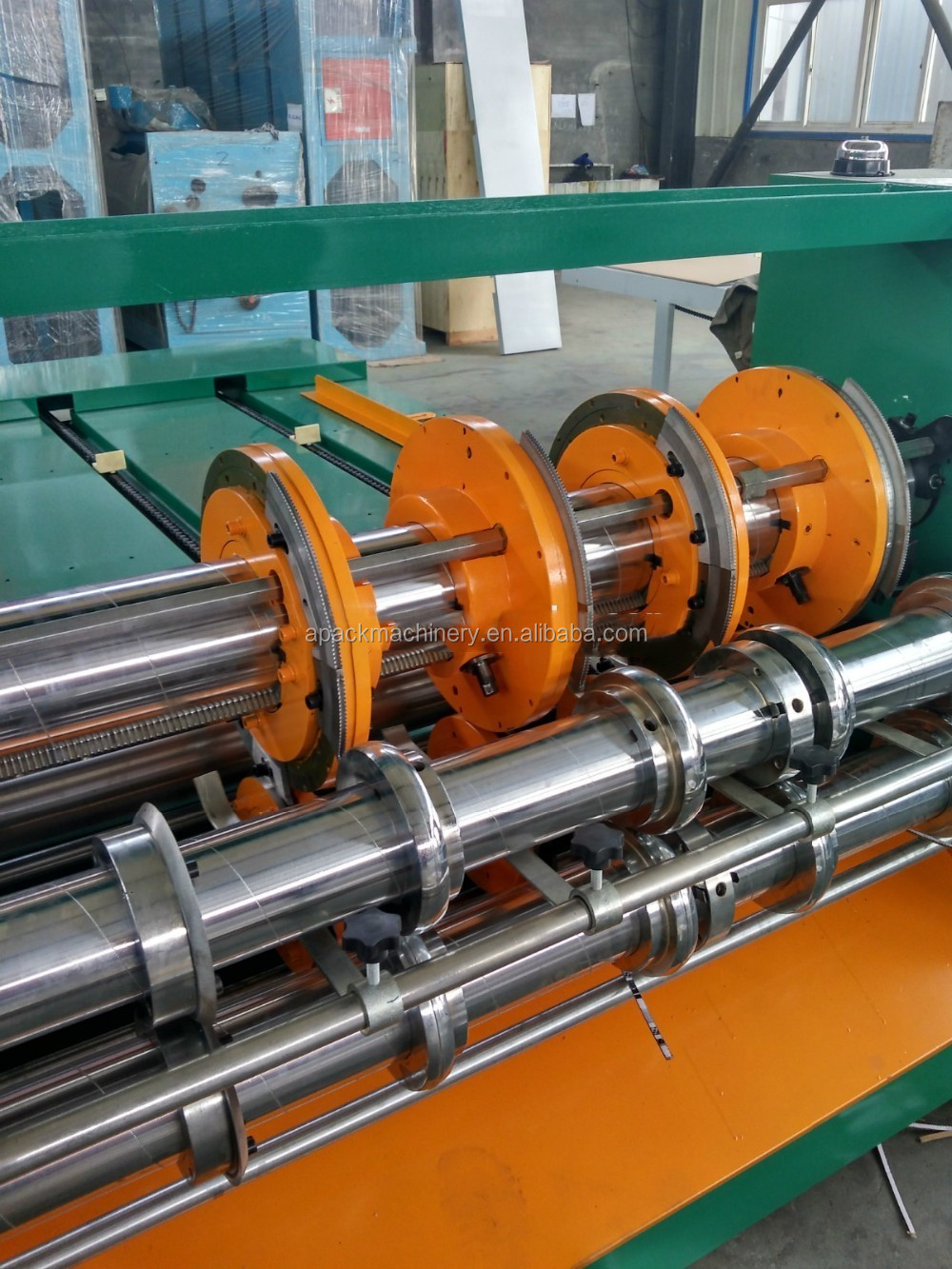

1) The corrugated cardboard rotary slotting machine RS4 and the corrugated box slotting die-cutting machine adopt the chain feeding method, and the positioning of the bilateral stoppers ensures accurate paper feeding.

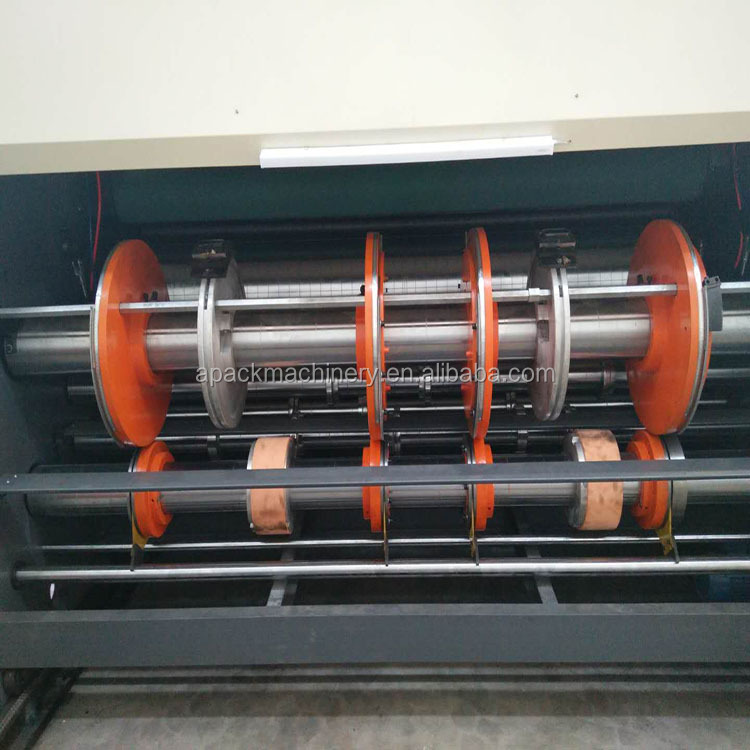

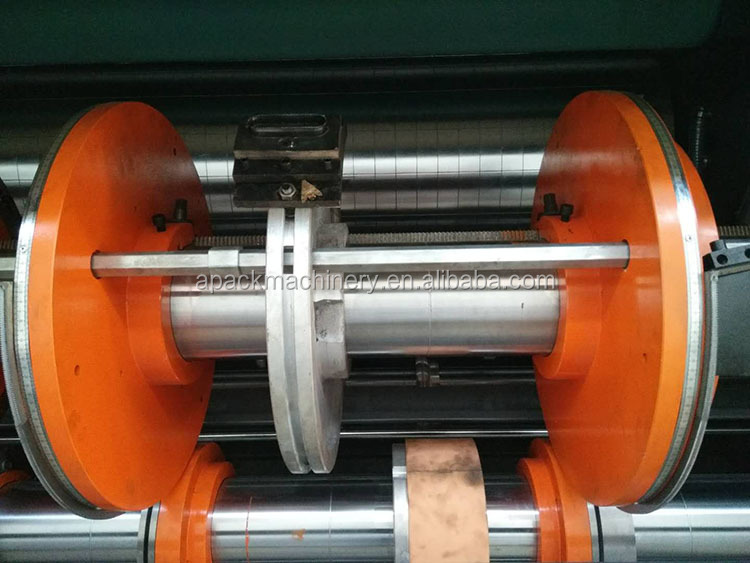

2) The height of the box is adjusted to four knives synchronously, the length is adjusted, the upper and lower press knives press the line, the paper cutter presses the paper press bar,

Linkage shifts save order conversion time.

3) The phase adopts a planetary gear structure, electric 360-degree adjustment, and digital display.

4) The transmission of the machine adopts the cross slider structure, and the automatic spraying type is adopted.

Lubricate, circulate oil supply, the gears are connected by free keys, remove the connecting rod

clear.

5) The electric appliance adopts international famous brand, and the bearing adopts Hami high-speed rolling bearing, which has stable performance.

6) Punching and buttoning device and free version four-die-cutting device are optional

detailed image
