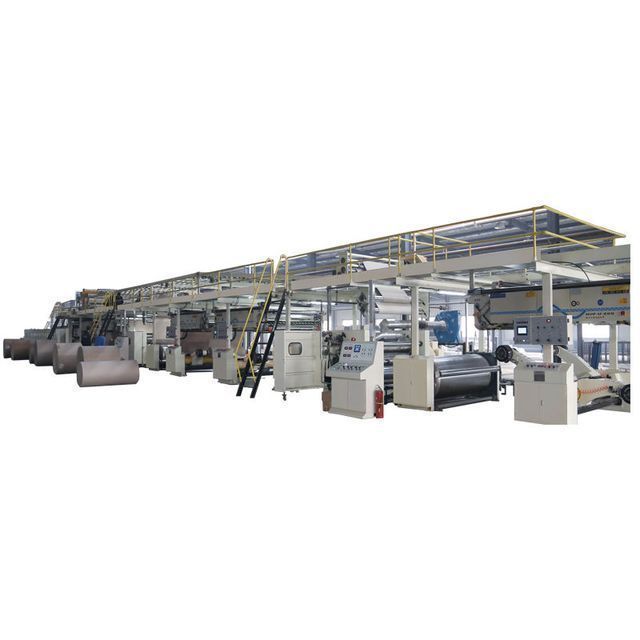

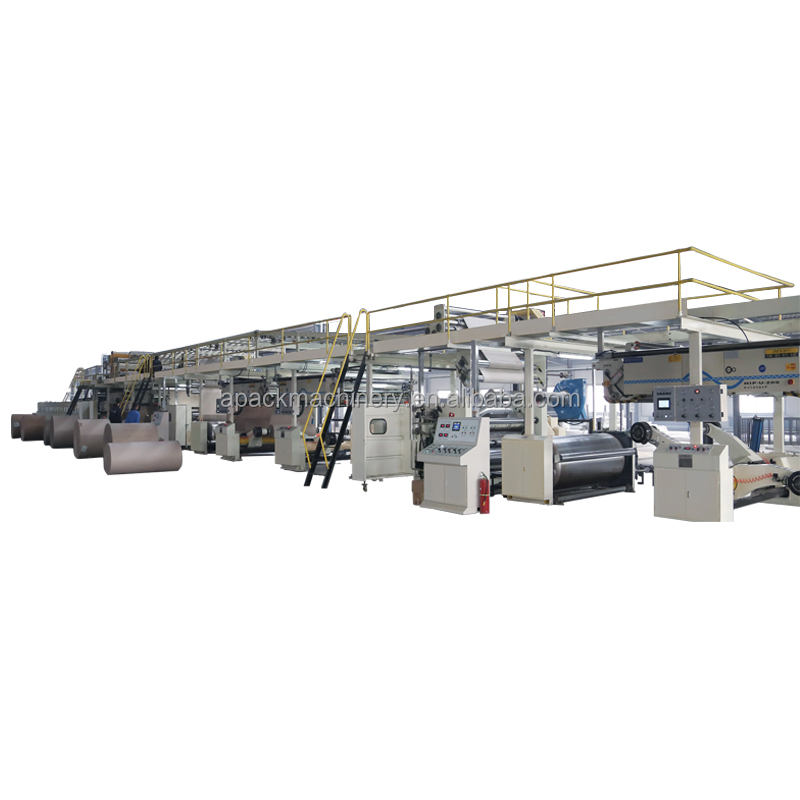

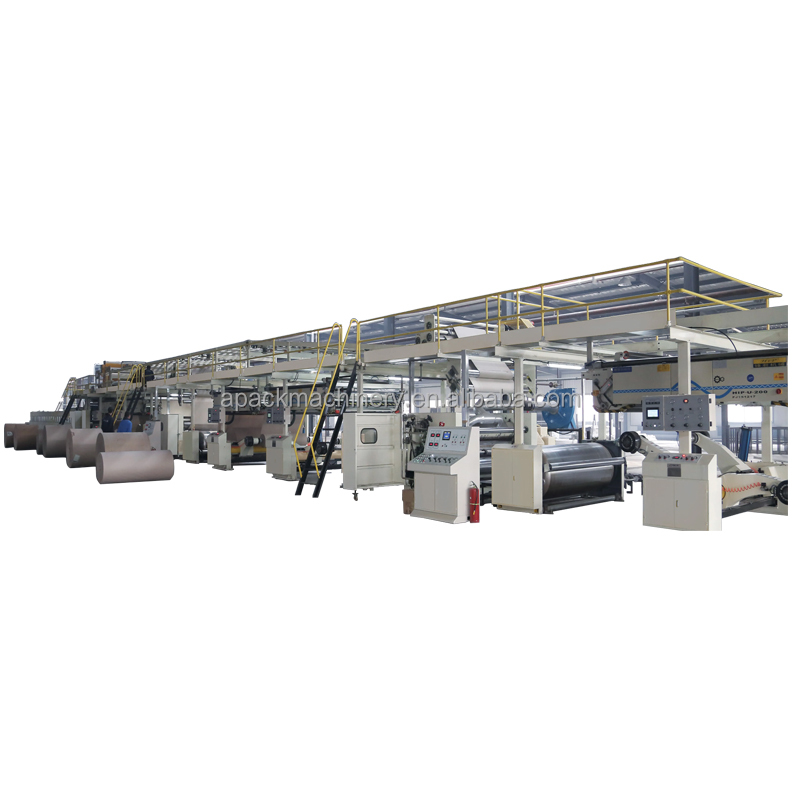

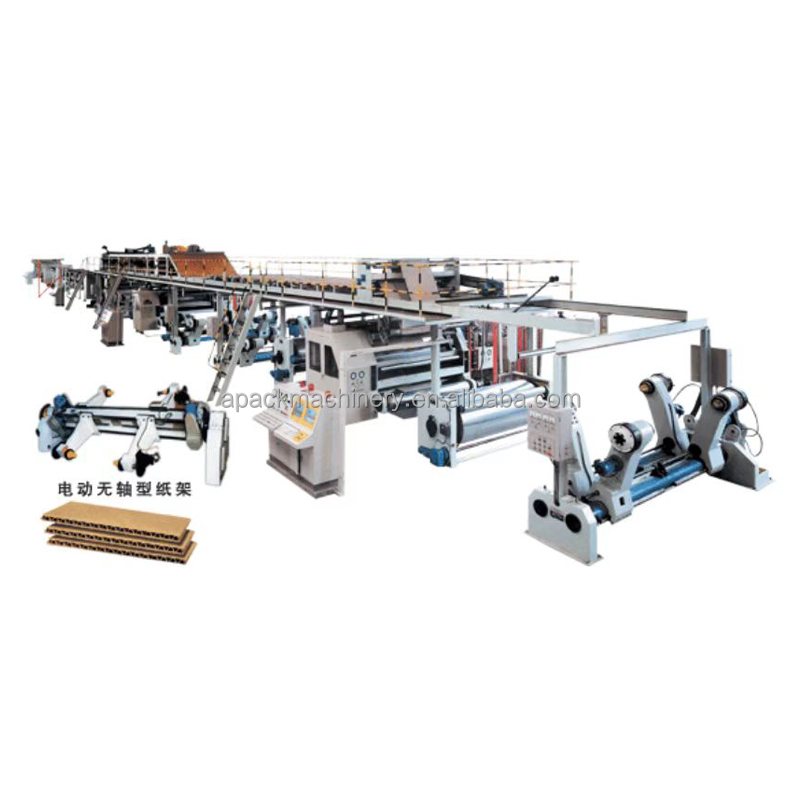

corrugated cardboard production line

main specifications

Model: WJ150-18003Layer corrugated box production line

1. Design speed: 150m/min

2. Normal working speed: 120-130m/min

3. Manufacturing width: 1800mm

4. Production line length: about 70 meters (the specific length is subject to the foundation map)

5. Note: The roll paper used to test the production speed should meet the following requirements:

*Grade: lowest. B*moisture content: 11%±1%

*Face paper: 100~150g/m2 *Backing paper: 100~150g/m2

*Corrugated paper: 105-180g/m2

6. Corrugated type: A, B, C, E corrugated (according to customer requirements)

7. Steam requirements:

Steam volume: 1500-1800Kg/Hr Max. Pressure: 1.6Mpa

Atmospheric pressure: 0.8-1.25MPa

8. Voltage: 380V 50Hz three-phase or four-phase

9. Equipment direction: left or right transmission will be according to customer requirements

10. The total power of the equipment: about 245 kilowatts, the common power of the equipment: 170 kilowatts

Remarks: Buyer supply part:

Air compressor and glue pipeline

Mains, wires from the operator box to the mains.

Water supply, pipes and barrels.

Water, electricity, gas, the main foundation.

Test machine Use raw materials (paper roll, cornstarch, caustic soda, borax) to test machine

Machine oils, lubricating oils and high temperature lubricating oils.

Food for installation engineers, hotels and enough workers to help install and test machines.

Boiler 2T

quality assurance

1. Warranty period: one year after acceptance

2. During the quality guarantee period, the seller is obliged to provide technical assistance to the buyer to ensure normal production. During the warranty period, if any defects or failures are proved to be caused by the seller's bad materials, wrong design, improper manufacturing and assembly process, the seller will send its technical personnel immediately after receiving the buyer's written information.

3. During the warranty period, if it is confirmed that any defects or failures are caused by the buyer’s improper use of materials and improper operation and maintenance, the seller will send its technical personnel to the buyer immediately after receiving the buyer’s written information. International air tickets (if necessary), local transportation and accommodation will be borne by the buyer.
