Metal Aluminum Automatic Punching Machine Punching Machine For High Output Aluminum Foil Container Making Machine
- 25000.00 1 - 2 sets
- 24990.00 >=3 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Automatic level: | automatic | Dimensions (L*W*H): | 7.2m*6.5m*3.9m |
| Materials used for packaging: | Metal | Packaging Details: | Standard export packaging |
| Key machines: | Sealing machine, packaging machine, coding machine | weight: | 11 kg |
| Health status: | new | Body treatment: | heat treatment |
| Supply capacity: | 20 sets per month | Year: | 2022 |
| Package preview: | Origin: | Shandong | |
| port: | Tianjin Shanghai Qingdao | Automatic type: | Fully automatic or semi-automatic |
| brand: | Besco | Electric control cabinet: | European Standard, Schneider, Delta |
| Mold: | One-chamber or multi-chamber type | Voltage: | 380v or customized |
| Lubrication method: | automatic lubrication | application: | food container making machine |
| Advantage: | High precision, high stability | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| After-sales service provided: | On-site installation, commissioning and training | strength: | 3.7-37 kW |
| Mold material: | SKD11 | model: | bra |
| Frequency Converter: | Adjust punching speed | Mechanical Capabilities: | 60-200 times per minute |

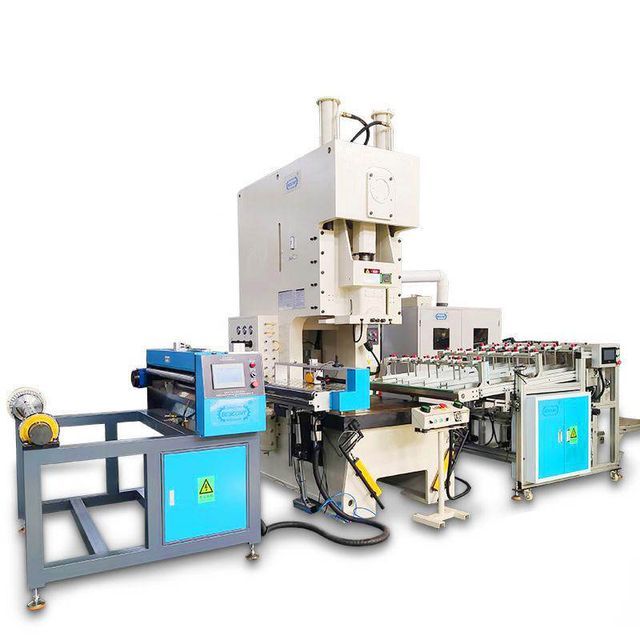

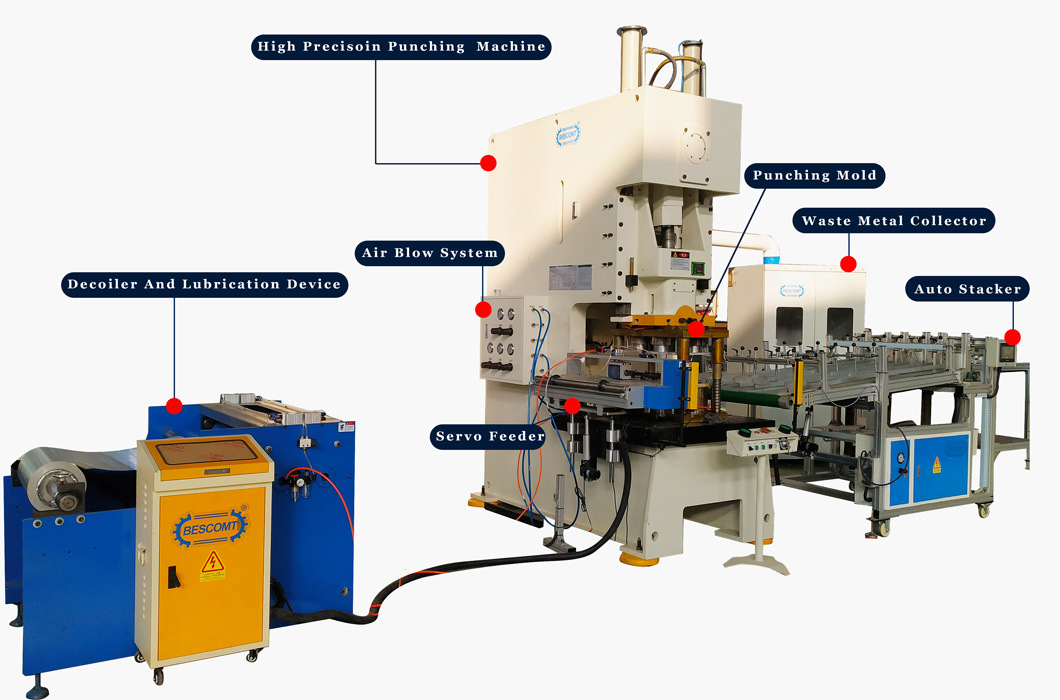

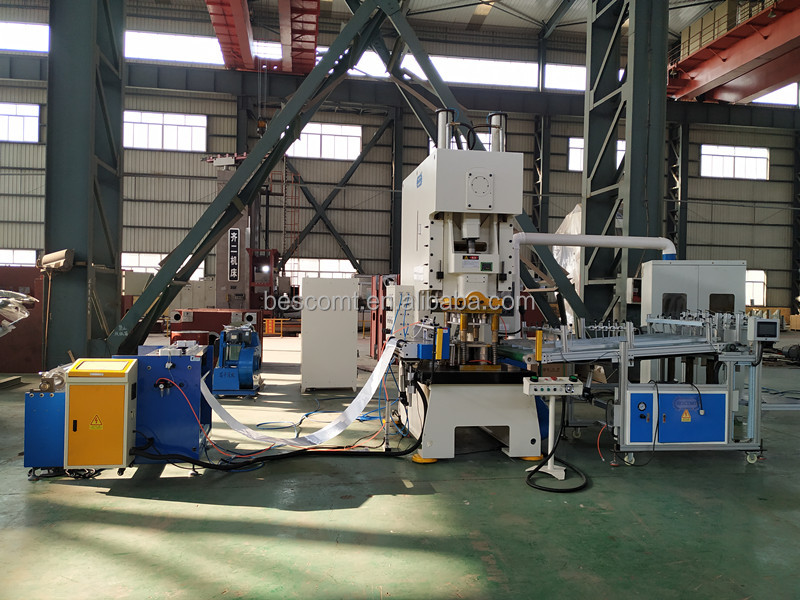

Production line display
This line worksautomatically.Workers control and regulate the production line through electrical controls
equipment.
equipment.
The foil feeder is equipped with an automatic lubricating device, which can automatically lubricate the aluminum foil. The foil feeding machine provides the appropriate amount and length of aluminum foil supply, which is controlled by the servo system.Siemens, which guaranteeshigh precisionstep.
.We can also design and manufacture according to customer's requirements and customer's target price.
.We can also design and manufacture according to customer's requirements and customer's target price.

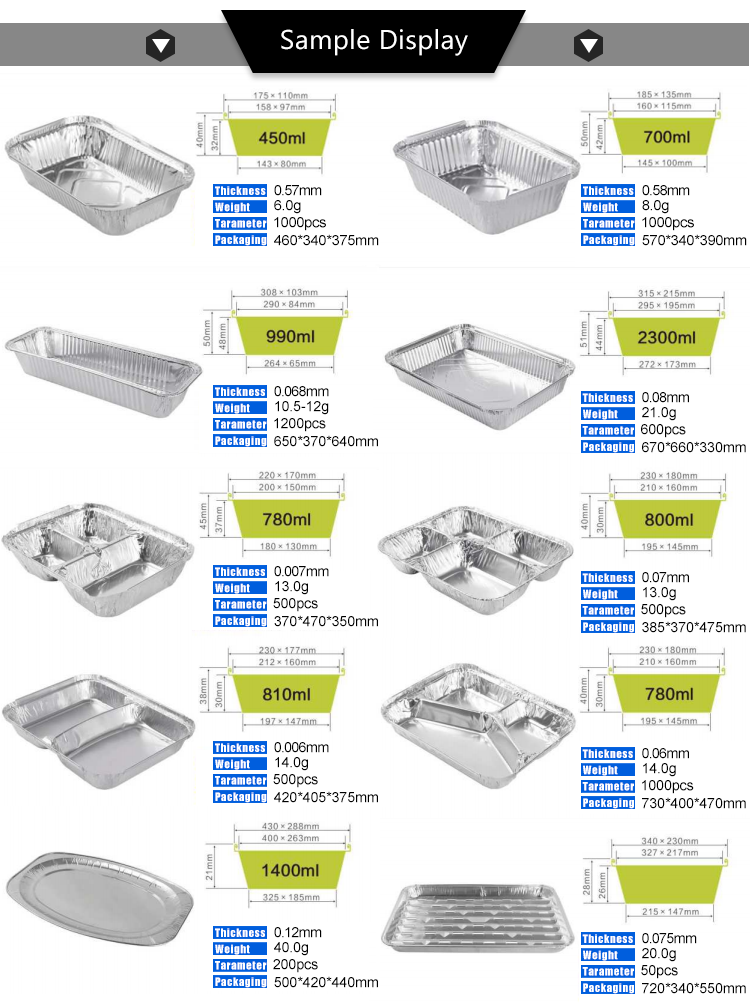

sample display
We can customize all kinds of lunch boxes, please contact us if you want to see more lunch box models!
boxing machine

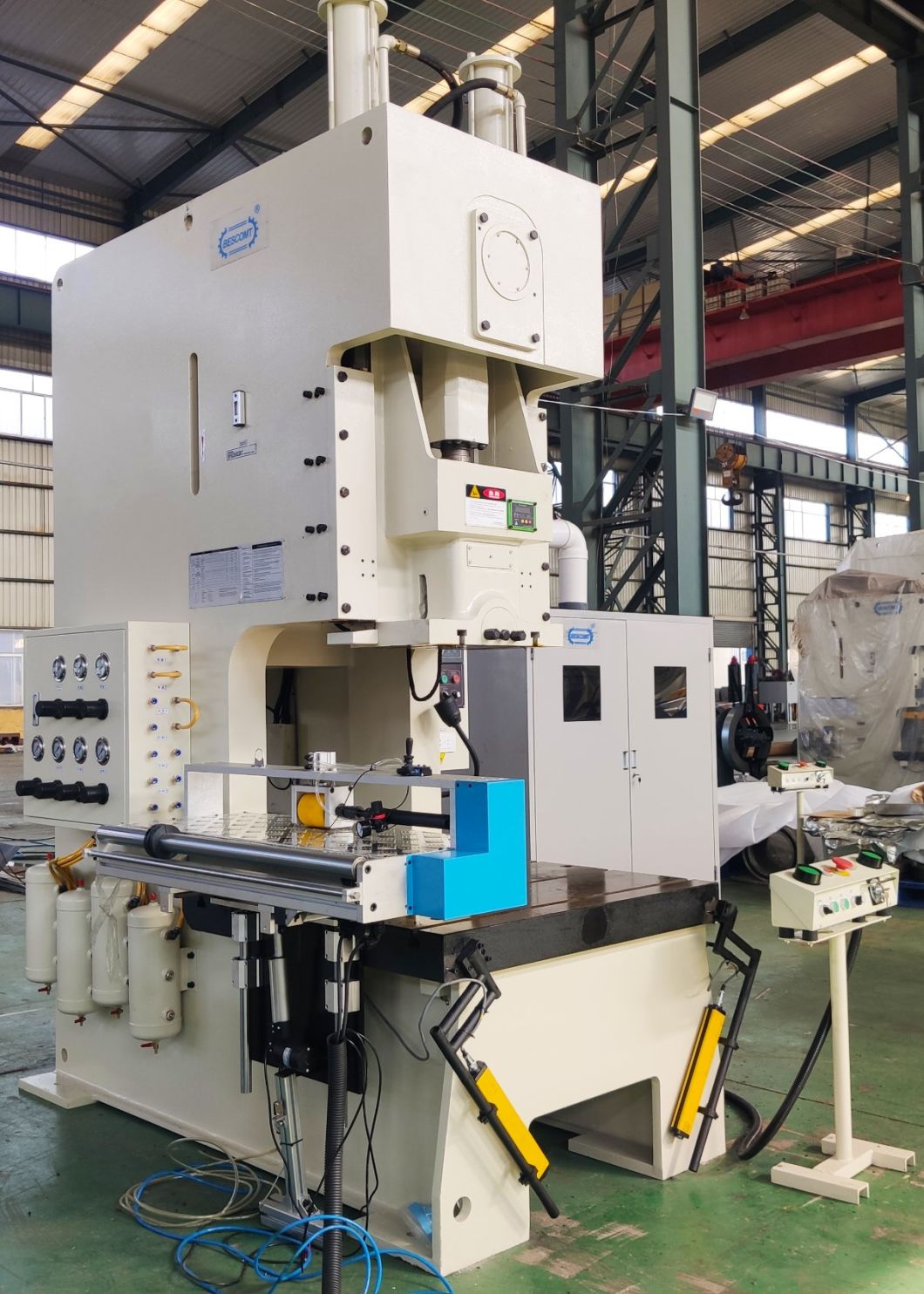

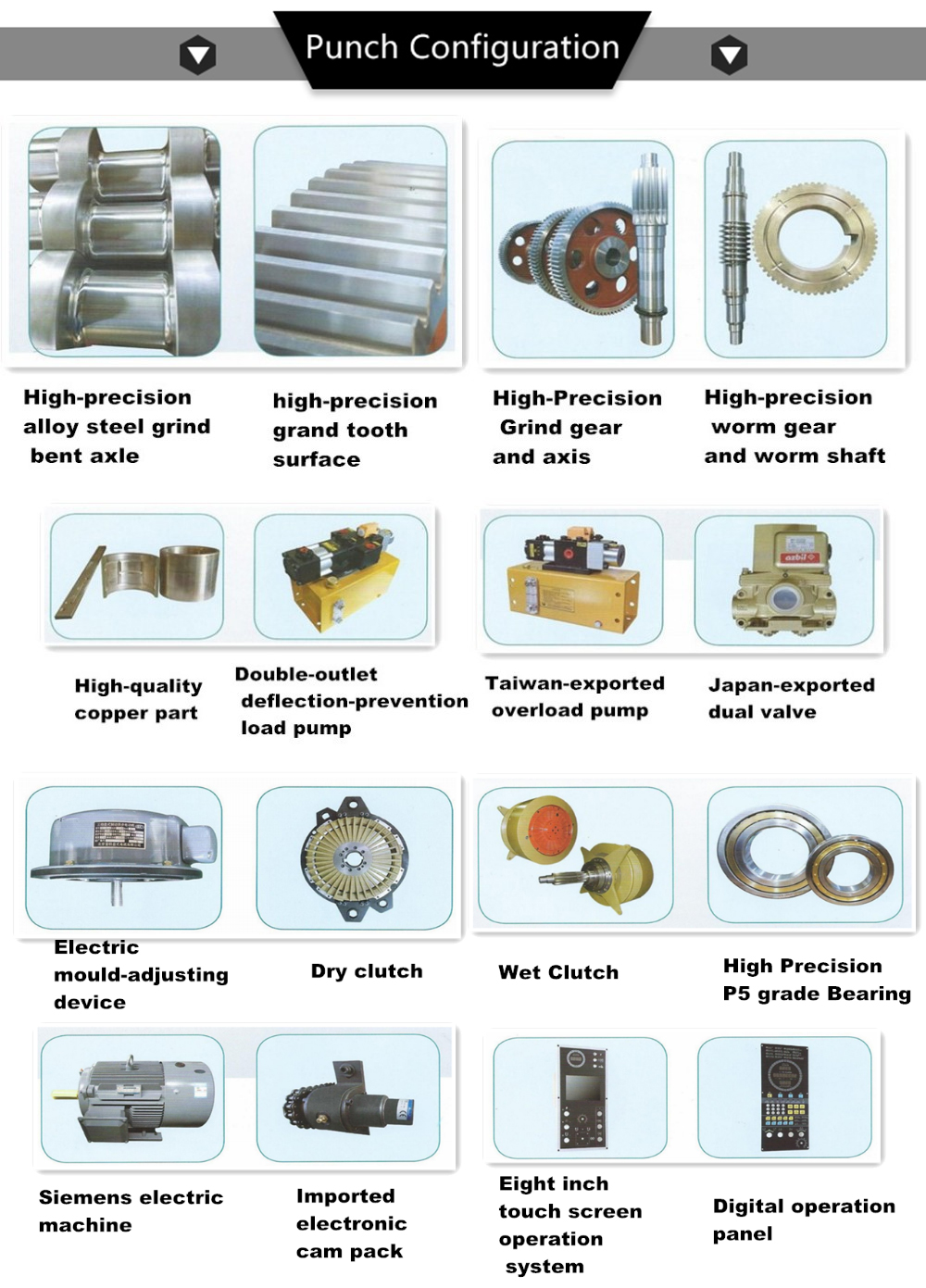

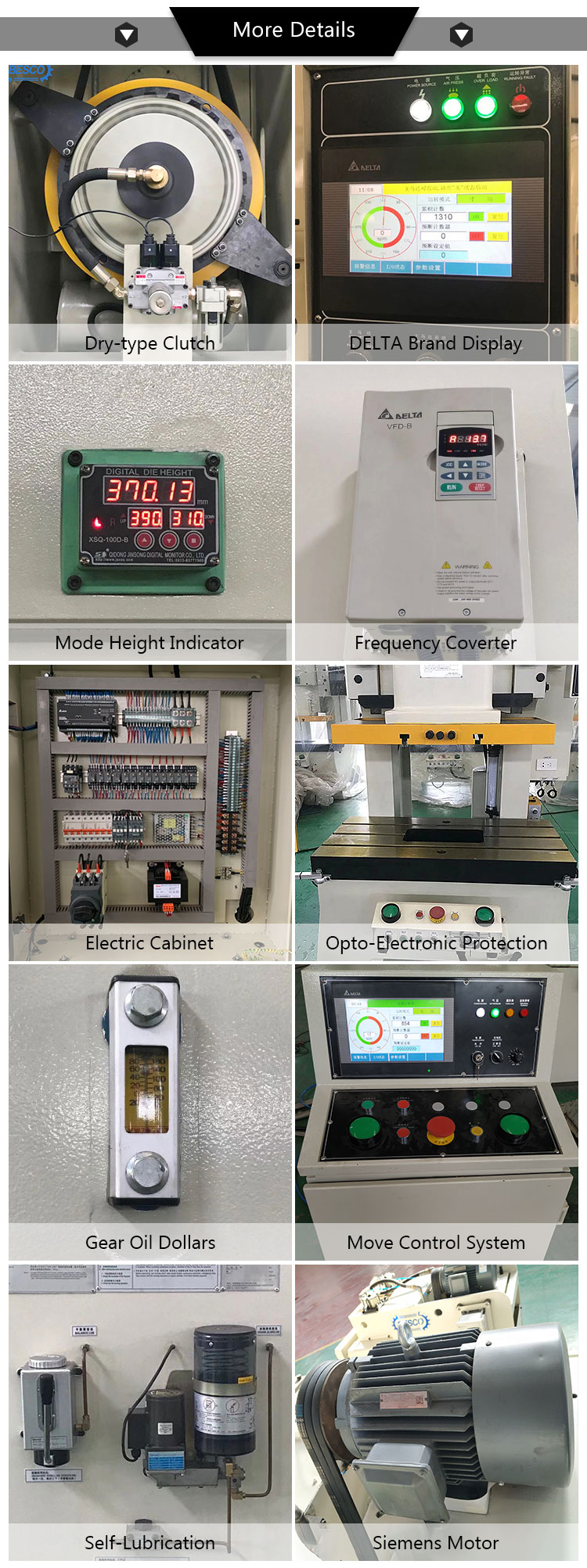

BLA product features:
1. The fuselage is welded with high-quality steel plates, and has been treated to eliminate tension, which improves the stability and reliability of the machine's precision.
2. In order to ensure the smooth and stable operation of the machine, a symmetrical two-piece slide design is adopted with a balancer.
3. The accuracy of mold adjustment can reach 0.1mm, which is safe, reliable and convenient.
4. Crank, gear. The connecting rod is oxidation hardened and milled for superior comprehensive mechanical properties and durable functionality.
5. Adopt reliable high-strength clutch/brake and double solenoid valve, overload protector to ensure safe production
Around.
6. The fuselage is welded with high-quality steel and processed to eliminate tension.
7. Key components are treated with hard chrome plating/nitridation/grinding process.
8. Adopt well-known controller/drive device, hydraulic device/gas drive components, etc.
9. The international technical grade of the press, measuring machine specifications.
2. In order to ensure the smooth and stable operation of the machine, a symmetrical two-piece slide design is adopted with a balancer.
3. The accuracy of mold adjustment can reach 0.1mm, which is safe, reliable and convenient.
4. Crank, gear. The connecting rod is oxidation hardened and milled for superior comprehensive mechanical properties and durable functionality.
5. Adopt reliable high-strength clutch/brake and double solenoid valve, overload protector to ensure safe production
Around.
6. The fuselage is welded with high-quality steel and processed to eliminate tension.
7. Key components are treated with hard chrome plating/nitridation/grinding process.
8. Adopt well-known controller/drive device, hydraulic device/gas drive components, etc.
9. The international technical grade of the press, measuring machine specifications.
Aluminum foil container making machine--BLA | ||||||||||||||||
Specification | BLA25 | BLA45 | BLA60 | BLA80 | BLA110 | BLA160 | BLA400 | |||||||||
Model | vertical/vertical/vertical | voltage/height | voltage/height | voltage/height | voltage/height | voltage/height | voltage/height | |||||||||
capacity | Ton | 25 | 45 | 60 | 80 | 110 | 160 | 400 | ||||||||
rate tonnage point | mm | 3.2/1.6/3.2 | 3.2/1.6 | 4/2 | 4/2 | 6/3 | 6/3 | 8/4 | ||||||||
stable speed | sample size | 110 | 75 | 65 | 65 | 50 | 35 | 30 | ||||||||
stroke | mm | 70/30/80 | 80/50 | 120/60 | 150/70 | 180/80 | 200/90 | 250/150 | ||||||||
mold height | mm | 195/215/190 | 250/265 | 310/340 | 340/380 | 360/410 | 460/510 | 250/150 | ||||||||
slider adjustment | mm | 50 | 60 | 75 | 80 | 80 | 100 | 120 | ||||||||
slider area | mm | 470*230*50 | 560*340*60 | 700*410*70 | 770*420*70 | 910*470*80 | 990*550*90 | 150*800*100 | ||||||||
Cushion area | mm | 680*300*70 | 850*440*80 | 900*500*80 | 1000*550*90 | 1150*600*110 | 1250*800*140 | 1650*900*200 | ||||||||
the cave | mm | Φ38.1 | Φ38.1 | Φ50 | Φ50 | Φ50 | Φ65 | Φ65 | ||||||||
main motor | kilowatt power | 3.7*4 | 5.5*4 | 5.5*4 | 7.5*4 | 11*4 | 15*4 | 37*4 | ||||||||
slide adjustment device | life value | manual operation | electric driving | |||||||||||||
Punch precision | GB/JIS Level 1 | |||||||||||||||
Press size | mm | 1280*850*2200 | 1600*950*2500 | 1600*1000*2800 | 1800*1180*2800 | 1900*1300*3200 | 2300*1400*3800 | 3180*2150*5025 | ||||||||
Press weight | Ton | 2.1 | 3.8 | 5.6 | 6.5 | 9.6 | 16 | 40 | ||||||||
Die Cushioning Capacity | Ton | - | 2.3 | 3.6 | 3.6 | 6.3 | 10 | 14 | ||||||||
stroke | mm | - | 50 | 70 | 70 | 80 | 80 | 100 | ||||||||
Die Cushion Effective Area | square millimeter | - | 300*230 | 350*300 | 450*310 | 500*350 | 650*420 | 710*480 | ||||||||

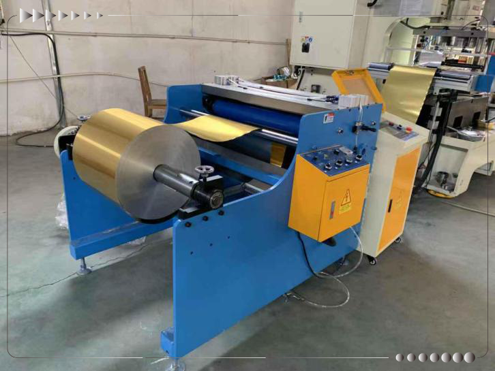

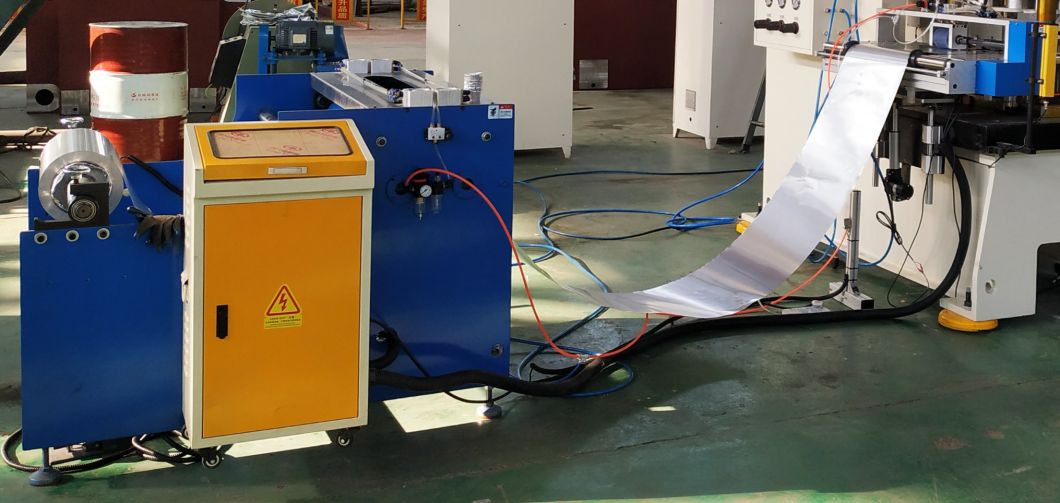

Automatic lubrication feeder
Name | scope |
Maximum roll diameter | 1000mm |
Minimum Coil Inner Diameter | 75-￠80mm |
Maximum web width | 1100 mm |
Maximum coil weight | 500 kg |
Feeding speed | 10-30m/min |
Feed length | 20-9999 mm |
Feeding accuracy | +/-0.2 mm |
Motor Power | 2 kW |
Voltage | 380V/220V |
weight | 800 kg |
aspect | 1200x1200x1100mm (length*width*height) |

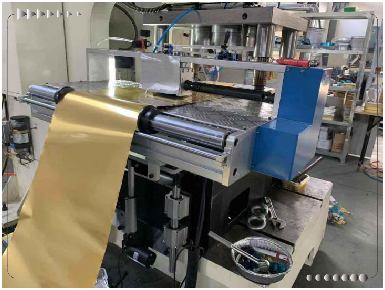

The role of the feeder
The feeder is suitable for punch presses and can feed metal coils.
Uncoiler
The coil is unrolled, allowing the coil to enter the press smoothly.
Features of automatic lubricating feeder:
1. The fuselage is welded with high-quality steel plates, and has been treated to eliminate tension, which improves the stability and reliability of the machine's precision.
2. In order to ensure the smooth and stable operation of the machine, a symmetrical two-piece slide design is adopted with a balancer.
2. In order to ensure the smooth and stable operation of the machine, a symmetrical two-piece slide design is adopted with a balancer.

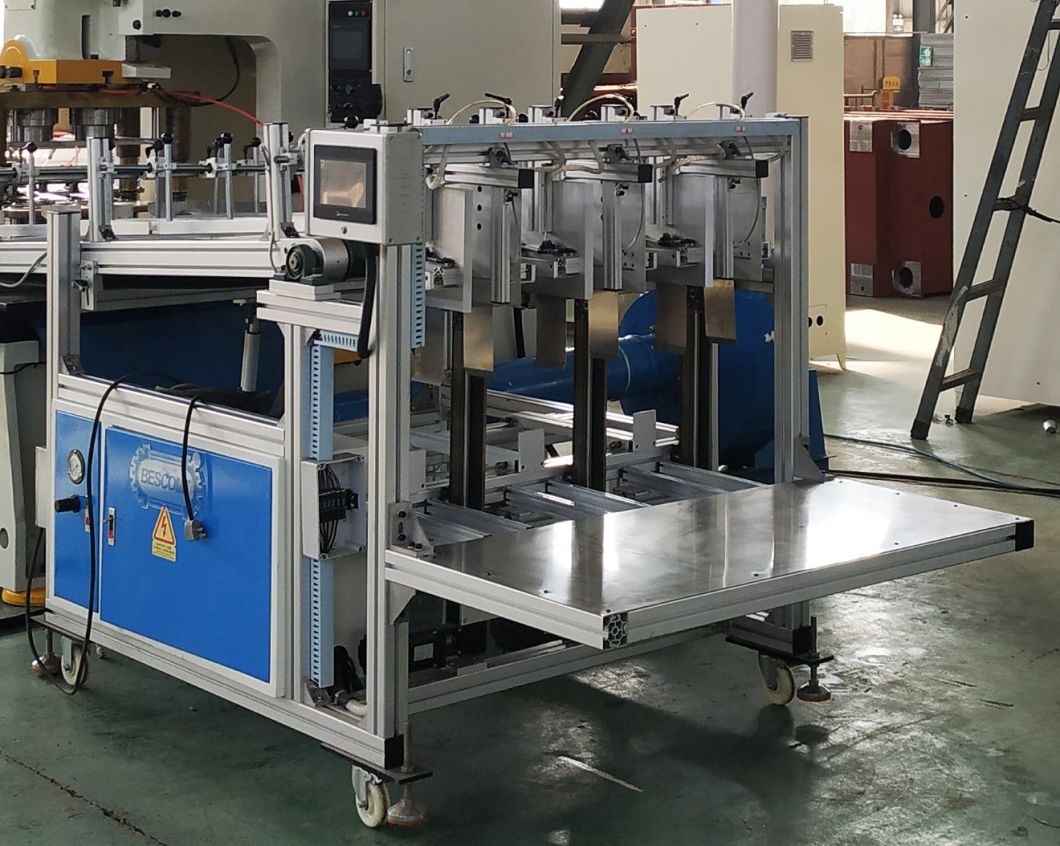

automatic stocker
Automatic stacker product features:
1. Conveyor frequency conversion speed regulation.
2. Automatic counting function.
3. The anti-collision function of the container platform.
4. It can be connected to the production line or used alone.
5. It adopts touch screen and PLC computer control.
6. The lifting table adopts stepping and ball screw table.
7. The stacking platform adopts PLC to control the quantity.
8. Pneumatic console cut off.
2. Automatic counting function.
3. The anti-collision function of the container platform.
4. It can be connected to the production line or used alone.
5. It adopts touch screen and PLC computer control.
6. The lifting table adopts stepping and ball screw table.
7. The stacking platform adopts PLC to control the quantity.
8. Pneumatic console cut off.
Name | scope |
Conveyor width | 550mm |
Collector belt height | 920 +/-25mm (height can be customized) |
Container minimum size | 100*100mm (size adjustable) |
container size | 500*300mm (one-way) 215*300mm (two-way) |
stacking height | 420mm (depending on container size) |
Air consumption (unidirectional) | 0.2 cubic meters per minute |
machine power | 3 kW |
net weight | 1000 kg |
size | 2800*780*1500mm (length*width*height) |

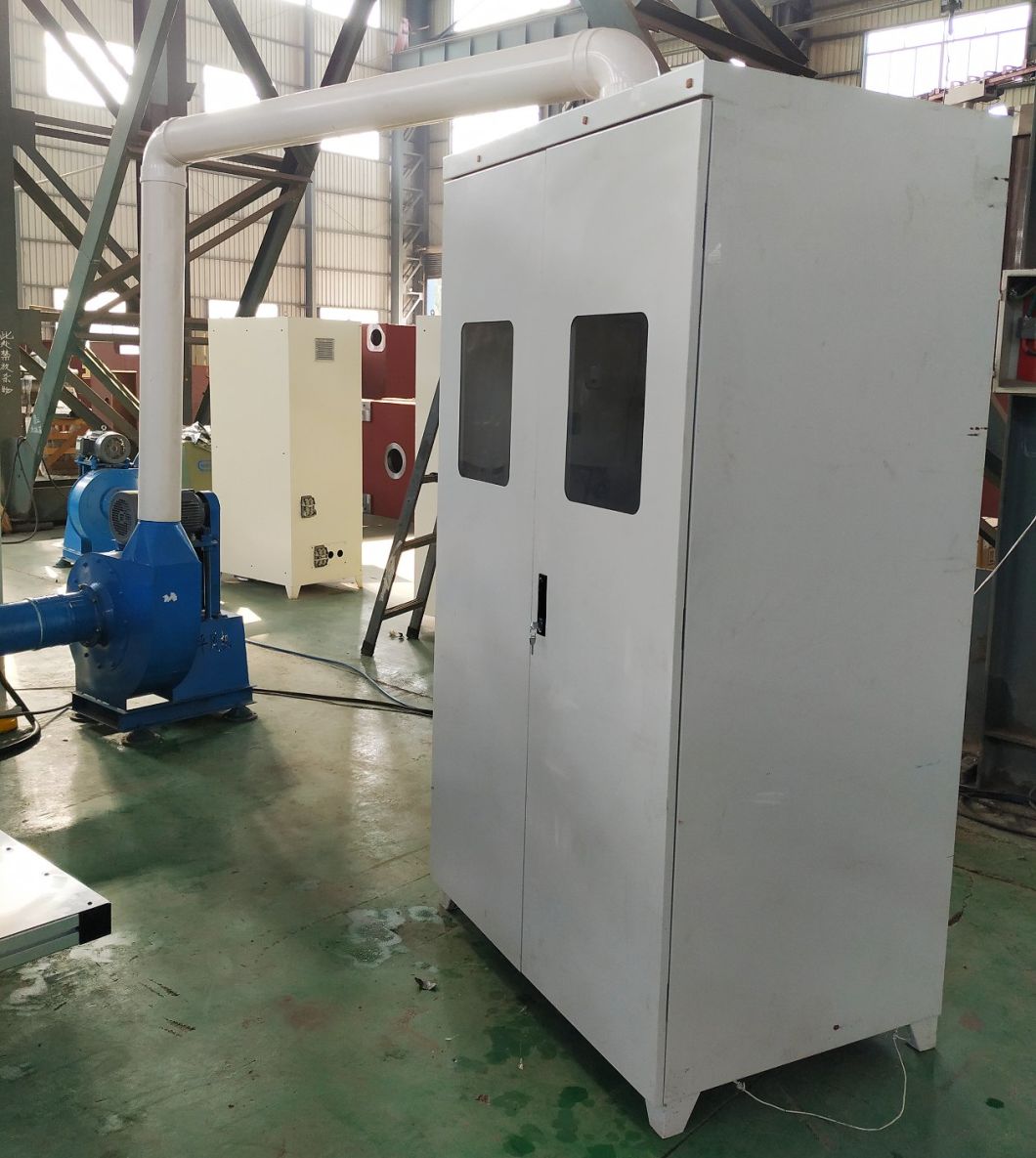

Scrap metal collector product features:
1. Using vacuum adsorption collection system, it is easier to collect aluminum foil.
2. Low noise, more environmentally friendly.
3. Reduce noise pollution.
4. Use a round knife and a flat knife. cutting material.
2. Low noise, more environmentally friendly.
3. Reduce noise pollution.
4. Use a round knife and a flat knife. cutting material.

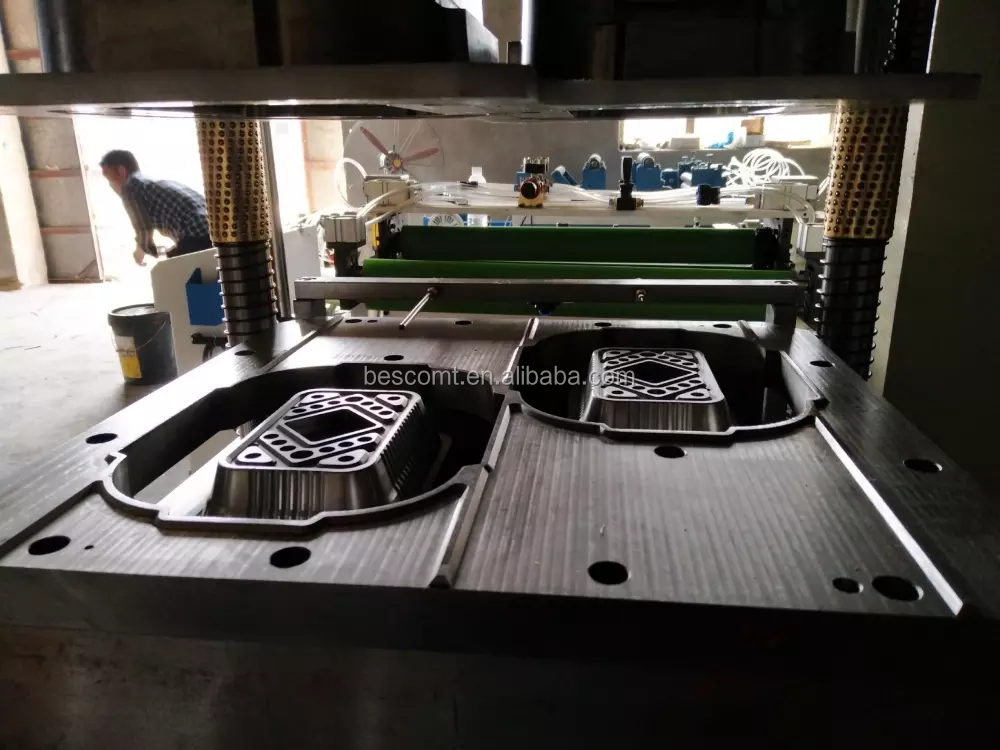

Stamping die and aluminum foil
Long life container manufacturing mold
Mold material: mold base, mold core DC-53, SKD11, etc. Japan imported pruning wound DC-53, SKD11
Mold life: 20000000 times.
In short, we can provide you with the best quality products and molds.
All of our products and molds are 100% designed and manufactured in our factory.
We are confident to meet the needs of customers with the most valuable mold manufacturing process.

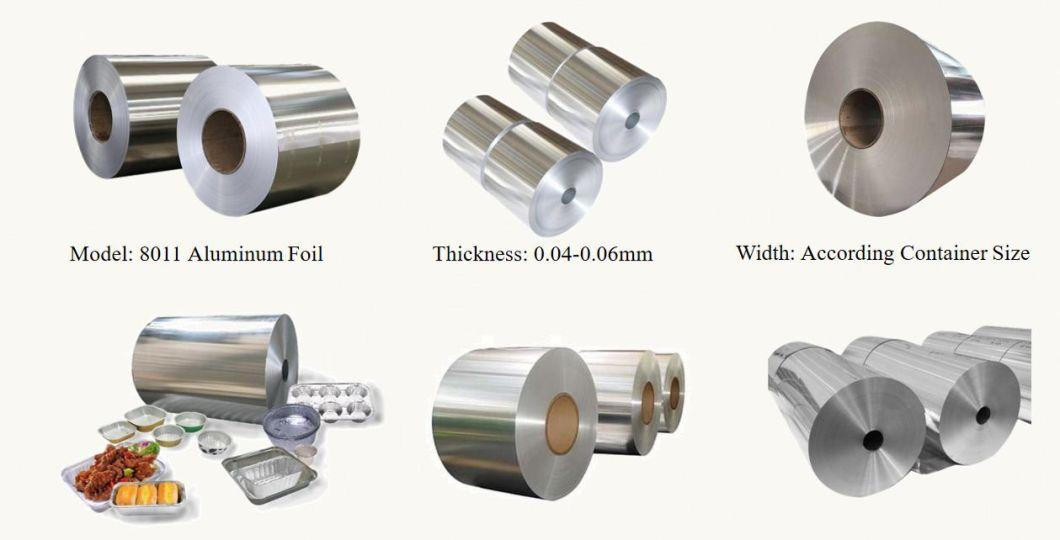

About the composition of the container
Model: 8011 aluminum foil
Thickness: 0.04-0.06mm
IWidth: According to container size
Thickness: 0.04-0.06mm
IWidth: According to container size
