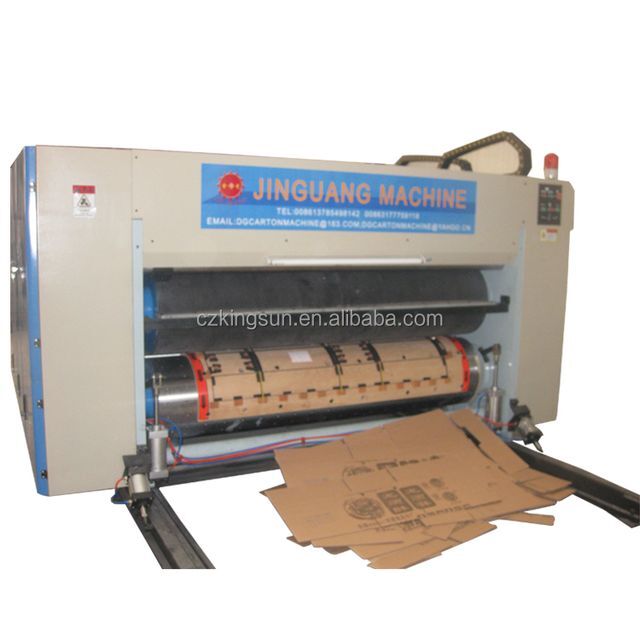

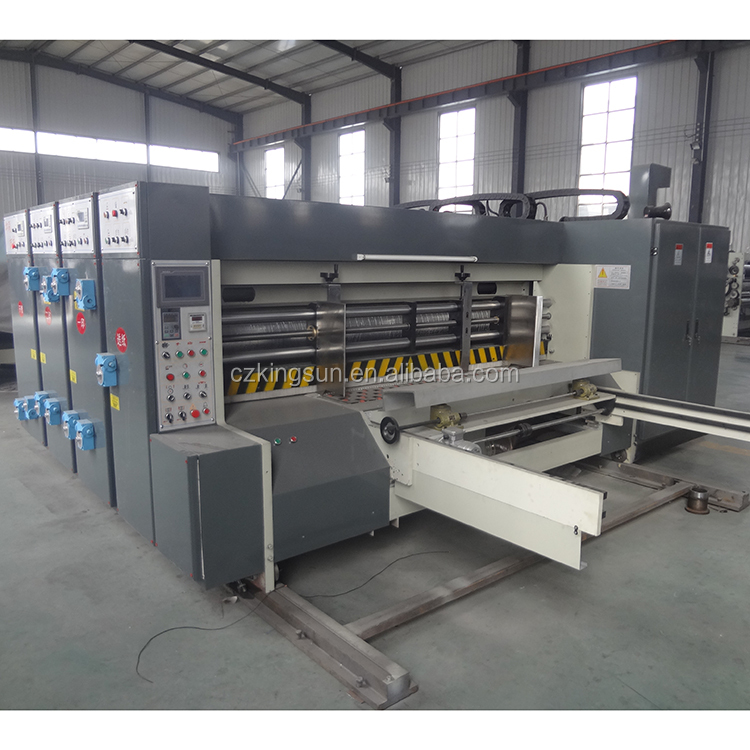

Flexo Printing and Die Cutting Machines Rotary Grooving Machines for Carton Manufacturing

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $17000.00 / 1 - 2 sets
$15000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Printing Color:	multicolor	Health status:	new
Supply capacity:	30 sets of printing slotting die-cutting machines per month	Core Components Warranty:	1 year
Weight (kg):	4500kg	Core components:	Gearboxes, Pressure Vessels, Pumps, Gears, Bearings, Engines, Motors, PLCs
After-sales service provided:	Online support	Main selling point:	high accuracy
Maximum speed:	60/min	brand:	KS
Groove minimum feed size:	330600,350600,380*600mm	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
type:	Carton	Effective print size:	1200mm, 1450, 1650mm (20002600mm)
Roller diameter:	400mm/480mm/530mm	port:	Tianjin harbor

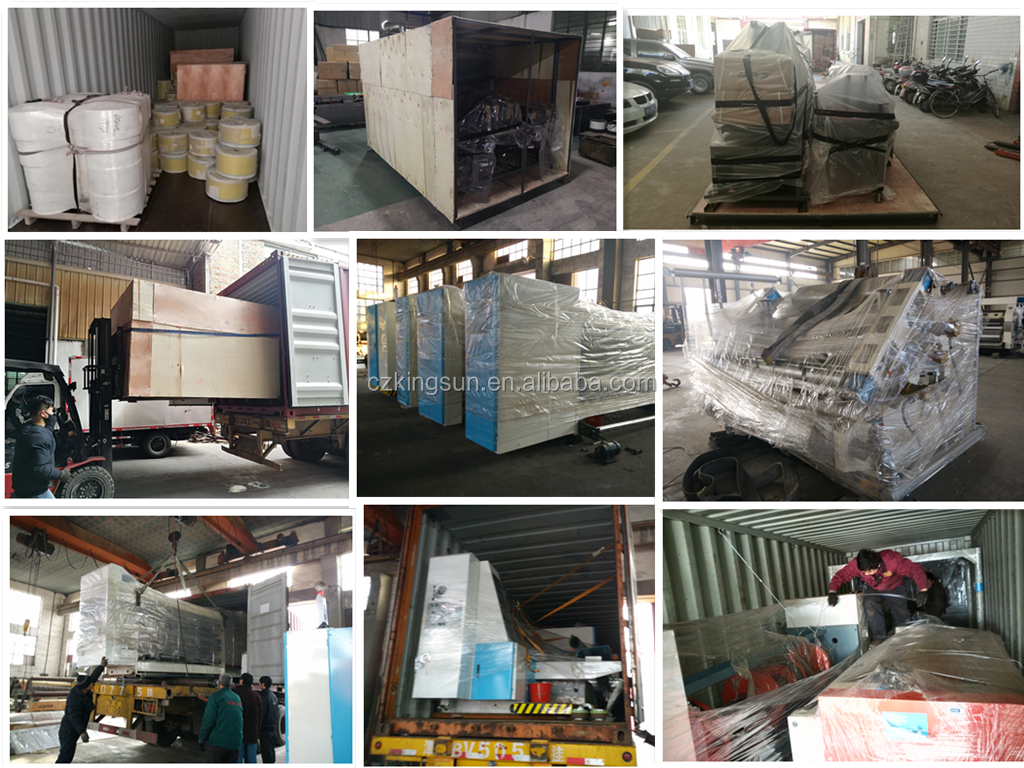

Showroom location:	not any	Packaging Details:	Machines are covered with plastic sheets or wooden crates and packaged in 20" and 40" containers
Warranty:	1.5 years	Marketing Type:	Hot Products of 2019
Maximum feed width:	1200mm, 1450, 1650mm	Maximum groove depth:	314/370/416
Mechanical test report:	if	Effective thickness:	2-12mm
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Video external inspection:	if

Flexo Printing and Die Cutting Machine Rotary Grooving Machine for Carton Making - Manufacturer with 10 Years Production Experience

Product Description

The main structure

1. Feed Department

Combined with the chain feeding method, the paper feeding is stable and the product damage rate is reduced.

2. Printing Department

1 The diameter of the drum is 0.400mm. 480mm 530mm

2. Adopt digital electronic phase controller, which can be adjusted 360 degrees, saving adjustment time and improving adjustment accuracy

3. The ink tray rises automatically, and the ink wheel rotates to prevent the ink from drying.

4. Adopt electric separation and pneumatic locking

5. Pneumatic diaphragm pump for ink supply

6. The main drive gear is made of 45# steel, driven by helical gears, high-frequency quenching, and automatic oil injection lubrication system to ensure machine accuracy and service life

8 All rollers must be chrome plated to increase hardness

9. Automatic counting function

10. There is an alarm system, and there is an alarm when the machine starts to ensure work safety

3. Slotting and cutting part

1. Four grooving knives, grooving, crimping, chamfering

2. The tool is made of high-quality materials and has a long service life

3. Our grooving knives can be adjusted at the same time

4. The phase can be adjusted by electrical 360oC

5. The feed rollers are all chrome-plated plates

4. Transmission part

1. Gears are quenched with high frequency steel to reduce noise and improve printing accuracy

2.2. The entire transmission gear adopts a keyless connection device.
