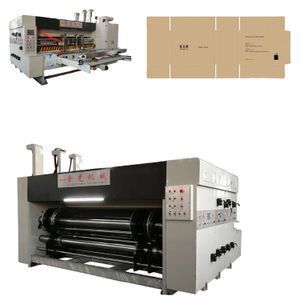

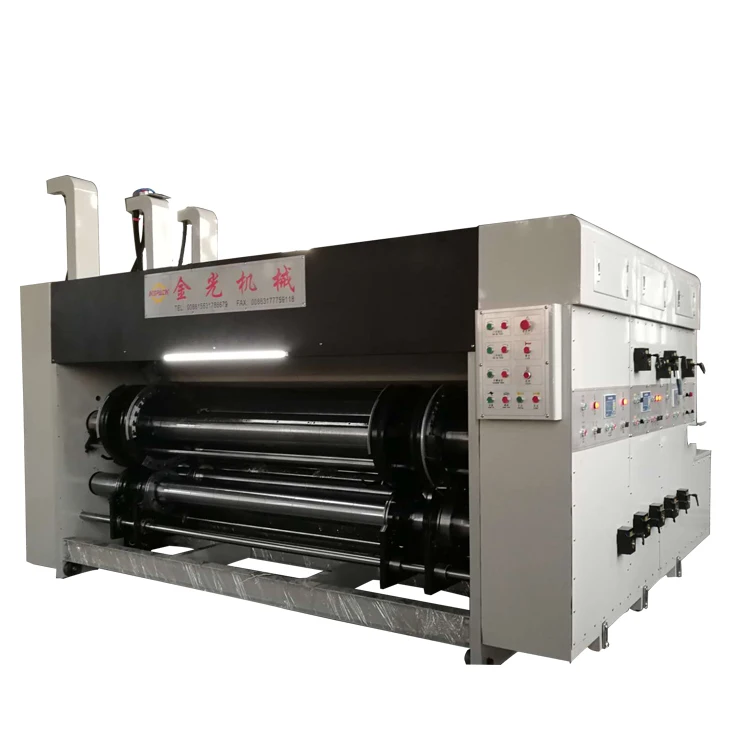

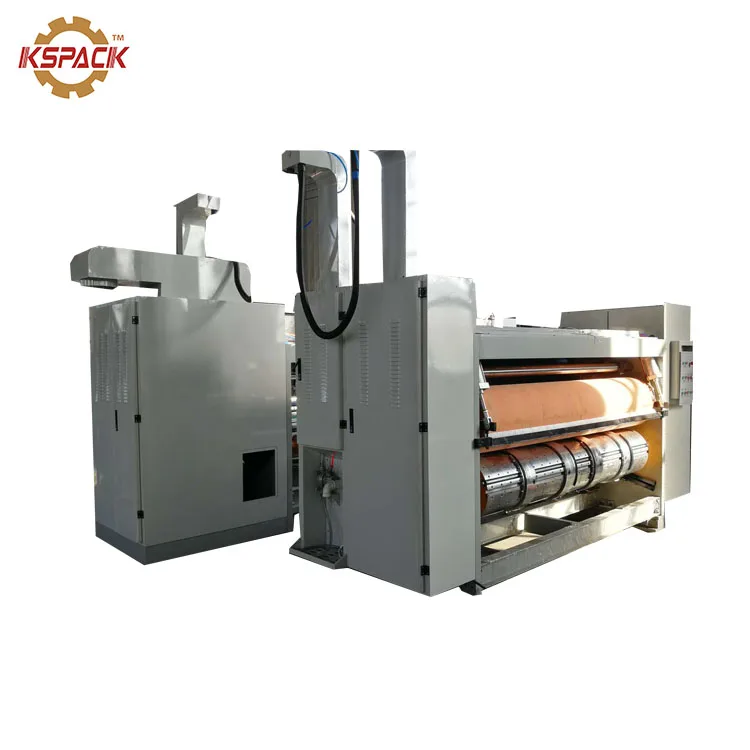

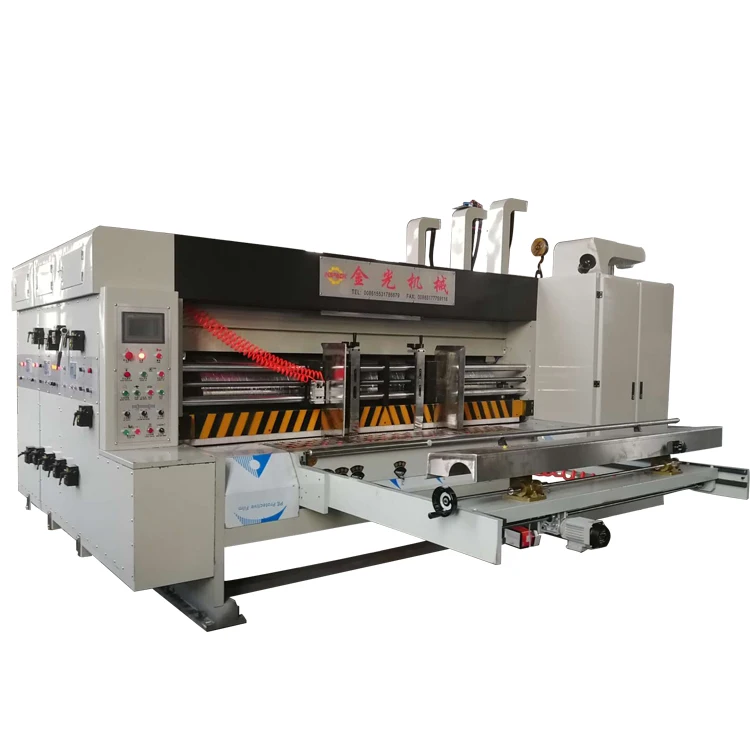

Full automatic flexo ink printing slotting and rotary die cutting machine for kraft carton pizza box food box packing package

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Core Components:	Gearbox,Gear,Bearing,Motor,PLC;
Local Service Location:	Egypt,Peru,Mexico,Bangladesh;	Printing color:	1-5color;
After-sales Service Provided:	Engineer Service Overseas,Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;	Warranty:	1 Year;
Machine name:	Full automatic printing slotting and rotary die cut machine;	PRINTING PRECISION:	0.1 Mm;
Machinery Test Report:	Provided;	Warranty of core components:	2 years;
Function:	Corrugated Carton Printing Slotting Diecutting;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Full automatic flex ink printing slotting and rotary die cutting machine;
Suitable material:	2-12mm board;	Brand Name:	kspack;
Package Preview:	;	Packaging Detail:	Full automatic flex ink printing slotting and rotary die cutting machine plastic and wooden;
Applicable Industries:	Garment Shops,Manufacturing Plant,Printing Shops,Advertising Company;	Key Selling Points:	Automatic;
Showroom Location:	Egypt,Peru,Mexico,Bangladesh;	machine size:	1224;
Printing speed:	120-180pcs;	Marketing Type:	New Product 2020;
Condition:	New;	Supply Ability:	30 Set/Sets per Month;
Video outgoing-inspection:	Provided;	Anilox roller:	200 line;
Port:	tianjin ningbo or qingdao;	Wall thickness:	50mm;

Full automatic flex ink printing slotting and rotary die cutting machine for kraft carton pizza box food box packing package

FINAL PRODUCTS

Functions and Characteristics:Full automatic flex ink printing slotting and rotary die cutting machine for food box , pizza box , industry transport box making

force; and that parts are made by high precision processing center and grinded by digit controlled grinder.

3. All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.

4. All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.

5. The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.

6. Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

Feeding department :Full automatic flex ink printing slotting and rotary die cutting machine for corrugated carton box making machine

It adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products.

Printing Department:Full automatic flex ink printing slotting and rotary die cutting machine

1. All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.

2. Printing phases was adopted the planetary gear structure, the electric digit 360 adjustment , show the digit(stop, running can adjustment).

3. Printing roller landscape orientation was adopted the touch screen control, and electric digit

adjustment, the adjustment scope is 20mm.

4. Pneumatic septum pump supply the ink, the ink cup show the quantity.

5. Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.

6. Fixing the oil interval , printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix.

7. Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.

Slotting Department:Full automatic flex ink printing slotting and rotary die cutting machine for corrugated box making machine

1. Slotting phases was adopted the planetary gear structure, the electric digit 360° adjustment, show the digit (stop, running can adjustment).

2. Slotting tool rest, pressure wheel , horizontal move by manual mechanic joint adjustment.

3. The height of box size was adjustment by synchronous.

4. Pressure interval was used the self- lock worm wheel and worm device adjustment and fix.

5. The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.

6. Slotting knife was chosen the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,

7. Serrated slotted cutter. Thickness: 7mm. Cutting angle blade width: 45mm.

Die cutting part:Full automatic flex ink printing slotting and rotary die cutting machine for corrugated carton box making machine

1,rubber cushion imported from Taiwan

2,Double-worm abrasire belt cushion correction facility

3,Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )

4,Speed difference self-compensating function

5,The axial adjustment of platen roller is hand-operated .Range:0-20mm(from middle to left or right)

6,Die cutting phase is adjusted by electric planet geas.Keyless junction.

Stacker for Full automatic flexo printing slotting and rotary diecutting corrugated carton pizza box making machine

Parameter Automatic Feeding Printing and Die Cutting Pizza Box Making Machine Box Machine Carton Machinery Price

Model	JGY-MS1200	JGY-MS1450	JGY-MS1650
Diameter of roller	400MM	480mm	530MM
The max speed	60PCS	60pcs/min
The max feeding size	1200X(2200-2800)	1450x(2200-2800)mm	1650X(2200-2800)
Slot Min feeding size	330X600MM	350X600mm	380X600MM
Effective printing size	1200X(2000-2600)	1450x(2000-2600)(mm	1650X(2000-2600)
The effective thickness	3.5.7ply (2-12mm)	3.5.7ply (2-12mm)	3.5.7ply (2-12mm)
Printing plate thickness	6±0.1	6±0.1	6±0.1
The max depth of slot	314	370	416

Customer visit

Packaging & Shipping

Certifications

Company Information

Our company are professional supplier the carton box machinery in china ,

we build at 2008 , 12 year expert for export ,export more than 100 countrys

we have 30 internationa sell teams ,now we are develop to group company .

hebei jinguang packing machine co.,Ltd

cangzhou kingsun imp.&exp co.,Ltd

quanzhou haoge machinery co.,Ltd

dongguang qunbang machinery co.,Ltd

we can supply A TO Z serial machineyr from roll peper make to the carton box machinery , every machine we choose the best supplier .,gurantee the quality . the machine have following , corrugated board making machine ,single facer group ( roll stand ,single facer ,sheet cutter ) , flexo printing slotter diecutter , rotary slotter ,rotarty diecutter , folder gluer machine , stiching machine , thin blade slitter ,Automatic corrugated cardboard pizza box making machine carton box making machine prices machine making carton box and so on , service is first ,quality is first is our aim .

we expecing can build business relationship with you ,and make friend with you !

Our Services

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer needs our technician to intall the machine at arrival place, we will send technician there. All our expenses including double way air ticket to the nearest airport, local transportion to your factory, Lodging&Boarding expenses shall be payable by you. 60usd/days for the technical for the technical .

Warranty period:

One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free.

Service:

24 hours technical support

FAQ

1. whether you have manufacture ?

yes ,we have manufacture factory for make machine . but because not make all machine ,so some other machine also deal .

2. whether you have export licence

yes ,we have export licence we can export by ourself .

3. where you are located ?

we located dongguang city ,cangzhou city ,hebei pronvice , china ,

4. how to travel to your city ?

our nearest airport beijing international airport , and jinan airport , our nearest high speed train station , cangzhou west station

from beijing to our city need 2 .30 hour by car , from bejing sourth station to cangzhoui west station 1 hour by high speed train .

5. where you office located

our office in building B 1006 , risesun yunhe area cangzhou city .

5. how buy the machine from our company ?

tell me your requirment --- quote the price - accpet the price - make contract -- prepare the machnie - check the machine - shipment the machine

6. we have professional internationl sale group , let you no barrier to talk ,and discuss , one point service .

"SERVICE FIRST QUALITY FIRST REPUTATION FIRST "
