Automatic 3 5 7 corrugated cardboard making line/corrugated machine/carton box manufacturing plant

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application Fields:	produce the corrugated box;	Automatic Grade:	Automatic;
Function:	produce the 3 .5 ply corrugated board;	Bag type:	carton box;
Weight:	600000kgs;	Product name:	Automatic 3 5 7 corrugated cardboard making line/corrugated machine;
Key Selling Points:	Automatic;	Application:	Food,Beverage,Commodity,MEDICAL,Chemical,Machinery & Hardware,APPAREL,Textiles,Cigarettes,Tobacco;
Driven Type:	Electric;	Packaging Detail:	carton wooden and according to your need;
Type:	Packaging Line;	Payment Terms:	L/C,D/A,T/T;
Machinery Test Report:	Provided;	Core paper:	125-200g/m2;
Supply Ability:	30 Set/Sets per Month;	After Warranty Service:	Video technical support,Online support;
Showroom Location:	Egypt,Peru,Mexico,Bangladesh;	Keywords:	Automatic 3 5 7 corrugated cardboard making line;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;	Material:	cast iron;
Video outgoing-inspection:	Provided;	Speed:	100-150 M/min;
Condition:	New;	using area:	paperboard packaging line;
Warranty of core components:	2 years;	Port:	tianjin;
Packaging Type:	Cartons;	Place of Origin:	Hebei China;
Package Preview:	;	Dimension(LWH):	Depends on the machine model;
Local Service Location:	Egypt,Peru,Mexico,Bangladesh;	size:	1400-2500mm;
Core Components:	Bearing,Gear,Gearbox,transmit roller;	Certification:	CE ISO9001;
Marketing Type:	Ordinary Product;	After-sales Service Provided:	Online support,Video technical support;
Packaging Material:	plastic,Paper,metal,wood;	Voltage:	220V/380V;
Brand Name:	kspack;	Warranty:	1 Year;

Automatic 3 5 7 corrugated cardboard making line/corrugated machine/carton box manufacturering plant

technical parameter :Automatic 3 5 7 corrugated cardboard making line/corrugated machine/carton box manufacturering plant

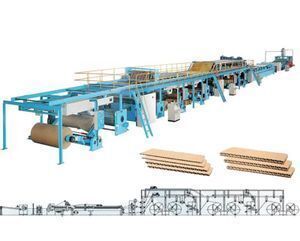

Complete corrugated paperboard production line is compose of shaftless mill roll stand, fingerless type single facer( vacuum suction type), preheater, double bridge,gluer machine, double facer machine, cut off machine, slitter scorer machine, stacker and glue making system

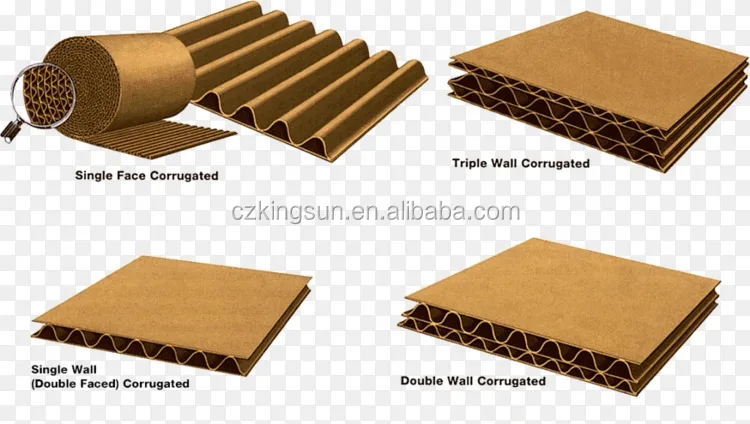

3-layer,5-layer,7-layer production line are all avalaible.
Width from 1400mm to 2500mm.
production speeds from 60-250 meters/min.
Customer's special needs catered by experienced corrugated company.
We can supply a complete corrugator or individual equipment to complete your own line

NOTE: the customer-owned part
1. Steam heating system 4000kg/Hr a steam boiler the pressure 1.4-1.6MPa
The steam pipeline and the back to the gas drainage pipe of vave on equipment
2. air compression pump, compressed air line, glue tube
3. the source of electricity wire access to operation counter and cable routing management
4. the source of water, water pipeline,bucket
5. water, electricity, gas ground plane to stall civil work
6. test base paper used, corn starch(potato), industrial caustic soda, borax etc. material
7. equipment oil, lubricating oil, hydraulic oil, grease and high temperature grease

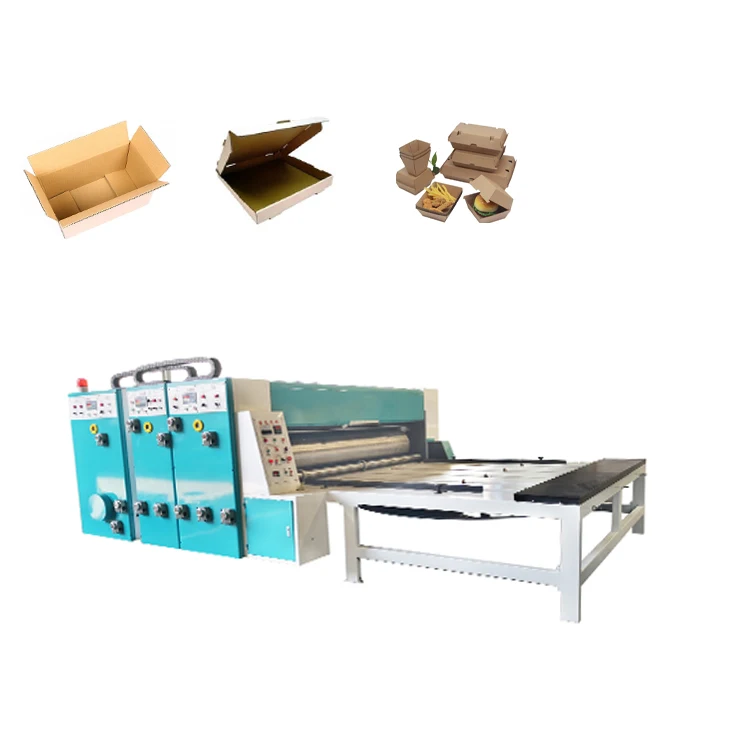

Automatic 05 Ply Box Making machine/carton machine/corrugated box machinery CE machinery make products

FIRST Process make our corrugated by corrugated board production line

SECOND PROCESS MAKE THE CORRUGATED BOX

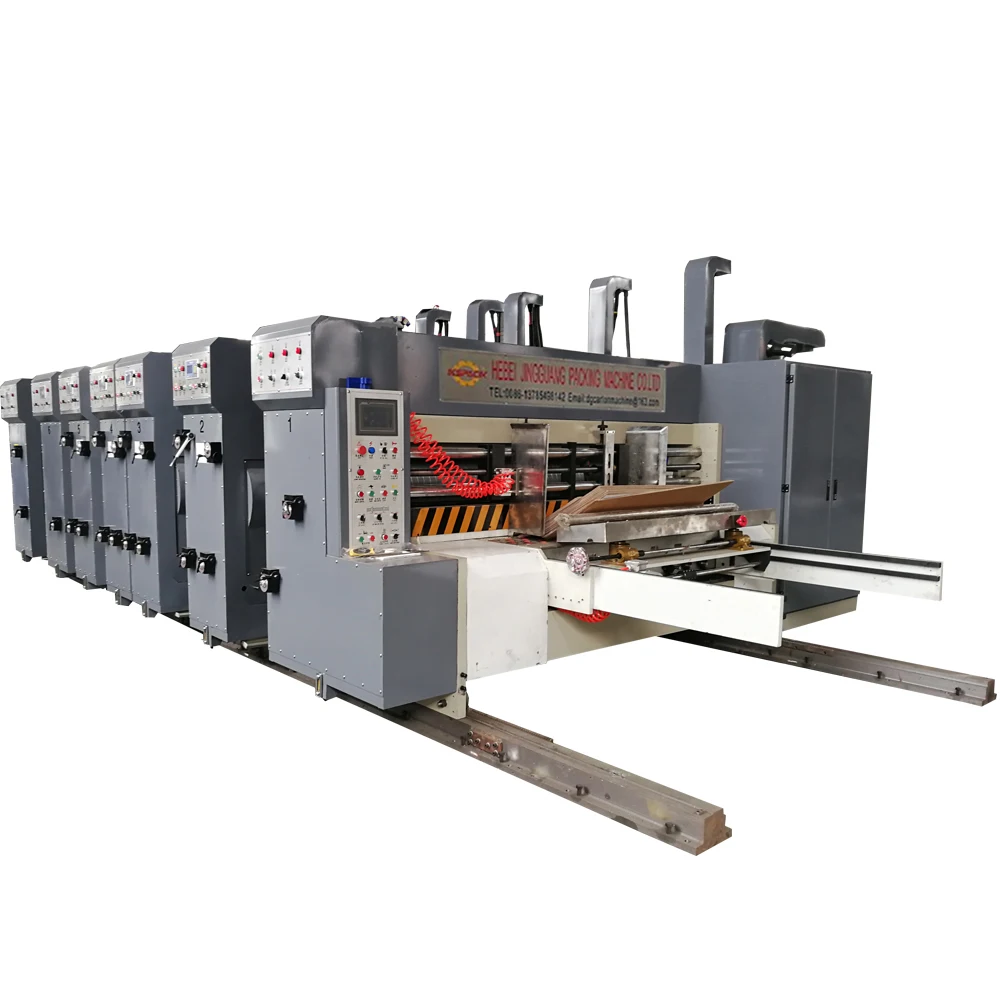

check below machien for printer open the slotter and diecutter box

Related machine

Printer other series machine

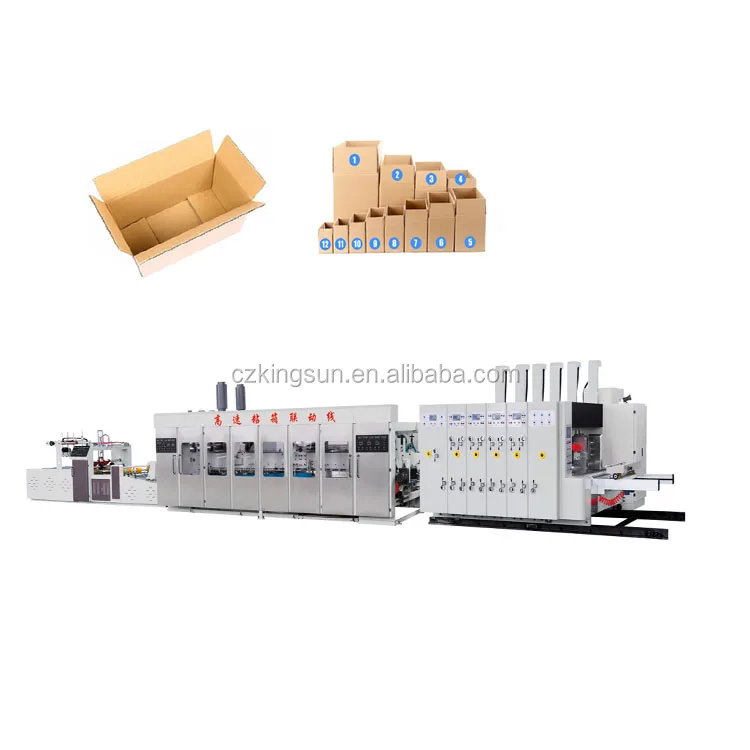

JGY-LD high speed printer diecutter slotter folder gluer in line
JGY-HS high speed printer slotter diecutter with stacker
JGY-MS middel speed printer slotter diecutter with stacker
JGY-S(D) chain feed printer slotter diecutter
