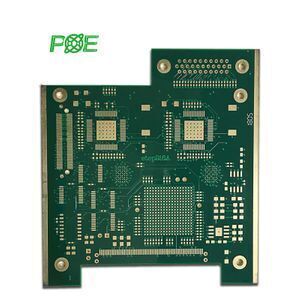

PCB Board Printed Circuit Board PCB Fabrication PCB Circuit Board Factory
- 0.10 piece
| Color: | Green,blue,black; | Min. Line Width: | 4mil; |
| Board thickness tolerance: | +/-10%; | Brand Name: | POE; |
| Finished board thickness: | 0.2-7.0mm; | Board Thickness: | 1.6mm; |
| Supply Ability: | 20000 Square Meter/Square Meters per Month PCB Board Printed Circuit Board PCB Fabrication PCB Circuit Boar; | PCBA service: | Turnkey Assembly PCBA Service; |
| Min. Line Spacing: | 4mil; | Layers: | 1-28; |
| Product name: | PCB Board Printed Circuit Board PCB Fabrication PCB Circuit Board; | Finised copper thicckness: | 1-6OZ; |
| Base Material: | FR4 TG130; | Model Number: | POE-60052; |
| Hole tolerance: | PTH: +/-3mil NPTH: +/-2mil; | Place of Origin: | Guangdong China; |
| Copper Thickness: | 1OZ; | Surface Finishing: | HASL lead free,ENIG,OSP; |
| Min. Hole Size: | 0.2mm; | Min distance pad-pad: | 8mil; |
| Port: | Shenzhen; | Packaging Detail: | PCB Board Printed Circuit Board PCB Fabrication PCB Circuit Board PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box; |
| Payment Terms: | L/C,T/T,Western Union,paypal; | Min distance trace-via: | 4mil; |
u Production Capability
Item | Capability |
1.Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
2.Layers | 1-28 |
3.Finised inner/outer copper thickness | 1-6OZ |
4.Finished board thickness | 0.2-7.0mm |
7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
9.Controlled Impedance | +/-5% |
13.Plugging vias capability | 0.2-0.8mm |
15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
16.Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS… |
u Application Fields/Customers
We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.
u POE partners

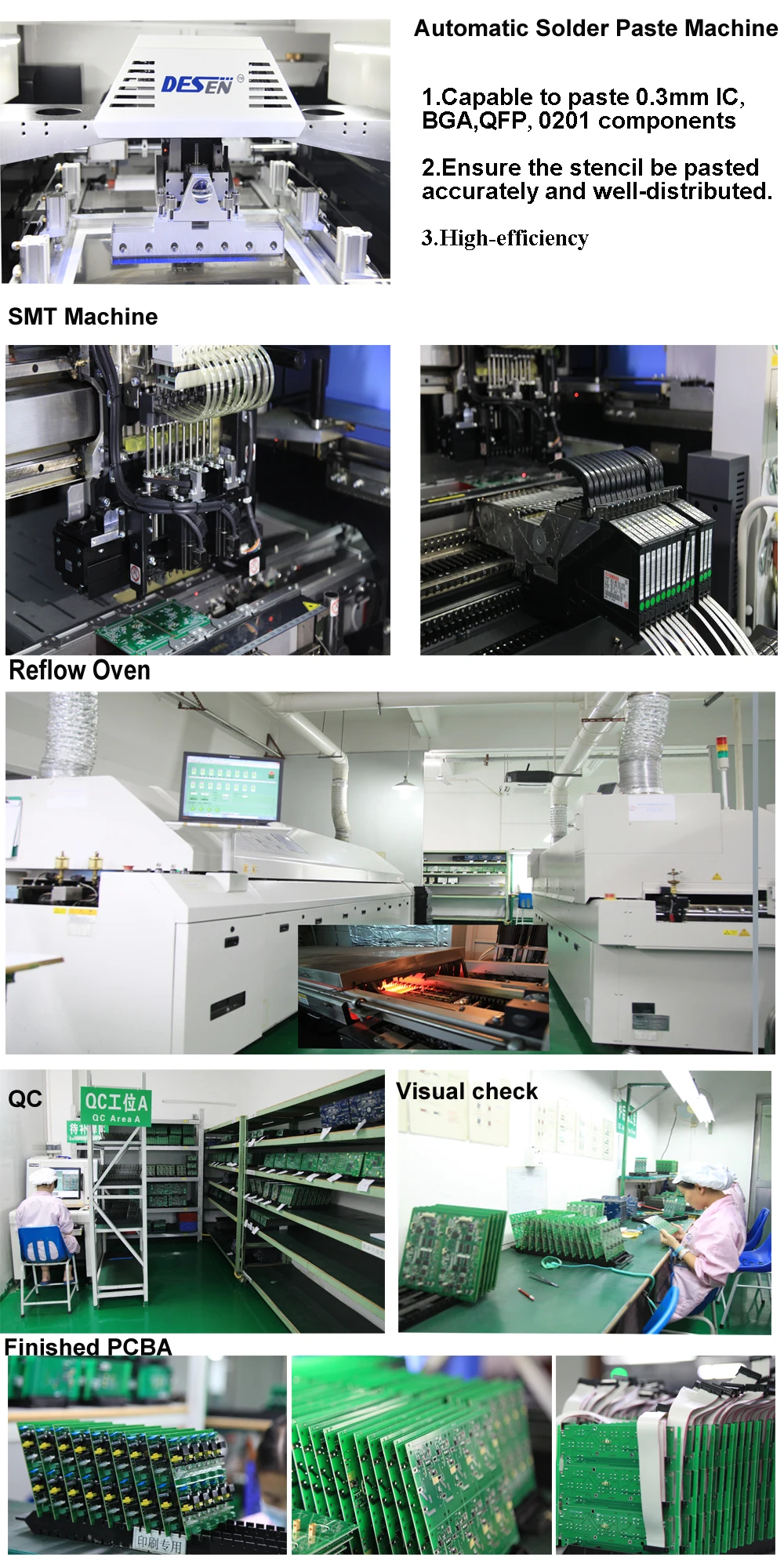

u Production Line
u Products Showcase
PCB/PCBA: Vacuum Packing with Carton Box
Q1.What is needed for quotation? pcb pcba
- PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
- PCBA: PCB information, BOM, (Testing documents...) PCB assembly
Q2. What file formats do you accept for production? pcb manufacturer
- Gerber file: CAM350 RS274X
- PCB file: Protel 99SE, P-CAD 2001 PCB
- BOM: Excel (PDF,word,txt) pcb circuit boards
Q3. Are my files safe? fr4 tg130 pcb
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. pcb assembly
Q4. MOQ? pcb circuit boards
There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility. electronic circuit board
Q5.Shipping cost? pcb pcba
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
prototype pcb assembly
