PNMP High Speed PVC Pulverizing Mill For PVC Pipe Or PVC Profile

Product details
Certification:CE for grinding pulverizer machine;Controlling Size:Vibrating and Remilling;
Condition:New;Warranty:one year for turbo-type pulverizer machine;
Brand Name:WANROOETECH;Fan:Available;
Model Number:PNMP-1000;Knife Roll:Hollow Knife Roller;
Capacity:100kg/H-900kg/H for PVC;Packaging Detail:film wrapping and wooden case for grinding pulverizer machine;
Color:Buyer's Requirement;Product name:PNMP High speed PVC Pulverizing Mill for PVC pipe or PVC profile;
Payment Terms:L/C,T/T,Western Union;Vibrating Screen Machine:Available;
Main Power:80kw;Delivery Detail:30 working days for grinding pulverizer machine;
Port:FOB Shanghai;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:50 Unit/Units per Month PNMP High speed PVC Pulverizing Mill for PVC pipe or PVC profile;Structure:turbo-type;
Size of Finished Product:Depends(20-80 mesh);Place of Origin:Jiangsu China;
Dimension(L*W*H):3080*1820*2150;
Product Description

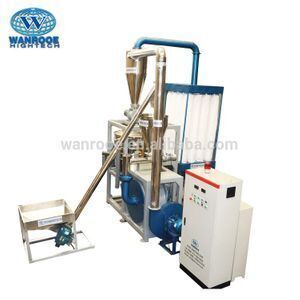

 High speed PVC Pulverizing Mill for PVC pipe or PVC profile





PNMP series high speed turbo-type pulverizer is designed by our factory using Germany technology and our own production experience; it can be used for ovc plastic from pvc pipe/profile/soft sheet/bottle /card from low to moderate hardness PVC,HDPE and so on.

1.Low energy consumption, and high output.

2.Simple to operate and install.

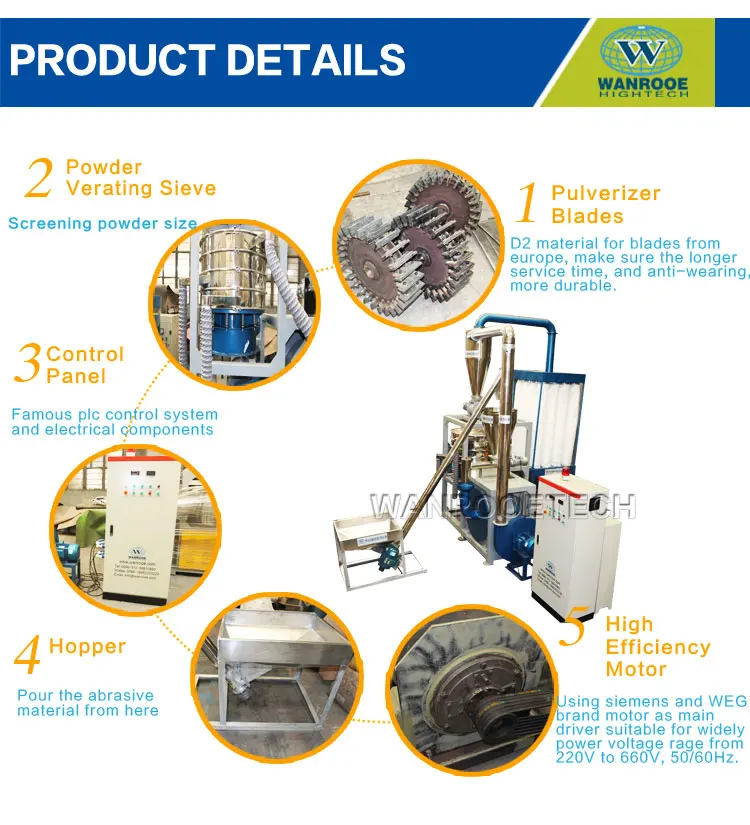

3.This pulverizer machine is designed with the adjustment device, which can allow you to adjust the gap between the stationary blades and rotating blades, finally to control the PVC or plastic powder fineness and size, and meet different needs.

4.The main engine has a water cooling system.

5.The high-quality blades are easy to replace and can be used for several times after regrinding.

6.The disc material are adopted alloy steel with HRC up to 63, which are wear well or durable in use.

 7.All pulverizer machine bearing, we adopted high quality imported NSK bearing from Japan.



Model

PNMP-500

PNMP-600

PNMP-700

PNMP-800

PNMP-1000



Grinding Disc Diameter(mm)

500

600

700

800

1000



Main Motor Power(kw)

37-45

45-55

55-75

75-90

9-110



Vibrating Sieve Power(kw)

0.75

0.75

0.75

0.75

1.1

Capacity(kg/h)

100-300

200-500

250-600

300-800

400-900
