PVC High Speed Color Mixer Plastic Mixing Machine
- 5000.00 set
| Payment Terms: | L/C,T/T,Western Union; | Warranty: | 1 YEAR; |
| Supply Ability: | 500 Set/Sets per Year PVC High Speed Color Mixer Plastic Mixing Machine; | capacity: | 300kg/h; |
| Production Capacity: | 300kg/h; | certification: | CE; |
| inverter: | ABB or Delta optional; | After-sales Service Provided: | Free spare parts,Video technical support; |
| Voltage: | 380v; | Automatic Grade: | Automatic; |
| Port: | Shanghai; | Condition: | New; |
| Packaging Detail: | PVC High Speed Color Mixer Plastic Mixing Machine wrapped with film then come into wooden case for container shipping; | Brand Name: | wanrooetech; |
| Application: | pvc high speed mixer; | Local Service Location: | indonesia,pakistan; |
| Dimension(L*W*H): | depends; | Applicable Industries: | Manufacturing Plant; |
| After Warranty Service: | Video technical support,Online support; | Material: | STAINLESS STEEL; |
| Certification: | CE; | Product name: | PVC High Speed Color Mixer Plastic Mixing Machine; |
| Showroom Location: | indonesia,pakistan; | Power(W): | 30/42kw; |
| Weight (KG): | 1000 KG; | Place of Origin: | Jiangsu China; |
| Output (kg/h): | 100 - 1000 kg/h; | volume: | 200L; |
| company brand: | wanrooetech; | power source: | 380v 50hz; |
| motor power: | 30/42kw double speed; |

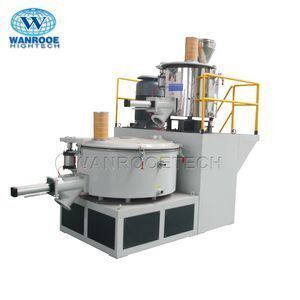

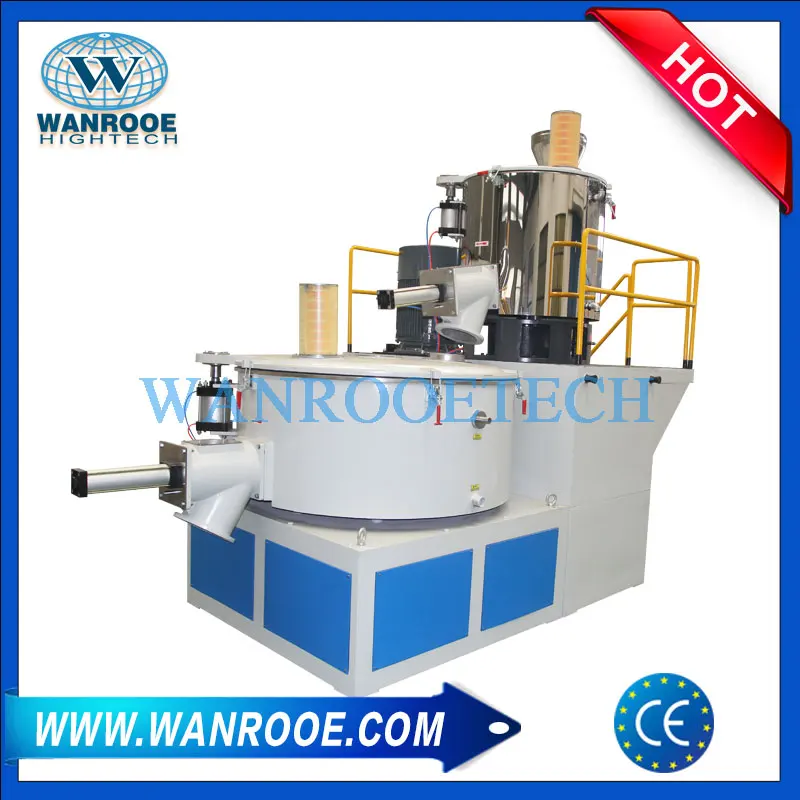

PVC High Speed Color Mixer Plastic Mixing Machine
Description:
The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.
It is an ideal equipment for plastics mixing.
Features:
1) All important parts(bowl, mixing tool, control cabinet) are manufactured in our factory, which ensure the quality of machine.
2) All material in contact with product is in SS304 or aluminum alloy and the product will nor be contaminated.
3) High cooling efficiency, short mixing time, easy and convenient to clean, and can reach high output.
|
Model/Specs |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
SRL-Z500/1000 |
SRL-Z800/1600 |
|
|
Total Cubage (L) |
100/200 |
200/500 |
300/600 |
500/1000 |
800/1600 |
|
|
Effective Cubage (L) |
65/130 |
150/620 |
225/380 |
375/650 |
600/1050 |
|
|
Mixed Speed(r/min) |
650/1300/80 |
475/950/80 |
475/950/80 |
430/860/60 |
370/740/50 |
|
|
Heating&Cooling Manner |
Electric Heating, Self-friction/water-cooling |
|||||
|
Mixed Time(min) |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
|
|
Motor Powder(KW) |
14/22/7.5 |
30/42/11 |
40/55/11/ |
47/67/15 |
60/90/22 |
|
