Full Automatic PVC Powder Dosing System

Adopt computer and PLC to supervise the whole system,and groups of formula data can be stored.It has characteristics such as production

statistics,random printing,real-time dynamic monitoring,fa lure warning,multistage password protection etc.

2.Adopt American TOLEDO electronic scale which is reliable and accurate， the accuracy is±3%o.

3.Adopt gas bag type discharger which can make material to be flowing easily.

4.Adopt central dust collector to prevent the dust pollution.

5.Full enclosed material conveying system to prevent secondary pollution and environmental pollution

6.Custom tailoring to suitable for different kinds of workshops.

Full Automatic PVC Powder Dosing System Advantages:

To the large scale PVC pipe/profile production factory, Advanced mixing system is essential,

Traditional mixing work is that people weigh and batching material, than move the mixed materials to extruder by people, this old way just fit for some small factory, and has many defects:

1. Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. The product percent of pass may be affected.

2. Labour intensity is large, human cost is high

3. Chemical raw material damage the worker's health.

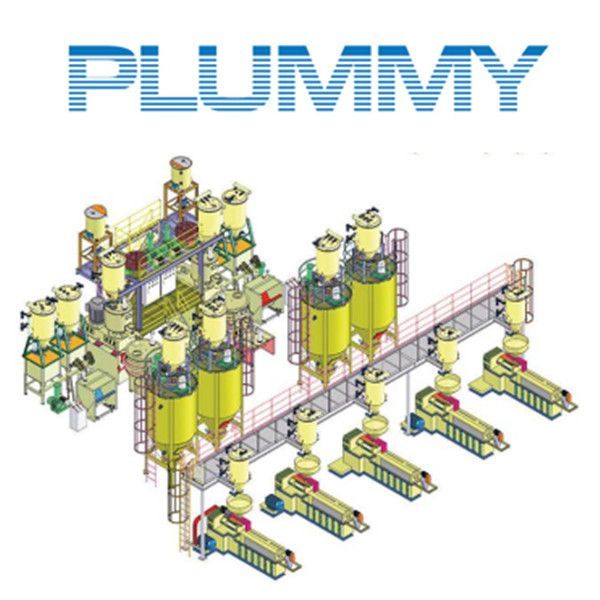

In order to salve these problems, our company design a PVC mixing system which the computer can automatic control weigh and batching, and feeding to extruder. This mixing system consist of automatic weighing, after weighing put the material in to the mixer unit, than use the air-operation pipeline transport the mixed material to extruder. The advantage of PVC mixing system:

1. Automatic weighing controlled by computer, that improves the accuracy and efficiency of burdening, and reduces the chemical damage to worker.

2. the air-operation pipeline transportation reduces the cost of worker, and increase the production efficiency, and all the material is in the closed pipe, so avoided dust to pollute the factory.
