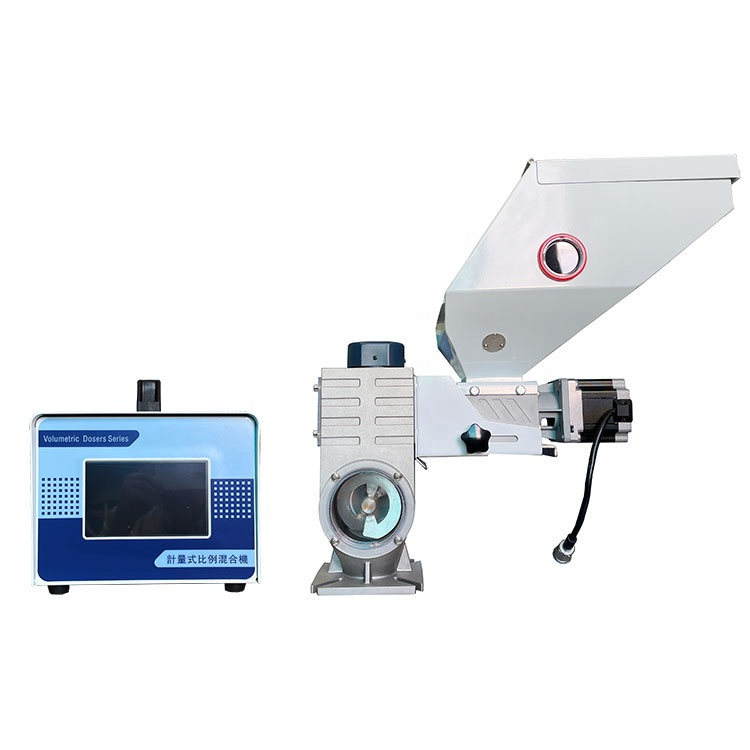

volumetric plastic mixer with color doser for extruder

Supplier: Dongguan Mitex Automation Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jess Wang
Price: $1500.00 / 1 - 9 sets
$1200.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Stirring power:	90W	Automatic level:	automatic
Weight (kg):	15 kg	Dimensions (LWH):	610335520
Package preview:		payment terms:	L/C, T/T
Rotating speed:	3000 rpm	Mechanical test report:	if
Marketing Type:	normal product	Warranty:	1 year
Reduction ratio:	50:1	Packaging Details:	1. Packed in wooden case. 2. Customization.
Showroom location:	Indonesia, India, Spain	port:	Shenzhen
Output (kg/h):	0.1 - 4 kg/h	Motor Power:	50W
Name:	plastic mixer	Core component warranty:	1 year
Applicable industries:	manufacturing plant	brand:	Metex
Core components:	engine	Screw diameter:	16
Health status:	new	Capacity (kg):	6.5
Origin:	Guangdong, China	application:	plastic dose
Video shipment inspection:	if	Supply capacity:	300 sets per month
Voltage:	AC220V 1 phase 50Hz	Material:	Stainless steel

Product Description

MMS-V series volumetric metering devices are specially designed for automatic and precise metering of masterbatches, additives or plastic granules in various productions.

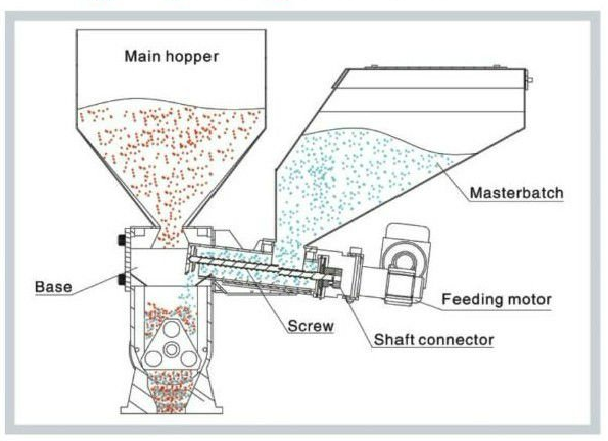

Working principle of monochrome feeder

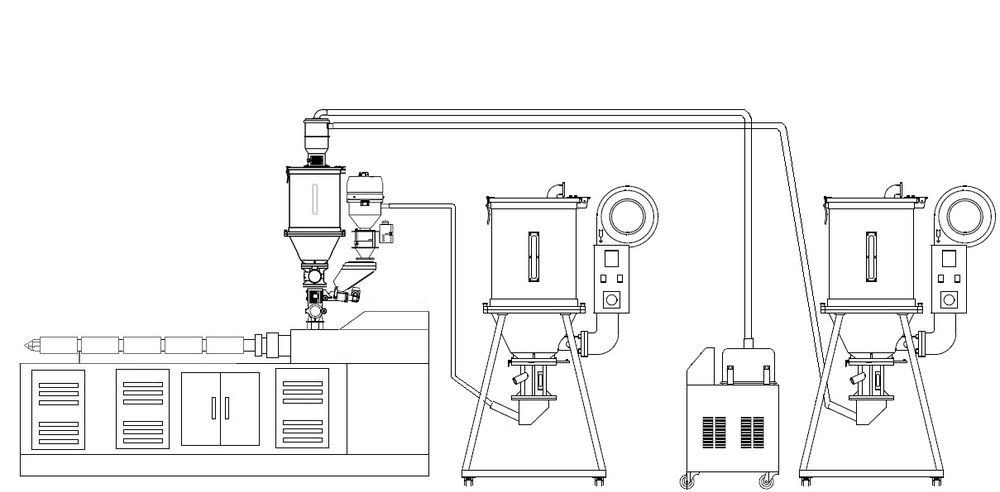

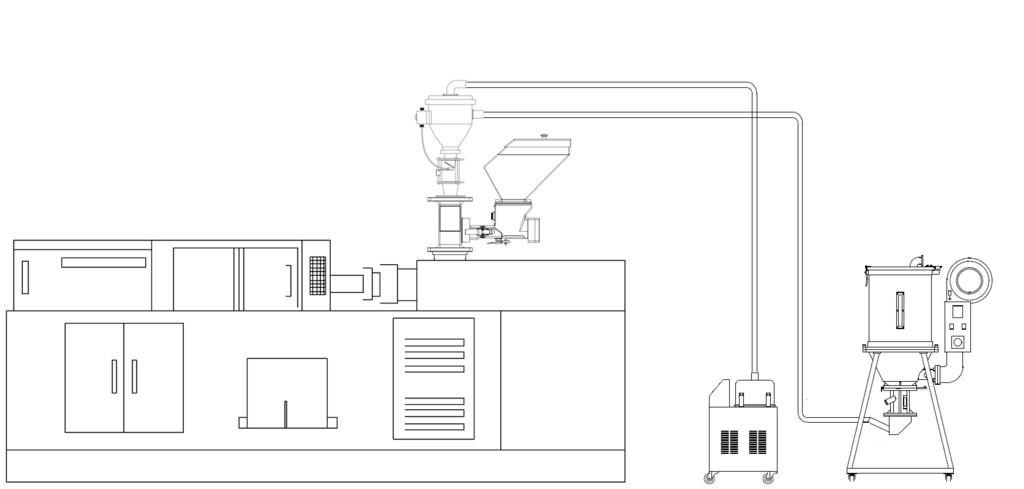

Installation diagram

Specification

Model	monochrome unit (MMS-V)
Model		30/25	30/20	30/16	50/25	50/20	50/16
Motor power (W)	50	50	50	50	50	50
Speed (RPM)	3000	3000	3000	3000	3000	3000
Stirring power (W)	Post-90s	Post-90s	Post-90s	Post-90s	Post-90s	Post-90s
Screw diameter	25	20	16	25	20	16
Output capacity(kg/h)	1.1-38	0.6-20	0.3-10	0.5-17	0.2-8	0.1-4
Storage hopper (L)	10	10	10	10	10	10
Reduction ratio	30	30	30	50	50	50
Dimensions (lengthwidthheight)	610355520MM
weight	15 kg
installation base	120*120MM
