Closed-loop PET FLAKES Crystallizer industrial equipment

Supplier: Dongguan Mitex Automation Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jess Wang
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training;	Place of Origin:	Guangdong China;
Certification:	ce;	Dimension(LWH):	1120x950x2760mm;
Heater ( Kw):	18;	Brand Name:	Mitex;
Voltage:	380V;	Condition:	New;
Volume (kg):	300;	Supply Ability:	10 Set/Sets per Month;
Application:	PET Flakes Crystallization;	Motor (Kw):	1.5;
Package Preview:	;	Weight:	500KG;
Power:	20KW;	Warranty:	1 Year;
Packaging Detail:	wooden case packing;	Capacity (Kg/hr):	150;
Payment Terms:	L/C,T/T;	Blower (Kw):	0.32;
Port:	shenzhen;

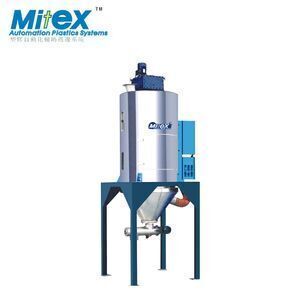

Closed-loop PET FLAKES Crystallizer industrial equipment

Introduction of crystallizer

MCR closed-loop crystallizers are used for constant crystallizeation of uncrystallized PET regrinds or pellets, Processed materials can then be dried and dehumidified directly. Crystallized materials can be conveyed to material storage bin or into drying hopper.

Features of crystallizer

Fixed speed of agitator makes material not lump together during the crystallization.

High efficiency and even crystallization.

Simplify and improve drying efficiency.

Materials can be dried under high temperature by using standard hopper.

Can be used with dehumidifiers for direct processing

Cyclone dust collector is standard, which is applied to dust-rich place. Can effectively reduce the load on air -return filte and extend the life of the filter to reduce the number of times of filter cleaning.

Safe design, access doors and removable Conesection have safety interlocks make cleanout conveniently.

Relible, high-quality material output, scientific structure&design.

Specifications of crystallizer

MODEL		MD- HCR100	MD-HCR300	MD-HCR-600	MD-HC1000	MD-HCR-1500
Volume (Kg)		100	300	600	1000	1500
Motor (Kw)		0.25	1.1	1.5	1.5	2.2
Blower (Kw)		0.55	2.2	3	5.5	11
Heater (Kw)		12	24	48	68	68
Capacity(Kg/hr)		50	150	300	500	750
Dimensions(mm)	mainframe(LWH)	91x120	85x150	130x170	150x170	165x230
Dimensions(mm)	control system (LWH)		66x145	76x145	76x145	76x145
Net weight(Kg)		230	500	860	1260	1750
