Single Shaft Shredder Blade Knife Knives Blade

Supplier: Wanrooe Machinery Co., Ltd. (Zhangjiagang)
Region: Jiangsu, China
Contact: Mr Anthony Xia
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Use:	Plastic Pipe Crusher;	blade material:	SKD-11;
Warranty of core components:	1 YEAR;	Voltage:	380v;
company brand:	wanrooetech;	shaft design:	single shaft;
Machinery Test Report:	not available;	Key Selling Points:	Automatic;
Core Components:	Bearing,MOTOR,pump,GEAR,PLC;	After-sales Service Provided:	Video technical support,Online support;
Color:	Customers' Demand;	Video outgoing-inspection:	Provided;
After Warranty Service:	Video technical support,Online support;	Plastic Type:	PP/PE;
Applicable Industries:	Manufacturing Plant;	Package Preview:	;
Weight:	depends;	Port:	Shanghai;
Shaft Design:	SINGLE;	Product name:	Single Shaft Shredder Knife Knives Blade;
Place of Origin:	Jiangsu China;	Dimension(LWH):	depends;
Capacity:	500-5000kg/h;	Power(W):	90-180kw;
Brand Name:	wanrooetech;	Payment Terms:	L/C,T/T,Western Union;
Weight (T):	3;	Marketing Type:	New Product 2020;
Showroom Location:	indonesia,pakistan;	Packaging Detail:	Single Shaft Shredder Knife Knives Blade wrapped with film then come into wooden case for container shipping;
power source:	380V 50Hz;	Local Service Location:	indonesia,pakistan;
Condition:	New;	Max.Production Capacity (kg/h):	2000;
Supply Ability:	500.0 Set/Sets per Year Single Shaft Shredder Knife Knives Blade;	Power (kW):	90;
motor brand:	Siemens;	Warranty:	1 YEAR;
Production Capacity (kg/h):	100 - 2000 kg/h;	Certification:	CE;

Single Shaft Shredder Knife Knives Blade

Product Description

To better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, WhatsApp, wechat, etc.)

Description:

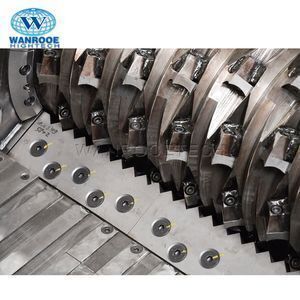

Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, metal scrap, and paper, etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. Four edges are easy to change. ‘V’ shaped rotary cutters are fixed on a single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also, the knives are very easy to install and remove.

Technical Features:
1. The shredder single shaft for plastic with the big feeding mouth, it can put the big plastic or rubber product freely.
2. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3. The shredder single shaft for plastic is controlled by PLC system; the blade can rotate in the opposite direction and close automatically if something unexpected happens; with very high safety service.
4. The shredder single shaft for plastic runs slowly with low noise and less dusty.
5. The blade material with special alloy steel made, with a long life.
6. All the machinery and electrical devices are protected following the European CE standard.
7. Hydraulic system Pushes the material automatically to the shredding rotor while working. More efficient and can achieve a high capacity. According to material kind, it can adjust the pushing speed to avoid overload.
8. The cooler system(optional) can maintain the temperature for continuous operation.

Application Areas:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums.
•Metal: Lathe Shaving Swarf Scraps.

	Related Product
	/Double Shaft Shredder Blade/

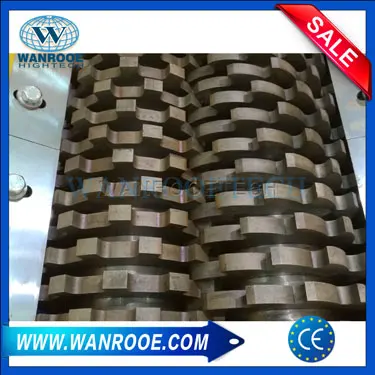

	Double Shaft Shredder with loading hoppers, equipped with high-quality cutters with low rotation speed for lower energy consumption and noise reduction; It incorporates two counter-rotating shafts that intermesh with each other.
	Learn More

	Related Product
	/Crusher Blade/
	Plastic crusher is specialized in crushing various kinds of plastic materials into different sizes of granules(3-8mm). Crushed plastics can be recycled for the reproduction of plastic products. This machine can help reduce the volume of plastic waste, greatly save costs and resources.
	Learn More

Motor power(kW)	PNDS-600	PNDS-800	PNDS-1000	PNDS-1200	PNDS-1500
Rotating speed(rpm)	80	80	80	80	80
Rotating blades(pcs)	23+4	42+4	54+4	66+4	90+4
Fixed blades(pcs)	4	4	4	4	6
Hopper intent(mm)	790x600	1300x800	1300x1000	1300x1200	1300x1500
Change screen mesh	Manual	hydraulic	hydraulic	hydraulic	hydraulic
Weight(kg)	1650	3650	4250	5050	6300
