Low Price PP PE Densifier Plastic Film Agglomerator Machine

Product details
Dimension(L*W*H):according to model;Applicable Industries:Manufacturing Plant;
Capacity:50-800 kg/h;Motor:SIEMENS Brand;
Video outgoing-inspection:Provided;Payment Terms:L/C,T/T,Western Union;
Marketing Type:New Product 2020;Showroom Location:Indonesia,Pakistan;
Condition:New;Warranty:1 Year;
Local Service Location:Indonesia,Pakistan;Port:Shanghai;
Supply Ability:10 Set/Sets per Month PNAG Low Price PP PE Densifier Plastic Film Agglomerator Machine;Material:PP/PE;
Core Components:PLC,Engine,Bearing,Motor,Gear;Plastic Processed:PE/PP,PP;
Brand Name:wanrooetech;Packaging Detail:standard export packing;
Screw Design:Single;Voltage:380v/440v;
Product name:Low Price PP PE Densifier Plastic Film Agglomerator Machine;Place of Origin:China;
Output (kg/h):50 - 800 kg/h;Raw material:PP PE ABS PC PET;
Application:Recycling Plastic Waste;Function:Plastic Rcycling;
Machinery Test Report:Not Available;Power:30-110kw;
Weight:variable;Certification:ISO,CE;
After Warranty Service:Video technical support,Online support;Warranty of core components:1 Year;
Type:Recycling Granulator;Original Place:Jiangsu;

Low Price PP PE Densifier Plastic Film Agglomerator Machine

Product Description




In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Application areas:
Plastic Agglomerator Densifier Compactor Machine is used to agglomerate the plastic scrap such as wet or dry recycling PP,PE, HDEP, BOPP, HDPE plastic film,PP non-woven, scrap mask meltblown cloth, chemical fiber,jumbo bags, bulk bags, plastic bag, big bag, woven bags, PP woven big bags, container bags, big super sacks, tons bag, space bags, food bags, cement bags, raffia bag, bulk bag, waste fishing nets and etc.



Description:
The agglomerator (plastic film granulator) is a kind of waste thermoplastic thin film, and wall thickness is less than 2 mm of products can be granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.



Working principle:

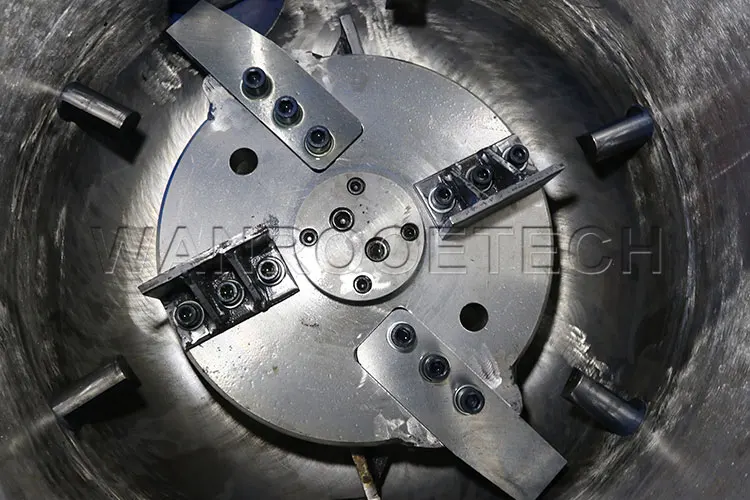

Putting the waste into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear ,then the material along the pot body wall by the knife dish centrifugal force function, at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of material itself and friction of pot wall and blades produce much friction heat under the high speed, making the temperature of the material rises to the half-plastic condition and connects to a small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touches the hot materials will gasify and take out the surface heat soon, making the surface of the materials cool quickly and avoid blocking, then after the crushing effect between the rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.



Features:
1.The PP/PE Plastic Agglomerator is used for the fast recycling of waste films, woven bags.
2.The Machine can quickly granulate used thermoplastic film or the thermoplastic products which thickness less than 2mm.
3.It’s applicable to the agglomerating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.
4.The granules produced by the plastic agglomerator can be supplied to the pelletizing machine for further granulating or just fed to extruder and injection machine.
5.It is for augmentation of the bulk density of the LDPE, HDPE, PP, BOPP, PET film & bags flakes.



Special Features:
The strong design of double-bearing for holding the main shaft.
High-performance blades.
Temperature control.
Water flushing automatically.
Motor power from 18.5kw to 132kw.
Processing capacity from 50kg/h to 500kg/h.



Related Equipment:
Double Stage PP PE Plastic Film Woven Bag Plastic Granulating Line
Single Stage PP PE HDPE BOPP Plastic Film Compactor Pelletizing Machine
PP PE Plastic Film Pulverizer Mill Machine

Model

PNAG-100

PNAG-200

PNAG-300

PNAG-500

PNAG-600

PNAG-800

Volume(L)

100

200

300

500

600

800

Output(kg/h)

100

150

200

300

400

550

Blades QTY

2+6

2+6

2+8

4+8

4+8

4+8

Main Motor(kw)

37

55

75

90

90-110

132
