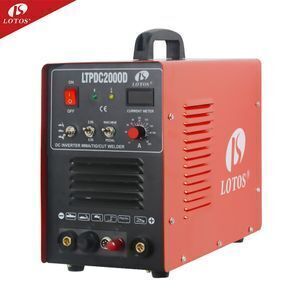

Lotos LTPDC2000D CUT MMA TIG 3 in1 welder plasma cutter inverter welding machine Plasma welder best price for black friday gift

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Package Type:1 set/carton;
Single package size:64X32X42 cm;Condition:New;
Place of Origin:Zhejiang China;Input Voltage:220v;
Color:Red;Package Preview:https://sc02.alicdn.com/kf/HTB1MDFDbRSD3KVjSZFqq6A4bpXaR.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB16hBBbRiE3KVjSZFM762QhVXaY.png_640x640.png;
Brand Name:lotos;Dimensions:64x32x42cm;
Certification:ce;Packing:Carton;
Input Power Cable Length:6' (1.8m);Usage:welding and cutting;
Power Efficiency:85%;Selling Units:Single item;
Weight:19.5kg;Single gross weight:19 KG;
After-sales Service Provided:Free spare parts,Online support,Video technical support;Accessories:Earth Clamp;
Applicable Industries:Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Construction works ;Power(W):42kva;
Type:IGBT;Warranty:2 years;
Rated Current:200;
Product Description







        The Lotos LTPDC2000D is a first to market multi purpose welder that allows the user to DC TIG/Stick weld and plasma cut all from one portable machine. LTPDC2000D combines 3 functions into one with a 200amp DC TIG Welder, a 200 Amp Stick Welder, and a 50amp Pilot Arc Plasma Cutter with the flip of a switch. It is able to cut various types of metal up to 1/2 inch with the 50A pilot arc plasma cutting function. It is designed especially for businesses and DIY (do-it-yourself) users, while fully accommodating the demands of professional operators. An optional foot pedal is available for purchase.





Product Features



3 in 1 Combo



LOTOS LTPDC2000D is a multipurpose 3 in 1 combo welding machine (Dual Voltage 220V/110V):

-50A Pilot Arc Plasma Cutter

-200A TIG Welder

-200A Stick Welder

Non-touch Pilot ARC



Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag.



Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life.

1/2 Inch Clean Cut



-Max Rated Clean Cut Thickness: 1/2’’

-Max Severance Thickness: 3/4’’

-DC TIG Output Current: 10-200A @ 220V & 10-150A @ 110V



-DC Stick/MMA Output Current: 10-200A @ 220V & 10-150A @ 110V

Dual Voltage



Automatic Dual Voltage / Dual Frequency (110V/220V 50/60Hz).



Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or on 110V 50/60 Hz with the use of a pigtail (sold separately).







  • [Non-Touch Plasma Cutter] 50AMP Plasma Cutter Current Output; Max Ideal Cut Thickness: 1/2" ; Max Severance Thickness: 3/4"; Pilot Arc Torch Efficiently Cuts Though Rough, Painted, and Rusty Surfaces and Produces Minimal Slag; Compact Plasma Cutter Has a Handle for Portability and Uses Non-Hazardous Compressed Air to Cut Stainless Steel, Alloy Steel, Mild steel, Copper, and Aluminum
  • [TIG Welder] 15-200AMP DC TIG Electric Current Output; Quality TIG welding on Stainless or Steel and Precise Welding of Thinner-gauge Materials;HF; Both HF start hand torch control and Support Precise Foot Pedal Welding Heat Control(Foot Pedal NOT Include).
  • [Stick/MMA Welder] 15-200AMP DC Stick/MMA Electric Current Output; Easy ARC Start, Stable Welding Arc,Deep Weld Pool and Beautiful Welding Shape; Adjustable Hot Striking Arc Current which Can Greatly Improve the Arc-Starting Function; Suitable for Welding with Different Kinds of Acid or Basic Electrode
  • [Dual Voltage] Automatic Dual Voltage / Dual Frequency (110/220V 50/60Hz); Dual Voltage Capability Allows the Machine to Run Directly on 220V 50/60 Hz Power, or on 110V 50/60 Hz with the Use of a Pigtail (sold separately)
  • [Include]: 1 Year Limited Warranty; Power Supply; Cutting Torch; Tig Torch; Sitck/MMA Welder Torch; Consumables; Ground Clamp; Air Filter and Regulator; Argon Regulator; Connections





+

LOTOS LTPDC2000D

General

Specification

Type

Inverter-MOSFET

Functions

50A Pilot Arc Plasma Cutter

200A TIG Welder

200A Aluminum STICK Welder

Input Voltage

110-220V, 1-PH, 50/60 Hz

Efficiency

85%

Dimension

394*203*305mm

Weight

19.5kg

Plasma

Cutting

Rated Input Power Requirement

120-220V, 1-PH, 27A +/- 15%, 50/60 Hz

Output Current

10-50A @ 110/220V

Duty Cycle @ 40℃ (104℉)

60% @ 50A

100% @ 35A

Cutting Material

Mild steel, stainless steel, aluminum, etc.

Max Cutting Thickness

12.7mm

Gas Supply

Clean, dry, oil-free air

DC TIG

Welding

Rated Input Power Requirement

120-220V, 1-PH, 17A +/- 15%, 50/60 Hz

Output Current

15-200A @ 110/220V

Duty Cycle @ 40℃ (104℉)

60% @ 200A

100% @ 150A

No-load Voltage

62V

Working Voltage

16.9V

Welding Material

Steel, Stainless, Moly, Ferrous

Gas Supply

Clean, dry, oil-free argon gas

DC STICK

Welding

Rated Input Power Requirement

120-220V, 1-PH, 23A +/- 15%, 50/60 Hz

Output Current

15-200A @ 110/220V

Duty Cycle @ 40℃ (104℉)

60% @ 200A

100% @ 95A

No-load Voltage

62V

Working Voltage

25V

Welding Material

Steel, Stainless, Moly, Ferrous
