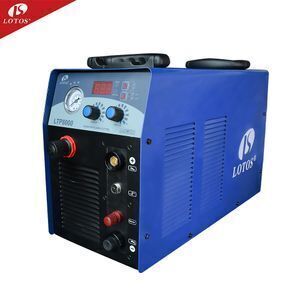

The LOTOS LTP8000 80a plasma cutting 50/60 Hz 220v DIY Cut plasma cutter 80a lotos 8000 cutter machine

Product details
Package Type:1 ser/carton;Dimension(L*W*H):483*203*305mm;
Motor Type:Stepper Motor;Open Circuit Voltage:230V;
Dimensions:64x32x42cm;Pilot Arc Start Mode:High Frequency;
Condition:New;Output Current:20-80A;
Place of Origin:Zhejiang China;Warranty:2 years;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE; CCC;
Weight:24kg;Single package size:64X32X42 cm;
Rated Power:7.5kw;After-sales Service Provided:Free spare parts,Field installation, commissioning and training;
Input Current:30A;Package Preview:https://sc02.alicdn.com/kf/HTB1QeOylUOWBKNjSZKzq6xfWFXah.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1BbozlRjTBKNjSZFw763G4XXa7.png_640x640.png;
Name:LOTOS LTP8000 Plasma Cutter;Single gross weight:18 KG;
Duty Cycle:60%/100%;N0-load Voltage:230V;
Max Cutting Thickness:38mm;Brand Name:Lotos;
Voltage:220V;Color:Red;
Selling Units:Single item;
Product Description









        The LOTOS LTP8000 IGBT Plasma Cutter is one of the most powerful inverter plasma cutters in the market. The pilot arc feature is especially useful for continuous cutting on rough surfaces or dirty metal. It has been redesigned to incorporate the latest high frequency inverter technology using V-MOSFETs, along with PWM (Pulse Width Modulation), the combination of which help deliver a far more constant, concentrated and precise current to the cutting surfaces. With this plasma cutter, the user can achieve smooth, clean and uniform cuts on a wide range of surfaces with minimal heat input and without distortion of metal. It is very easy to use by the DIY user, which fully accommodating the demands of professional operators.





  • Compact plasma cutter has a handle for portability and uses non-hazardous compressed air to cut stainless steel, alloy steel, mild steel, copper, and aluminum
  • Pilot arc torch efficiently cuts though rough, painted, and rusty surfaces and produces minimal slag
  • MOSFET transistor produces a uniform output to enable cutting of thin metal and can reach high power output for cutting thick metal;PAPST Advanced German Cooling System;
  • Max Severance Thickness: 1 1/2" Inch; Ideal Cut Thickness: 1" Inch
  • Includes a plasma torch, ground clamp and cable, air regulator, air hose, and air hose connections





Product Features





Non-touch Pilot ARC



Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag.



Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life.

1 Inch Clean Cut



-Max Rated Clean Cut Thickness: 1’’

-Max Severance Thickness: 1 1/2’’



Compact plasma cutter has a handle for portability and uses non-hazardous compressed air to cut stainless steel, alloy steel, mild steel, copper and aluminum.

Advanced cooling System



With the PAPST advanced German cooling system, LOTOS LTP8000D can performance 60% duty cycle @ 80A output & 100% duty cycle at 60A output.





Features:

  • 80 Amp IGBT pilot arc plasma cutter;
  • Automatic dual frequency (50/60Hz);
  • High frequency start and contact start hand torch;
  • Suitable for Stainless Steel, Alloy Steel, Mild Steel, Copper, Brass and Aluminum, etc.



Package Includes:

  • Plasma cutting torch CB172 (17ft long, 2 pin connection);
    Ground clamp (6ft long); Air hose (6ft long); 4 air hose clips and 2 air hose connections;
  • Air filter gauge AR01; Mounting bracket for air filter AR01; Air filter AR01 and user Manual.







+

LOTOS LTP8000

General

Specification

Input Voltage

220-240V, 1-PH, 59/60Hz

Input Current

30A

Duty Cycle @ 40℃ (104℉)

60% @ 80A

100% @ 40A

Dimension

533*305*216mm

Weight

23.6kg

Plasma Cutting

Specification

Output Current

20-80A

Material

Stainless steel, mild steel, aluminum, etc.

Cutting Thickness

25.4mm

Max Cutting Thickness

38mm

Gas supply

Clean, dry, oil-free air

Recommended Gas Inlet

Flow Rate/Pressure

4.8scfm @ 75Psi

(Min. Pressure 65psi)
