Agitator Tank For Ore Beneficiation Copper Ore Floatation Tank Machine

Product details
Dimension(L*W*H):1690*1500*2386mm;Chute height:1500mm;
After-sales Service Provided:Online support;Brand Name:The Nile;
Condition:New;Motor Type:AC Motor;
Warranty:1 year;Impeller diameter:400mm;
Motor power:3kw;Place of Origin:Henan China;
Port:QingDao;Application:Mineral agitation barrel;
Impeller speed:320r/min;Production Capacity:98%;
Supply Ability:400 Set/Sets per Month;Weight:861kg;
Chute diameter:1500mm;Type:Leaching Tank;
Payment Terms:L/C,T/T;Effective Volume:2.0m3;
Factory visit:welcome;Packaging Detail:Standard export container;
Type:Leaching Tank;Certification:CE ISO;
Motor model:Y132S-6;
Product Description

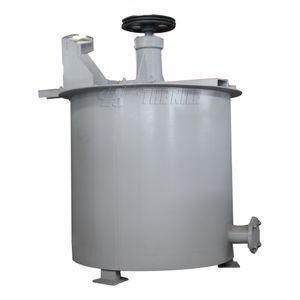

Agitator Tank For Ore Beneficiation Copper Ore Floatation Tank Machine


The mixing barrel of The Nile has compact structure and good sealing performance, and a gray ash plate is arranged at the feeding port to prevent the water mist from collapsing. Stir well, the mixing blade is fan-shaped, and the contact area with the medium is large when stirring. The nozzles are arranged in multiple rows, and the water volume is uniform and adjustable. Advanced performance, stable quality of finished products, uniform mixing and rapid discharge.



The mineral agitation barrel is driven by the electric motor to rotate the impeller, and the upper and lower circulation stirring is carried out in the tank body, so that the medicine and the slurry are well mixed uniformly, and the necessary reaction equipment for increasing the reaction time of the medicine is enhanced. It is mainly used for better beneficiation operation before flotation.



Application range :It is widely used in the mixing of various metal ore and non-metal minerals, and the concentration is not more than 30% (by weight) of pulp with a particle size of less than 1 mm. It can also be used in industrial sectors such as slurry mixing and cyanide plants and sewage treatment plants in the chemical and building materials industries.



Model NO.Chute size(mm)

Effective volume















Packaging & Shipping

Standard package in wooden boxes or containers.



Company Information


The Nile Co., committed to designing,producing grinding mills,crushers,conveyors,feeding machine,drying and calcinating as well as beneficiation equipments,fine sand recyling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry ,wharf,granary,chemical industry.Our products have been spreaded all over China,and also exported to

European,American,Asian,African countries and enjoyed great popularity among our customers.
Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.



Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions. Our Machines enjoy a high reputation in the foreign market. You are very welcomed to visit our factory, and hope there are chance for us to have a long term cooperation.



Product Cases



Our Services


 Pre-sale services:

(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program


 After-sale services :

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
