1530 plasma cutting machine 160A plasma source with THC for metal cheap price

Supplier: Jinan Dwin Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Matthew ma
Price: $6400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 Years;	Place of Origin:	Shandong China (Mainland);
Cutting thickness:	based on plasma source power;	Single package size:	416X220X135 cm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Work mode:	Non-contact arc striking;
Rated Current:	CNC plasma cutting machine;	Package Type:	1 set DW1530 plasma cutting machine packing by plywood box;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Power(W):	CNC plasma cutting machine;
Traveling speed:	0-50m/min;	Brand Name:	Dwin;
Single gross weight:	1,500 KG;	Condition:	New;
Document transmission form:	USB interface;	Plasma Current:	China brand 160A;
Package Preview:	https://sc01.alicdn.com/kf/HLB1TkWiazzuK1RjSspeq6ziHVXaj.jpg_640x640.jpg;	Working form:	Untouched arc striking;
Input Voltage:	3-phase 380V;	cutting speed:	0-8000mm/min;
Delivery Detail:	0 days after payment;	Usage:	cutting metal sheets;
Selling Units:	Single item;	Certification:	CE ,SGS;
Dimensions:	1500x3000mm;

1530 plasma cutting machine 160A plasma source with THC for metal cheap price

NOTE:the color of the machine can be customized based on requirements.

Quality cutting thickness(steel materials):0.5-20mm

Product Description

DW1530 plasma cutting machine details:

1.working size:1500*3000mm

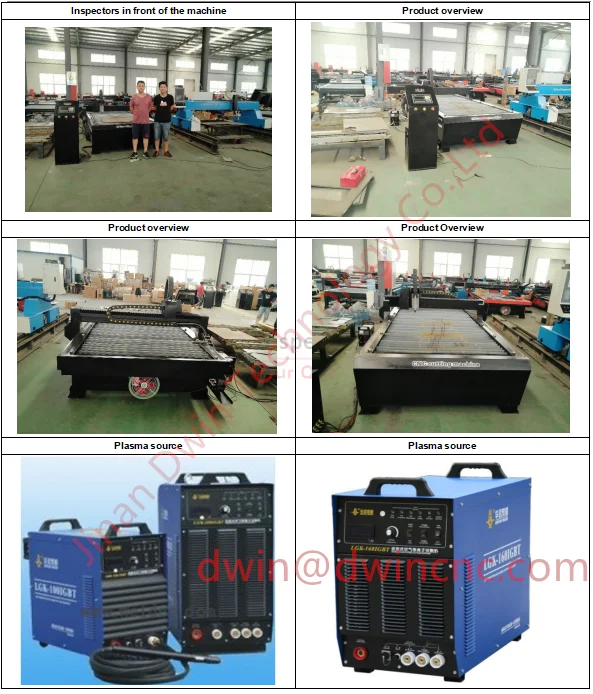

2.Plasma source China Huayuan 160A (other brand can customize )

3.Step motors and drivers

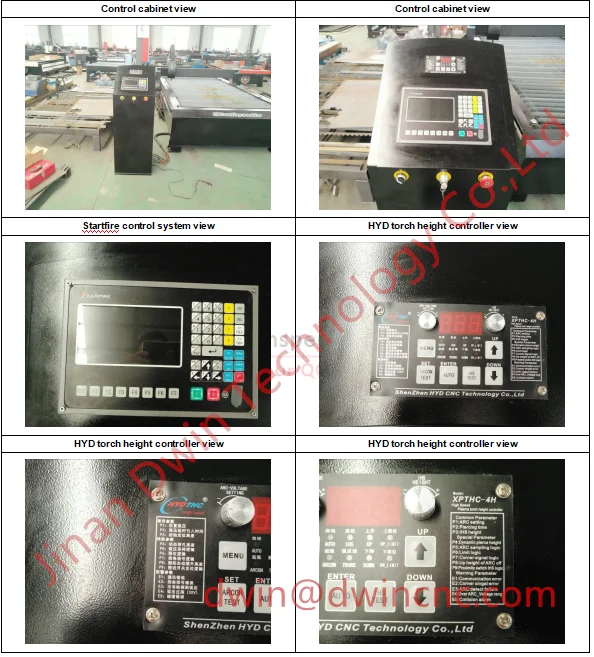

4.STARFIRE control system

5.HYD height controller

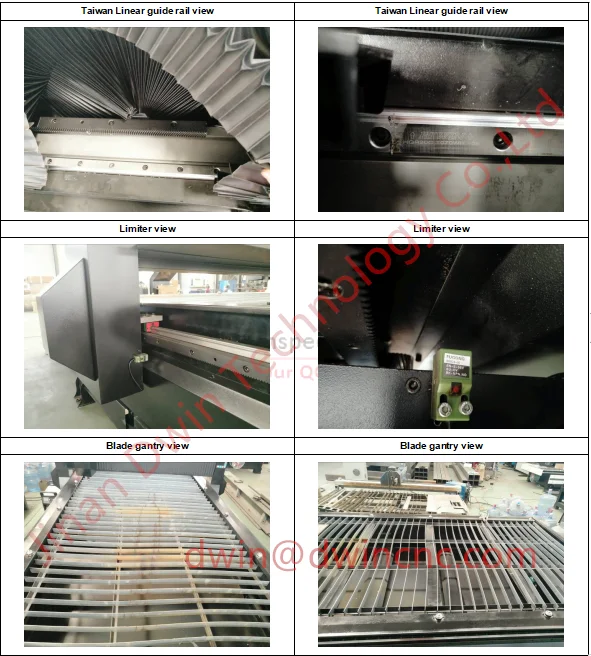

6.Taiwan Linear guide rail

7.Working Form:Untouched ARC striking

8.Document transmission Form:USB interface

9.Fastcam software

10.Blade table

11.Tool Box

12.20 sets Nozzles and electrodes

1.Detail introduction of our Plasma cnc cutter

The machine can be customized according to your needs. Including size, color structure, etc., we will recommend most suitable machine for you.

All these parts can be customized also.

2.Technical Parameter

Model Parameter	Industrial plasma cutting machine
Model	DW-1325	DW-1530
Working size	1300*2500mm	1500*3000mm
Three axes Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Transmission system	X,Y ,Z round rail
Max. cutting speed	15000mm/min
Working voltage	AC380/60HZ
Control system	Beijing STARFIRE plasma cutting system Standard HYD high sensitivity arc voltage device
Software support	FASTCAM, AutoCAD
Instruction format	G code
Drive system	Stepper motor
Plasma power	China 160A Huayuan
Power cutting ability	Domestic Huayuan 0.5-20mm US Powermax series 0.5-30mm
Working pressure	0.65-0.7Mpa

3. Machine Details and features

1. Unique structure: Gantry structure, double motor driver of Y axis. Special light beam design, linear guide rail, high accuracy, stable transmission.

2. Untouched plasma head, small cutting edge, no cutting residue.

3. Water cooling system avoids the distortion of metal board.

4. High cutting speed, low cost.

5. Advanced numeral control system, stable performance.

6. Software compatibility: Ucancam, Type 3, Artcum, etc.

7. Success ratio of arc striking can be over 99%.

8.Application area: Metal sheets such as Iron sheets, Aluminum sheets, Galvanized sheets. Titanium Plates.

4.Shipping and payment terms

Payment term:

30% T/T down payment, 70% T/T before delivery the machine.

Training:

One technician will be assigned to customer company for 3 working days on free of charge basic. Customer is responsible for accommodation, food and air tickets.

Remark:

1. Installation guide and manual and tool kit will be sent to Buyer with machine.

2. All spare parts on machine we take use high quality and professional installation.

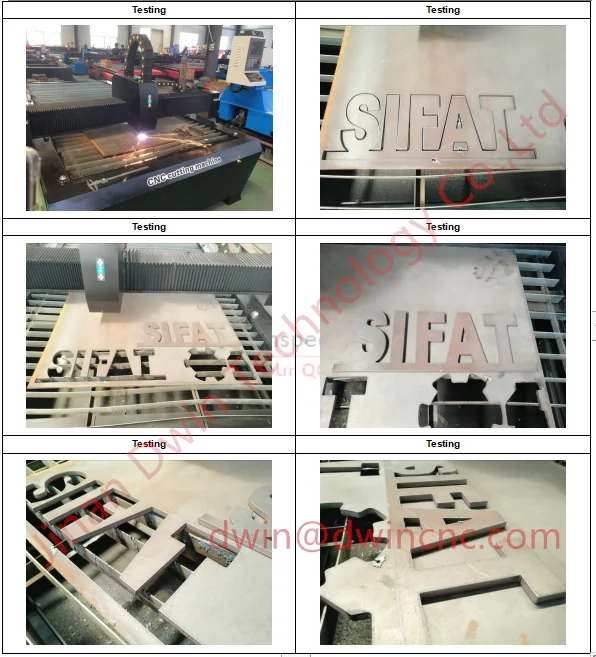

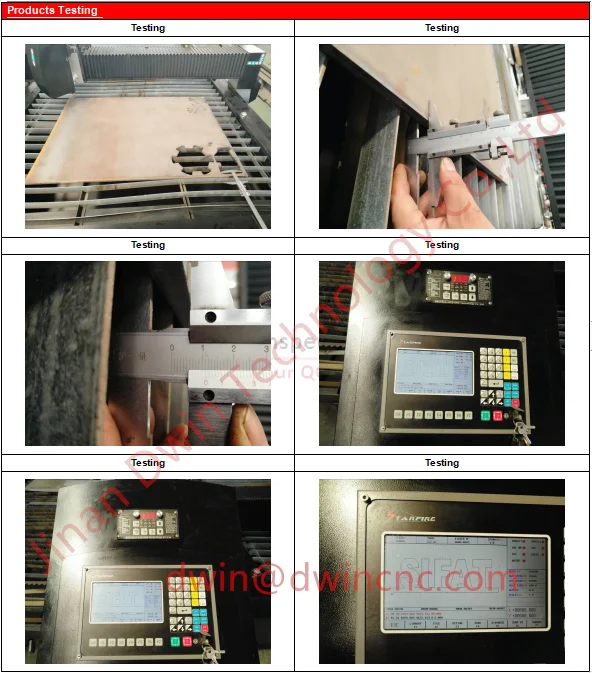

3. Machine has been tested for 72 hours without stop before delivery.

4. CE authorized , Dwin strictly carried out.

Guarantee & After Sales Service:

1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

5.Images of the machine details
