Price for drinking paper straw making machine

Supplier: Ruian Honetop Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cindy Lu
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	4000x1600x1200 mm;	Tube diameter:	5-30 mm;
Straw Inner Size:	4.7-12mm;	Voltage:	380/220;
Showroom Location:	None;	After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:	Honetop;	Straw Wall Thickness:	0.5-2mm;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;	Machine:	Price for drinking paper straw making machine;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Packaging Detail:	Price for drinking paper straw making machine (standard exporting packing) Oil the machine to anti-rusting, then film pack the whole set, final pack into wooden case.;
Supply Ability:	20 Set/Sets per Month;	After Warranty Service:	Video technical support;
Certification:	CE;	Weight:	2000kg;
Operator:	1-2 Person;	Local Service Location:	None;
Number of roller:	1-5 lays;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Shanghai, Ningbo;	Gumming Way:	Single And Double Side;
Place of Origin:	Zhejiang China;	Power(W):	7kw;
function:	drinking straws;	Speed:	35-40m/min;
Condition:	New;	Warranty:	1 year;

Product Details

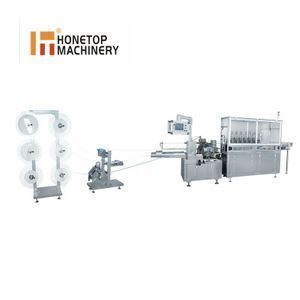

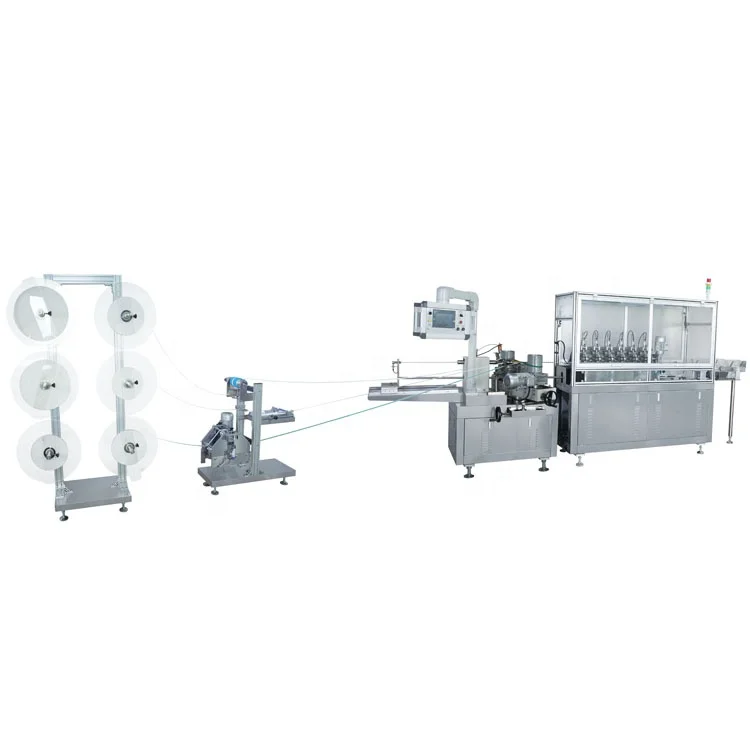

HT-60 Stainless Steel High Speed Paper Straw Making Machine

This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

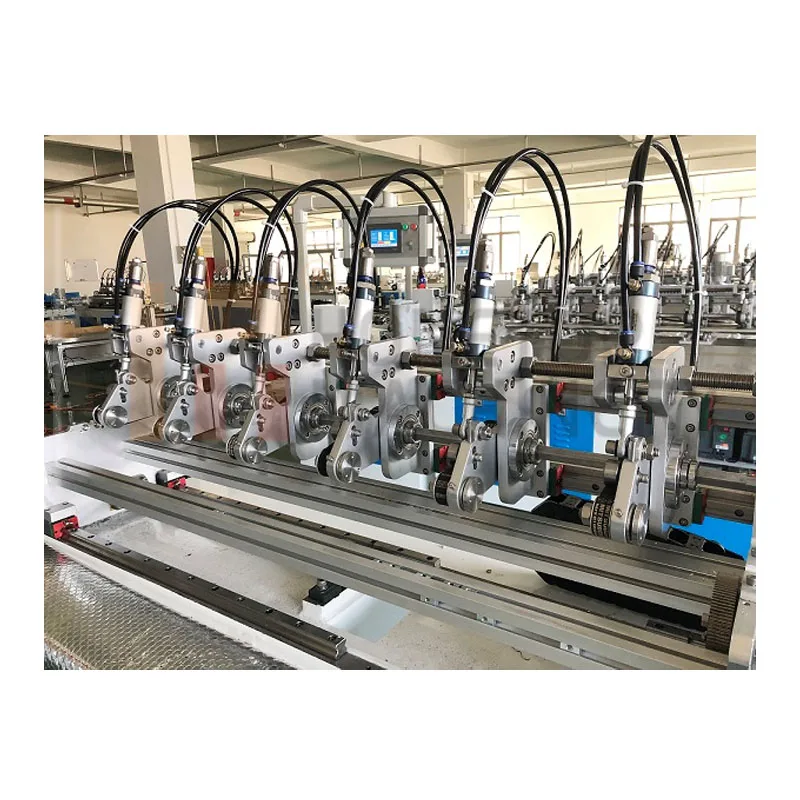

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

Technical Parameter

Technical Parameter		Control System
Paper Layer	3 layers	Motor	3.0kw
Inner Diameter	5-12mm	PLC	Panel Master
Wall Thickness	0.5-1mm	Operating Panel	Panel Master
Winding Speed	20-40 meters/min	Inverter	3.7kw Schneider
Winding Nose	Two noses single belt	Electric Components	Schneider
Cutting System	Numerical Multi-blades (standard 5 pcs)	Servo Motor	Schneider
Synchronism tracking cutting system	Servo motor synchronism tracking	Pneumatic Components	Jingwei
Synchronism tracking cutting system	Servo motor synchronism tracking	Bearing	Haerbin

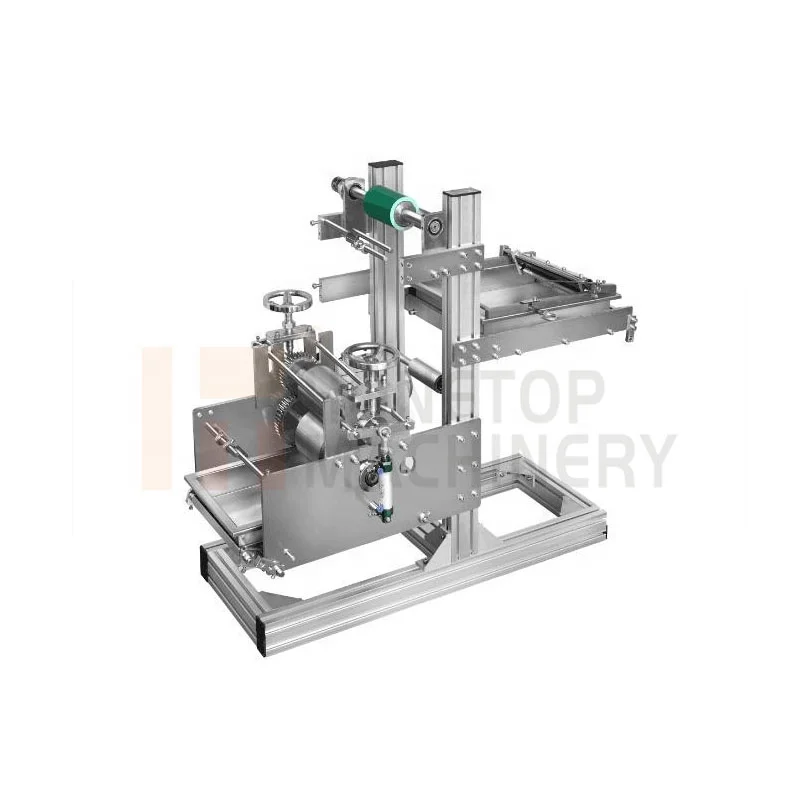

Gluing Way	Single/Double sides	Screw Rod / Slider	Shangyin
Working Air Pressure	0.6Mpa	Configuration

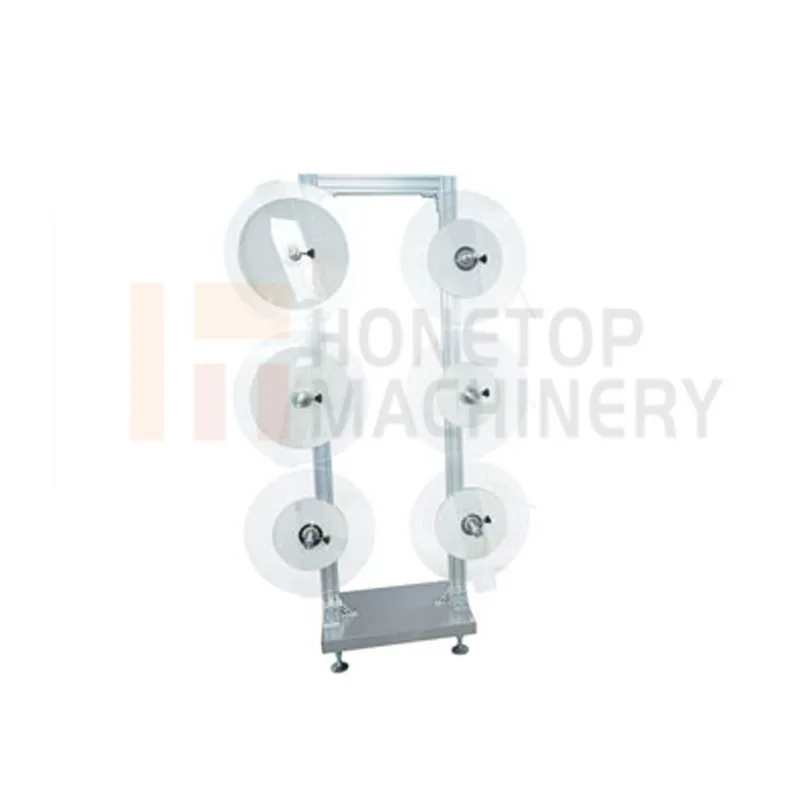

Operator	1-2 person	Paper Reel Stand	3 Layers
Power Supply	380V/3Phase/50Hz	Gluing Unit	3Layers
Measurement & Weight		Belt	5 Pieces
Measurement	350015001200mm	Mandrel Shaft	2 Pieces
Working Space	7000*5000mm	Extra blades	5 Pieces
Weight	1300kgs	Useful Tool	1 Set
