Bottle UnguentBulb Plastic Warp Tube Blister Carton Box Packing Machine

Supplier: Ruian Honetop Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cindy Lu
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Material:	Plastic,Paper;	Type:	Packaging Line;
Packaging Detail:	tube box packing machine (standard exporting packing) Oil the machine to anti-rusting, then film pack the whole set, final pack into wooden case.;	Driven Type:	Electric;
Packaging Type:	Cartons,Cans,Case;	Brand Name:	HONETOP;
Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles;	After Warranty Service:	Video technical support;
Showroom Location:	None;	Voltage:	110v, 220v, 240v, 380v;
Machine weight:	1500kg;	Encasing Speed:	30-80box/min;
Key Selling Points:	High Productivity;	Port:	NINGBO;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	After-sales Service Provided:	Engineers available to service machinery overseas;
Payment Terms:	L/C,T/T,Western Union;	Dimension Range:	(70-250)mmX(50-120)mmX(20-90)mm;
Condition:	New;	Type:	horizontal;
Speed:	Adjusted;	Enviroment Temperature:	25±10℃;
Frequence:	50HZ(60HZ);	Warranty:	1 year;
Main Function:	automatic carton box packing;	Supply Ability:	10 Set/Sets per Month;
Certification:	CE, ISO;	Dimension(LWH):	350013501900mm;
Automatic Grade:	Automatic;	Machine Material:	#304 stainless steel;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;	Place of Origin:	Zhejiang China;
Local Service Location:	None;

Product Description

Material in box packing

This machine can pack various finished products into boxes.Such as light bulb, toothpaste,plastic wrap,bottle,etc.

The final output product

These are just a few boxes, and this machine can also pack many other types.

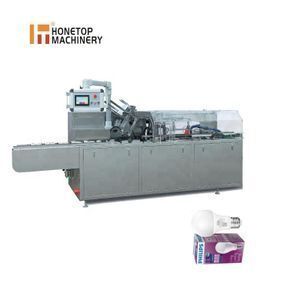

Machine Picture Show

HTH-120T

Product Application

HTH-120T is the fastest Continuous Motion Cartoning Machine in our company. It is suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, etc .

SPECIFICATIONS FOR CARTON PACKAGING MACHINE HTH-120G
Encasing Speed	30-80box/min
Box Quality Requirement	250-450g/m2 (according to customer request)
Box Dimension Range	(70-250)mmX(50-120)mmX(20-90)mm (can customize according to request)
Leaflet	Unfolded leaflet specificationL×W (80-250)mm×(90-170)mm Fold rang (1-4) fold
Compressed Air Working Pressure	>=0.6mpa
Air Consumption	20m3/h
Power Supply	380V 50Hz(Can be ajusted)
Motor Power	1.5KW
Noise	≤80dB
Environment temperature	25±10℃
Machine Dimension	4200X1350X1900mm
Machine Weight	1500KG

Certifications

Main Features

1.Many of electrical appliances are made by international famous brand. For example:Japan OMRON PLC, SMC pneumatic element, Germany BECKER vacuum pump and Switzerland Robatech hot melt applicator.

2.The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. For example ,The paper box will not be supplied without material; the glue will not be sprayed without the paper box. The machine will alarm when the paper box is not in position, and will stop when the material is not supplied and the machine can stop automatically if overload happen,etc.

3.Simple structure in linear type ,easy in installation and maintation. Running in a high automatization and intellectualization,no pollution

4.It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.

COMPONENTE LIST

The brand can be configured according to the customer's requirements

Name	Model and Specification	Place of Origin or Brand	Quantity
PLC	LP1E-30DR-D	Japan Omron	1
Coder	E6B2-CWZ6C	Japan Omron	1
Touch screen	MP5-SQ000 B1	Japan Omron	1
Frequency Converter	3G3CV-A4015	Japan Omron	1
Servo motor	0.4KW	Taiwan	1
vacuum generator	ZH20DS-01-04-04	Japan SMC	2
Electric elements	Japan Omron	Japan Omron	many
Optical fiber	GTE6-N1212	Germany SICK	1
Main Motor	CH-1500-10S 1.5KW	Taiwan	1
Sensor	E3Z-D61	Japan Omron	1
