Automatic Nail Making Machine
- 2000.00 set
| Supply Ability: | 80 Set/Sets per Month; | Model Number: | Z94-5C; |
| Weight of nail making machine: | 2500kg; | Packaging Detail: | Automatic nail making machine will be packed in wooden case.; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Output: | 200pcs/min; |
| Size of nail making machine: | 2800 x 1800 x 1800mm; | Min diameter of nail making machine: | 3.7mm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Place of Origin: | Jiangsu China; |
| Min length of nail making machine: | 80mm; | Port: | Shanghai; |
| Model of nail making machine: | Z94-5C; | Guarantee: | One year; |
| Delivery Detail: | 20 working days after receiving payment; | Max length of nail making machine: | 150mm; |
| Motor power: | 5.5kW; | Max diameter of nail making machine: | 5.5mm; |
| Brand Name: | Zhenhuan; |

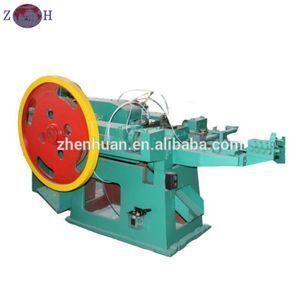

Automatic Nail Making Machine

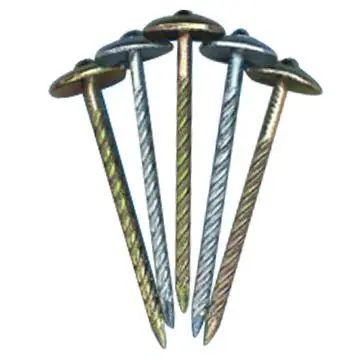

Automatic nail making machine is in high speed and low noise. Automatic Nail Making Machine adopts plunger type structure so as to ensure the features such as high speed , Low noise and less impact . Especially , automatic nail making machine can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
Nail making machine | Nail making machine | Nail making machine | Nail making machine | Nail making machine
Features of automatic nail making machine
1. This automatic nail making machine can feed the materails automatically
2. This automatic nail making machine is with high speed, low noise and less impact
3. All main parts of automatic nail making machine are with high quality steel
4. Finished product made by this automatic nail making machine will be sharp and symmetrical.
Technical data of automatic nail making machine
Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C | Z94-5.5C | Z94-6A |
Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.0 |
Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.1 |
Max length | mm | 100 | 75 | 50 | 25 | 150 | 180 |
Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
Desiged output | Pcs/min | 260 | 280 | 300 | 450 | 220 | 220 |
Motor power | kw | 4 | 3 | 2.2 | 1.5 | 5.5 | 11 |
Weight | kg | 1900 | 1200 | 950 | 750 | 2500 | 6000
|
Please contact us for more information of automatic nail making machine.
Contact: Ms. Cherie Mao
Tel: 0086 513 8762 8369
Fax: 0086 513 8763 5890
Mobile: 0086 13485105931 (whatsapp)
Skype: lyuexuanmao
Process line to produce nails:
1. Wire drawing machine -- to form the exact wire diameter to make nails as required
2. Automatic nail cold heading machine -- to make nails
3. Automatic naile thread rolling machine-- for special nails
4. Polishing machine -- to polish finished nails

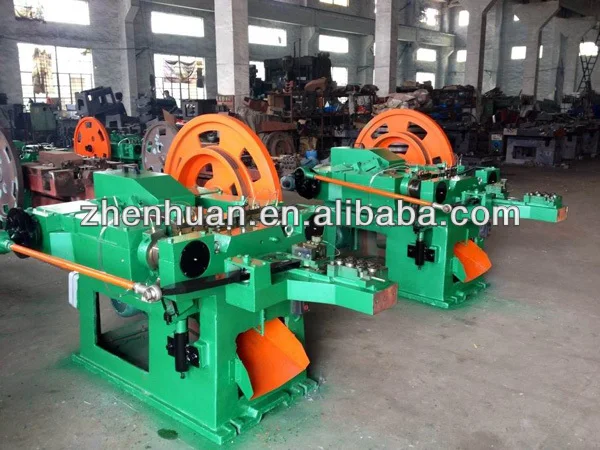

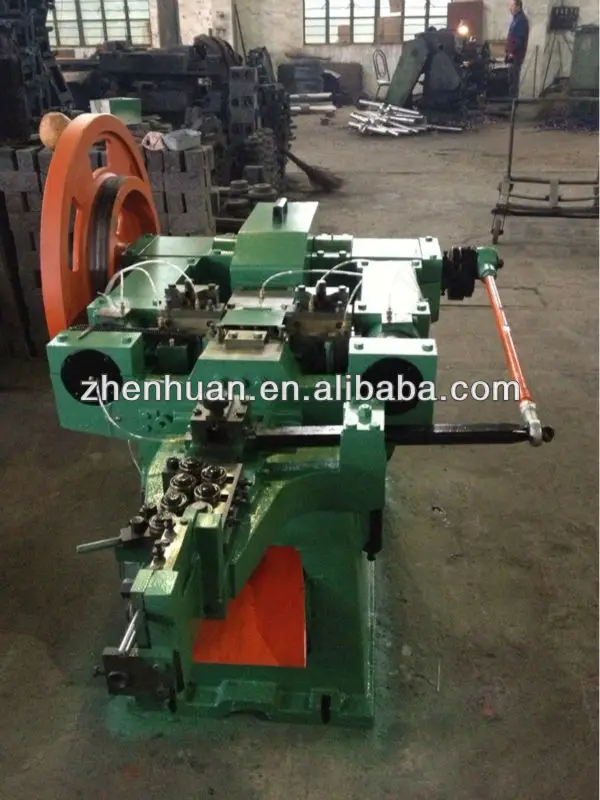

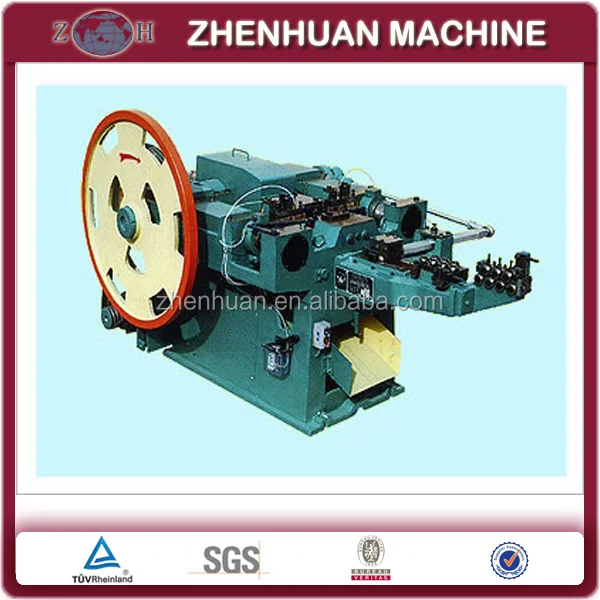

Photos of automatic nail making machine
