Wooden peg automatic ordinary low noise nail making machine

Supplier: Anping Wanzhong Wire Mesh Products Co., Ltd.
Region: Hebei, China
Contact: Mr Andy Lee
Price: $1825.00 / 1 - 1 sets
$1800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Name:	Ordinary nail making machine	Certification:	ISO and CE
Main selling point:	competitive price	Model:	Z94-1C
Packaging Details:	Wooden case, wooden pallet or customized 1825usd is 1C price	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
brand:	Wanzhong	Weight (kg):	800kg
Raw materials:	Low carbon steel wire	application:	Production of ordinary steel nails
Warranty:	1 year	Applicable industries:	Building Materials Stores, Manufacturing Plants, Farms, Retail, Construction Engineering, Energy and Mining, Nail Making Machines
place of origin; place of origin:	Hebei china	Supply capacity:	100 sets of nail making machines per month
Marketing Type:	New Products 2020	Power (kW):	1.5
Health status:	new	Voltage:	220V/380V/415V/440V
Nail wire diameter:	0.8-2.0mm	speed:	500-550 pieces/min
Mechanical test report:	if	Packaging Preview:
Motor Power:	1.5kW	Core Components Warranty:	1 year
Nail length:	10-25mm	Video external inspection:	if
port:	Tianjin port or customized	Core components:	motor
Showroom location:	Egypt, Vietnam, Philippines, Brazil, Peru, Indonesia, India, Mexico, Kenya, Chile, United Arab Emirates, Algeria, Kazakhstan, Uzbekistan	Production capacity:	100 sets

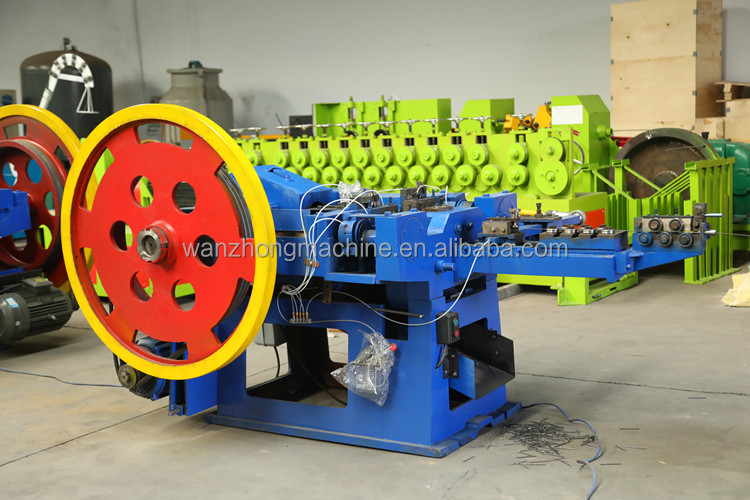

Wooden peg automatic ordinary low noise nail making machine

Product Description

The ordinary wire nailing machine adopts the plunger type structure, which ensures its high working speed, low noise and low impact characteristics.

Both scrap wire steel and new wire steel can be used as materials for ordinary wire nailers.

The main technical parameters:

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5C


maximum. diameter nails	2.0mm	2.8mm	3.2mm	4.2mm	5.0mm
minute. diameter nails	0.8mm	1.2mm	1.8mm	2.5mm	2.8mm
maximum. nail length	25mm	50mm	85mm	105mm	127mm
minute. nail length	10mm	16mm	30mm	50mm	50mm
Motor Power	1.5kW	2.2kW	3kW	5.5kW	7.5kW
Nail making speed	500-550 pieces/min	360-400 pieces/min	280-300 pieces/min	200-240/min	170-180/min
LWH(mm)	13009001100	170010001200	210012001300	240015001400	270015501450
weight	0.6 tons	0.8 tons	1.1 tons	1.7 tons	2.0 tons

Features and Benefits

The new machine adopts plunger and oil pipe lubrication structure, which has high working speed, low noise and small impact. It has the characteristics of advanced design, compact structure and beautiful appearance. The load of the whole machine is small, and the operation is stable and reliable. Automatic refueling system, using arc design, strength and long life.
