Z94 Series High Speed ​​Automatic Nail Making Machine Supplier

Product details
payment terms:L/C,T/T,Western UnionRaw materials:Low carbon steel wire
Applicable industries:Building material stores, mechanical repair shops, manufacturing plants, construction worksNail machine nail length:0.4-7.0 inches
Power (kW):2.2After-sales service provided:Engineers can go overseas to service machinery, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical support
Showroom location:not anyProduction capacity:150-380 pieces/min
Nail maker diameter nails:1.2-6.0mmMain selling point:easy to operate
Warranty:1 yearSupply capacity:Annual output of 1000 sets of custom nail machines
Core Components Warranty:1 yearplace of origin; place of origin:Jiangsu, China
Packaging Preview:After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
Packaging Details:Custom manicure machine packed in wooden box.Mechanical test report:if
Core components:PLC, Gearbox, Motor, Gear, PumpWeight (kg):2300 kg
Health status:newLocal service location:not any
port:ShanghaiNail making machine weight:1200-6500kg
brand:CANDID Nail MachineMarketing Type:normal product
Nail making machine capacity:150-380 pieces/min.Video external inspection:if
Nail making machine power:2.2-11kW
Product Description

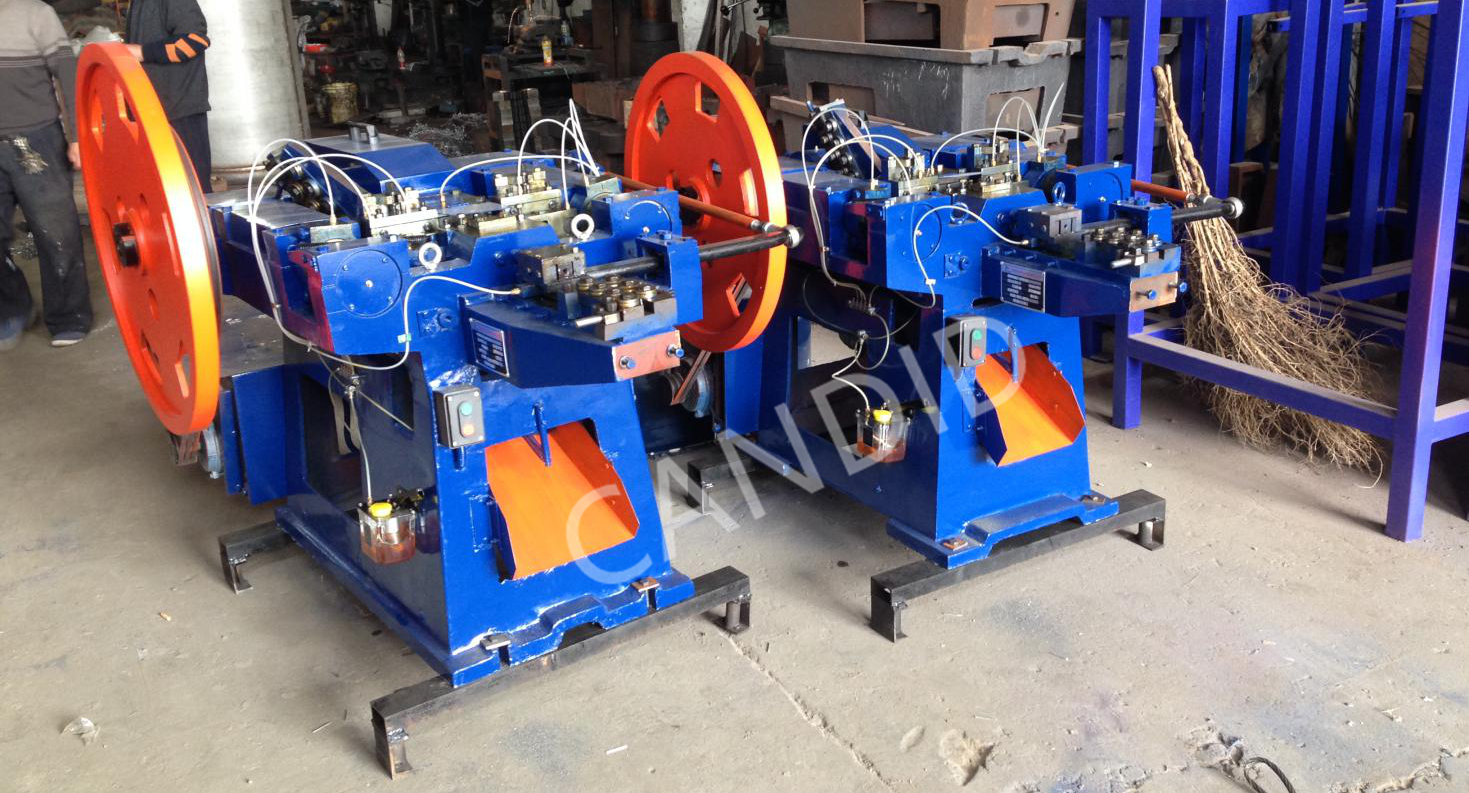

Z94 Series High Speed ​​Automatic Nail Making Machine Supplier



The main technical parameters



Model



thing



Z94-1.6NC



Z94-2.8NC



Z94-3.4NC



Z94-4.5NC



Z94-5NC



Z94-6NB

Nail diameter range.

0.9-1.6mm

1.2-2.8mm

1.8-3.4mm

2.8-4.5mm

3.0-5.5mm

4.1-6.0mm

nail length range

9-25mm

16-50mm

30-70mm

50-105mm

70-150mm

100-180mm

output

450/min

350/min

310/min

260/min

200/min

160/min

Motor Power

1.5kW

2.2kW

3kW

4kW

5.5kW

11kW

weight

500kg

900 kg

1200kg

1800 kg

2000kg

6500kg

Dimensions (mm)

1200*900*900

1700*1200*1200

2000*1250*1250

2350*1500*1350

2700*1500*1400

3600*2050*2140



productprogramme

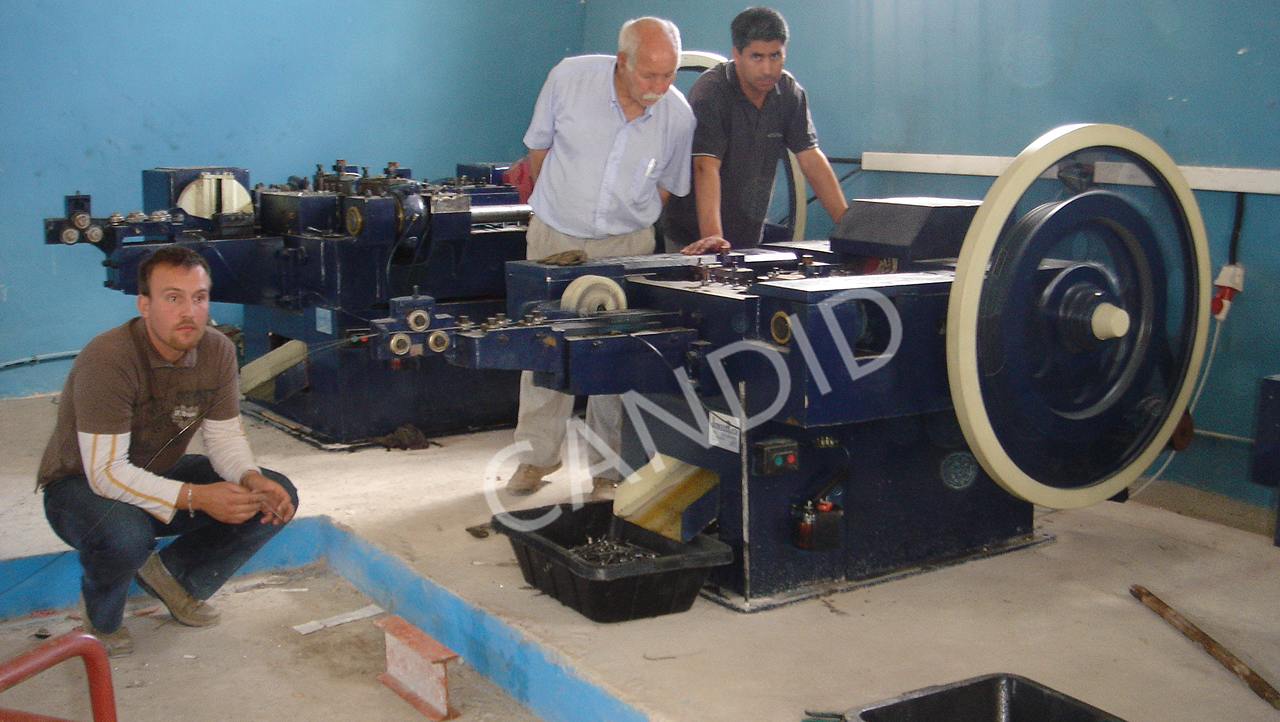

our client

4 units exported to Algeria in 2014

8 units exported to Nigeria in 2018

4 sets exported to El Salvador in 2018

2 sets exported to Côte d'Ivoire in 2019
