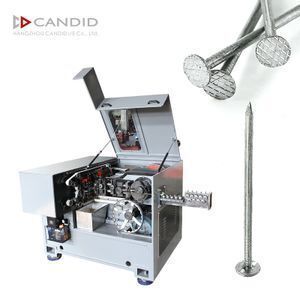

CANDID Automatic High Speed Nail Making Machine
- 19800.00 set
| Length of Nail: | 0.4-4.0 inch; | Showroom Location: | None; |
| Video outgoing-inspection: | Provided; | Condition: | New; |
| Power (kW): | 5; | Warranty: | 1 Year; |
| Production Capacity: | 150-380 pcs/min.; | Weight: | 2200-3100 kg; |
| Local Service Location: | None; | Color: | Customizable; |
| Package Preview: | ; | Port: | Shanghai; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; | Warranty of core components: | 1 Year; |
| Supply Ability: | 1000 Set/Sets per Year wire nail making machine factory china; | Raw material: | Low Carbon Steel Wire; |
| Dia. of Nail: | 1.1-4.1 mm; | MOQ: | 1 set; |
| Key Selling Points: | Automatic; | Marketing Type: | Hot Product 2019; |
| Weight (KG): | 2000 KG; | Capacity: | 800 pcs/min.; |
| Core Components: | PLC,Gearbox,Gear,Pump; | Brand Name: | CANDID; |
| Payment Terms: | L/C,T/T,Western Union; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Packaging Detail: | wire nail making machine factory china Packed by Wooden cases.; |
| Machinery Test Report: | Provided; | Certification: | CE Certificate; |
| Place of Origin: | China; | Power: | 5-10 kw; |
Low noise high speed nail making machine price
Main Technical Parameter
|
Technical Data |
||
|
Parameters |
DH-GS90 |
DH-GS150 |
|
Nail Diameter |
2.0-3.6mm |
2.4-5.0mm |
|
Nail Length |
35-90mm |
70-150mm |
|
Speed |
760pcs/min |
520pcs/min-700pcs/min |
|
Power |
7.0kw |
14.0kw |
|
External Dimension |
1850*1200*1150mm |
2300*1500*1150mm |
|
Control Cabinet Dimension |
400*600*800mm |
400*600*800mm |
|
Weight |
2800kg |
4000kg |
Product Show
DH-GS90,DH-GS150 high speed automatic nail machine is applied to requirements for making nails with large batch, high precision and high production capacity.
High speed automatic nail machine is featured by outstanding safety performance, stable quality, high reliability, convenient use and maintenance. PLC control and equipped with full-range optically controlled wire disorder shutdown system.
High speed automatic nail machine use fewer manpower and one skilled operator is able to operate three sets DH-GS90,DH-GS150 nail machine .
