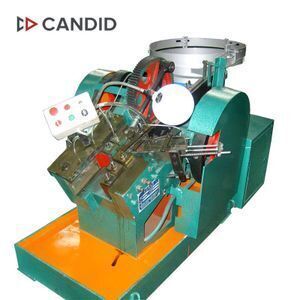

High Quality Steel Screw Making Machine
-
Supplier: Hangzhou Candid I/E Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr JiangWei Zheng -
Price: $4500.00 /set -
Min. Order: 1 set
| Application: | Making Screw; | Payment Terms: | L/C,T/T,Western Union; |
| Package: | Wooden Case; | Machinery Test Report: | Provided; |
| Max Screw Lengh: | 130mm; | Condition: | New; |
| Port: | China; | Brand Name: | CANDID; |
| Model: | Z12 series and A25 series; | Video outgoing-inspection: | Provided; |
| Core Components: | PLC,Engine,Gearbox,Motor,Gear,Pump; | Dimension(L*W*H): | 1.5 x 0.7 x 1 m; |
| Packaging Detail: | Packing in plastic film and then in wooden case; | Max Screw Diameter: | 12mm; |
| Certification: | CE; | Applicable Industries: | Manufacturing Plant,Construction works ; |
| Type: | Fully Automatic; | Warranty of core components: | 1 Year; |
| Key Selling Points: | High Productivity; | Weight: | 2000kg; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Supply Ability: | 10 Set/Sets per Month; |
| Color: | Customized; | Place of Origin: | Jiangsu China; |
| Power: | 1500-18500W; | Production Capacity: | 50-120pcs/min; |
| Marketing Type: | New Product 2020; | Voltage: | 380V; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Showroom Location: | None; |
| Max Thread Length: | 100mm; | Warranty: | 1 Year; |
| Local Service Location: | None; |
High speed Automatic Bolt and Nut Making Machine
To produce bolt, two machines are necessary--Cold-heading Machine and Thread Rolling Machine:
1. Cold-heading Machine
To cut raw material wire according to length of finished bolt and form bolt head.
Main Technical Parameter:
|
Model No |
Dia. of Nail(mm) |
Length of Nail(mm) |
|
Z12-3 |
1.2-3 |
2-16 |
|
Z12-4 |
2-4 |
6-48 |
|
Z12-5 |
2-5 |
6-60 |
|
Z12-8 |
4-8 |
10-100 |
|
Z12-10 |
6-10 |
20-120 |
|
Z12-16 |
10-16 |
25-150 |
2. Thread Rolling Machine
To roll thread on blank shank of bolt after being cold-headed.
Main Technical Parameter:
|
Model |
Dia. of Threading(mm) |
Length of Threading(mm) |
Length of Screw(mm) |
|
Z25-4 |
2-4 |
6-25 |
6-25 |
|
Z25-5 |
2-5 |
6-50 |
6-50 |
|
Z25-6 |
2-6 |
6-60 |
6-80 |
|
Z25-6L |
2-6 |
6-60 |
6-100 |
Besides the above two machines, another machine is optional---Edge Trimming Machine
3. Edge Trimming Machine
To make Hex. head after being cold headed.
-
