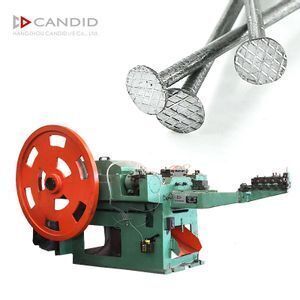

CANDID Automatic Iron Pin Wire Nail Making Machine Price

Supplier: Hangzhou Candid I/E Co., Ltd.
Region: Zhejiang, China
Contact: Mr JiangWei Zheng
Price: $3290.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dia. of Nail:	1.2-2.8 mm;	Place of Origin:	China;
Key Selling Points:	Easy to Operate;	Color:	Blue;
Machinery Test Report:	Provided;	Core Components:	PLC,Gearbox,Motor,Gear,Pump;
Packaging Detail:	wrapped with plastic film, in plywooden case;	Brand Name:	CANDID;
Capacity:	330pcs/min.;	Showroom Location:	None;
Production Capacity:	330pcs/min;	Power (kW):	2.2;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	Dimension:	170012001200mm;
Marketing Type:	Ordinary Product;	Condition:	New;
Weight:	900 kg;	Payment Terms:	L/C,T/T,Western Union;
Length of Nail:	16-50mm;	Supply Ability:	20 Set/Sets per Month;
Warranty:	1 Year;	Voltage:	380V 50Hz 3Phase/Customized;
Power:	2.2Kw;	Warranty of core components:	1 Year;
Package Preview:	;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Weight (KG):	1500 KG;	Local Service Location:	None;
Raw material:	Low Carbon Steel Wire;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Video outgoing-inspection:	Provided;	Port:	Shanghai;

Automatic Z94-3.4NC wire nail making machine manufacturer with high quality

Main Technical Parameter

Model Item	Z94-1.6NC	Z94-2.8NC	Z94-3.4NC	Z94-4.5NC	Z94-5NC	Z94-6NB
Range of nail Dia.	0.9-1.6mm	1.2-2.8mm	1.8-3.4mm	2.8-4.5mm	3.0-5.5mm	4.1-6.0mm
Range of nail Length	9-25mm	16-50mm	30-70mm	50-105mm	70-150mm	100-180mm
Output	450pcs/min	350pcs/min	310 pcs/min	260pcs/min	200pcs/min	160pcs/min
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Weight	500kg	900 kg	1200kg	1800 kg	2000kg	6500kg
Dimension(mm)	1200900900	170012001200	200012501250	235015001350	270015001400	360020502140

Product Show

The new generation of Z94 series high efficient, low noise with super performance automatic nail making machine is mainly used for manufacturing steel nails. The machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail, V-nail, corrugated plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation. The manufactured nails can be extensively used in industry, building, repairing and etc.

Wire Nail making process flow
