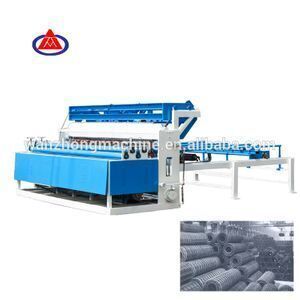

High quality Automatic welded roll wire mesh welding machine

Supplier: Anping Wanzhong Wire Mesh Products Co., Ltd.
Region: Hebei, China
Contact: Mr Andy Lee
Price: $21700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated Power:	125KWA*6 (water cooling system);	Package Type:	1.main machine and accessory equipment will be packed with sketch film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not move in the container.;
Welding Wire Diameter:	3.0-6.0(mm);	Max Mesh Width:	2500mm;
Brand Name:	Wanzhong;	Production Capacity:	40sets;
Gross weight per batch:	3,500 KG;	Number of Electrodes:	48;
Power (kW):	4;	Weight (KG):	3500;
Machine Type:	Wire Mesh Welding Machine;	Package size per batch:	520X320X180 cm;
Warranty:	1 YEAR;	Welding Speed:	0-60times/min;
Model Number:	WZ-2500A mesh welding machine;	Place of Origin:	Hebei China;
Package Preview:	https://sc01.alicdn.com/kf/H94d40bd4f9e8407d8c9029e20869ba27O.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Hb5d295c751334b879bbf3685d76a8cc7K.jpg_640x640.jpg;	After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Cross Wire Space:	50-200mm;	Rated Voltage:	415V,50Hz,Three phase;440V,60Hz,Three phase;
Selling Units:	Multiple of 1;	Key Selling Points:	Easy to Operate;
Wire Diameter (mm):	3 - 6 mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining,Portable Wire Mesh Welding Machine Price;	Line Wire Space:	50-200mm;
Condition:	New;	Finished Products:	roll mesh and plate mesh;

High quality Automatic welded roll wire mesh welding

Product Description

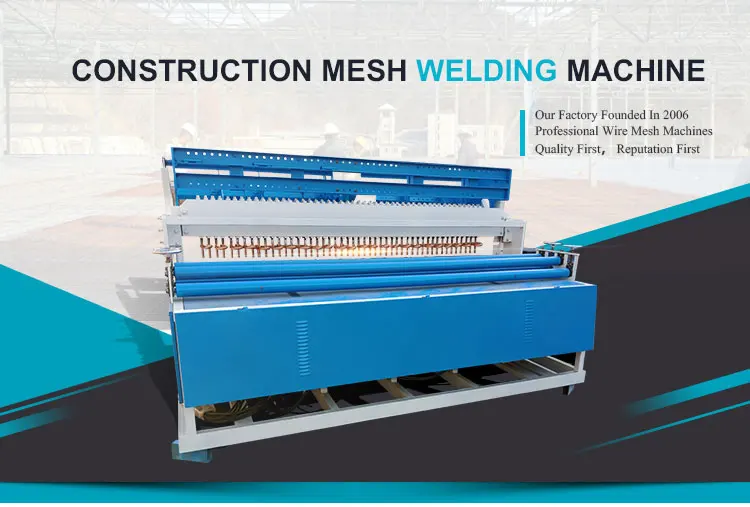

construction mesh welding machine II

Function features and advantages
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
5. The finished products can be roll mesh or panel.

Item	WZ1200	WZ1600	WZ2100	WZ2500
Item	(2.0-5.0mm)	(3.0-6.0mm)	(3.0-6.0mm)	(3.0-6.0mm)
Number of Electrodes	24	32	40	48
Max Mesh Width	1200mm	1600mm	2100mm	2500mm
Wire Diameter	2.0-5.0mm	3.0-6.0mm	3.0-6.0mm	3.0-6.0mm
Cross Wire Space	50-200mm	50-200mm	50-200mm	50-200mm
Line Wire Space	50-200mm	50-200mm	50-200mm	50-200mm
Rated Power	125KWA*3	125KWA*4	125KWA*5	125KWA*6
Welding Speed	40-60times/min	40-60times/min	40-60times/min	40-60times/min
Control System	PLC or SCM	PLC or SCM	PLC or SCM	PLC or SCM
