Automatic Diamond Wire Mesh Chain Link Fence Mesh Making Machine Equipment Manufacturing Price

Supplier: Hebei Greatest Import & Export Trading Co., Ltd.
Region: Hebei, China
Contact: Ms Greatest Zhang
Price: $9800.00 / 1 - 1 sets
$9600.00 / 2 - 2 sets
$9400.00 / 3 - 3 sets
$9200.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	2100	Mechanical test report:	if
Wire diameter:	1.8-4.5mm	capacity:	25-150 square meters/hour
Grid size:	2525-100100mm	Supply capacity:	10 sets per month
Applicable industries:	Building materials stores, manufacturing plants, construction projects	Key words:	Double Wire Chain Ring Wire Mesh Fence Machine
Showroom location:	not any	product name:	Double Wire Chain Ring Wire Mesh Fence Machine
Packaging Details:	Full container loaded with bare packaging	place of origin; place of origin:	Hebei china
color:	according to your request	Health status:	new
Core components:	Bearings, Gears	Voltage:	380v, 50hz
width:	1-6m	Core Components Warranty:	1 year
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Video external inspection:	if
brand:	sale tax	Type of machine:	Chain Link Fence Making Machine
weight:	2.1 tons	Warranty:	1 year
Marketing Type:	New Products 2020	model:	Double Wire Chain Ring Wire Mesh Fence Machine
type:	Fully automatic	port:	Newport
Power (kW):	5.5	Main selling point:	high accuracy
Wire diameter (mm):	1.8 - 4.5 mm

Automatic Diamond Wire Mesh Chain Link Fence Mesh Making Machine Equipment Manufacturing Price

Product Description

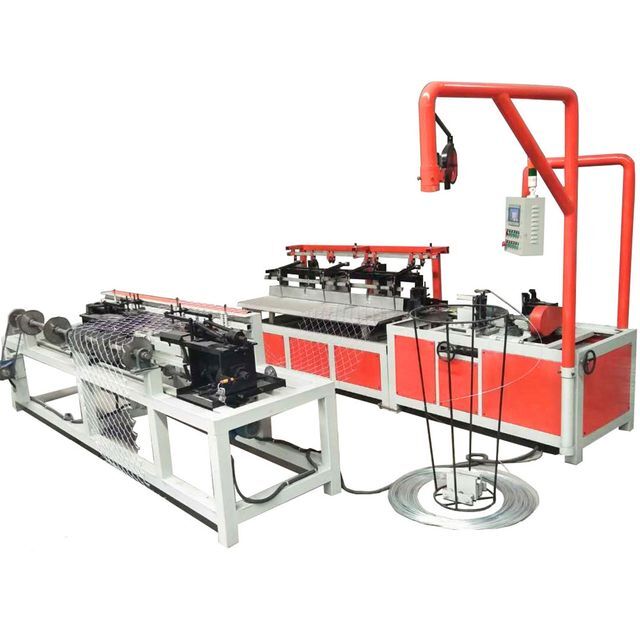

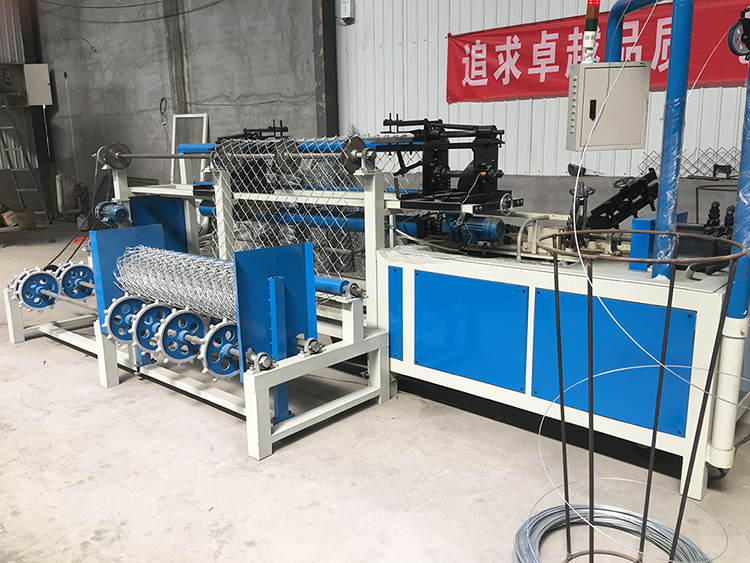

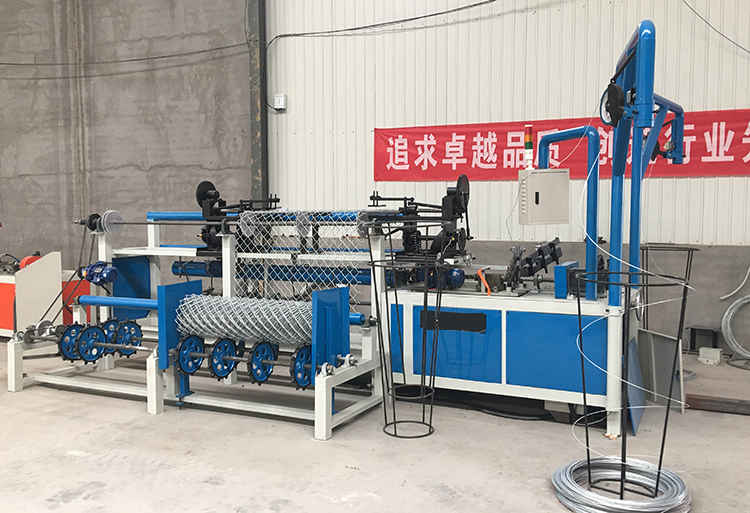

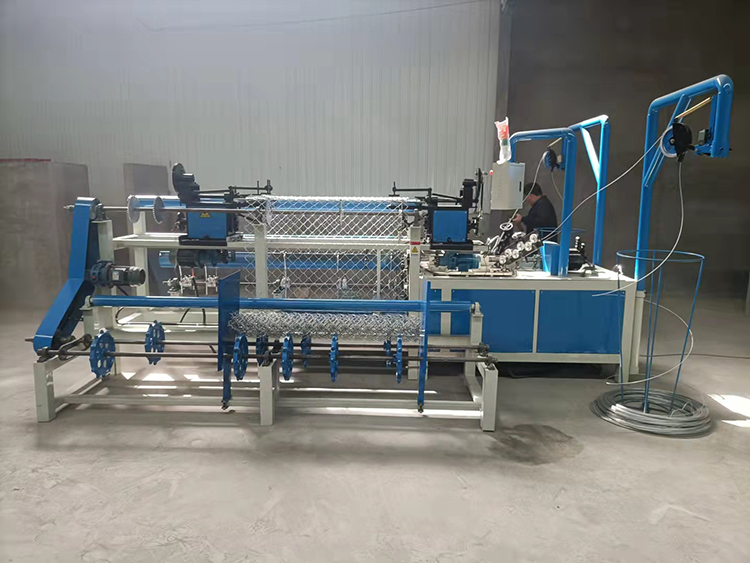

Automatic Double Wire Chain Ring Wire Mesh Fence Machine

The successful development of the automatic double-wire chain link fence machine doubles the production efficiency of the chain link fence machine, but it has higher requirements for the control of wire and automatic weaving speed, and higher requirements for the tension and elasticity of the double wire. The wire must be uniform.
The chain link fence machine is a wire mesh machine that crochets low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire and plastic spray wire into a chain link fence. The mesh mesh is uniform, the surface is smooth and beautiful. , Adjustable net width, adjustable wire diameter, not easy to corrode, long service life, simple weaving, beautiful and practical.

Name	Double wire automatic chain link fence machine
hole size	2525mm to 100100mm
wire diameter	1.8mm-4.5mm
Material	Galvanized wire, black wire, pvc plastic coated wire
width	1m-6m
capacity	25-150m2/h(1-2.5tons per 8hours based on different wire diameter and hole size)
Voltage	380V/220V/260V/440V/415V etc.
motor	5.5kw (servo motor) 2.2kw cutting motor 1.5kw steering knuckle motor 0.75kw rolling motor
mold	One hole one mold
