High Quality Industry SOS Emergency telephone Main Board, VoIP PCB
- 120.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Payment Terms: | L/C,D/P,T/T,Western Union,PayPal; | Call control features: | Flexible dial map, support hot-line; |
| Idle: | 1.5W/ Active:1.8W; | Connection: | RJ45 LAN or WAN Direct Connection; |
| Board Thickness: | 1.6mm; | Surface Finishing: | Through hole plug oil; |
| Power Input: | 12-24V DC; | Brand Name: | J&R; |
| Min. Line Spacing: | 0.12mm; | Min. Line Width: | 0.15mm; |
| Voice Features: | Support SIP 2.0 (RFC3261)(TR069); | Copper Thickness: | 1 ounce; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Codec: | G.711A/u, G.7231 high/low, G.729, G.722; |
| Min. Hole Size: | 0.25mm; | Port: | Shenzhen; |
| Place of Origin: | Guangdong China; | Packaging Detail: | Pearl Cotton, Carton; |
| Base Material: | FR-4; | Model Number: | JR-IP-01; |
Product Description

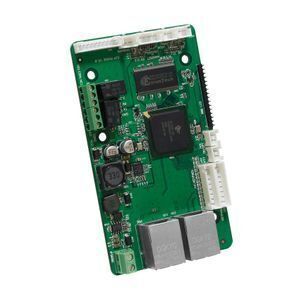

High Quality Industry SOS Emergency telephone Main Board, VoIP PCB
12-24V DC powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
Connection: RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)
TECHNICAL SPECIFICATIONS
High Quality Industry SOS Emergency telephone Main Board, VoIP PCB
Power Input:12-24V DC
Port: WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX
LAN: 10/100Base- T RJ-45 for PC, Auto MDIX
Power Consumption:
Idle:1.5W/ Active:1.8W
Voice Features:Support SIP 2.0 (RFC3261)(TR069)
Codec: G.711A/u, G.7231 high/low, G.729, G.722
Echo cancellation: Support G.168 and hand-free can support 96ms
Supports full duplex
SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server
DTMF:SIP info, DTMF Relay,RFC2833
Call control features: Flexible dial map, support hot-line
Network Features
WAN/LAN: support Bridge mode
Support static IP address
Support DHCP get IP on WAN port
Support VLAN
Support web config
Applications
High Quality Industry SOS Emergency telephone Main Board, VoIP PCB
Suitable for railway applications, for tunnels, for highways, for marine applications, for underground mining, retail banking, for clean rooms, firefighter, taxi, industrial.
